WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-69

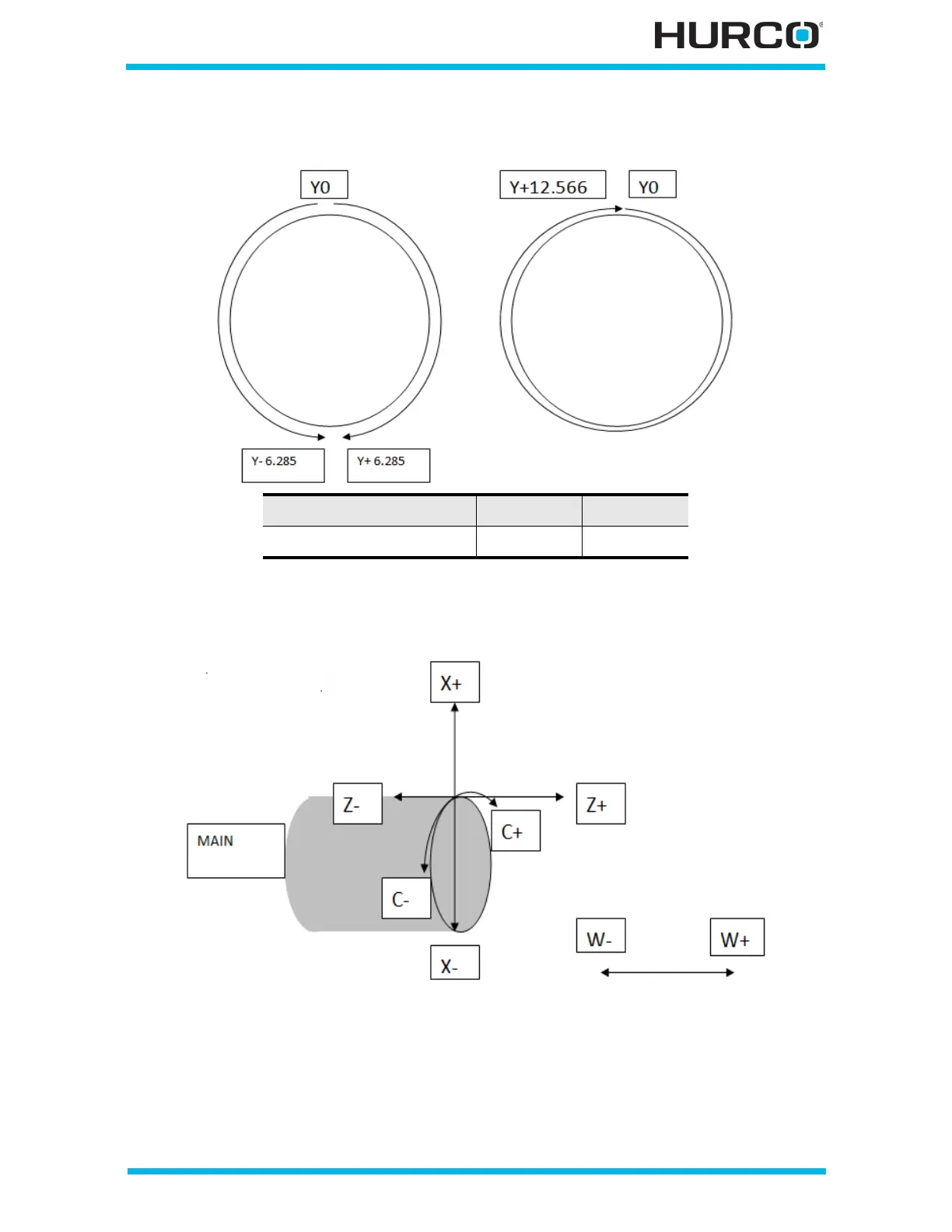

Y-Axis Coordinate System - Radial Surface of the Part without Linear Y
Figure 2–57. Y-Axis Coordinate System - Radial Surface of the Part without Linear Y
Live Tool Mode Milling with Polar Coordinates
Figure 2–58. Live Tool Mode Milling with Polar Coordinates
Please refer to Radial Lines and Arcs, on page 2 - 71, Radial Circle, on page 2 - 89, Radial
Frame, on page 2 - 95, Radial Slot, on page 2 - 102, or Radial Lettering, on page 2 - 110
for information about the Geometry tab screen for the different types of Radial Milling.
For information about Radial Holes, please refer to Radial Holes, on page 2 - 114.
Cylinder Diameter 101.6 mm 4 in
Cylinder Circumference 319.2 mm 12.566 in
