WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-27

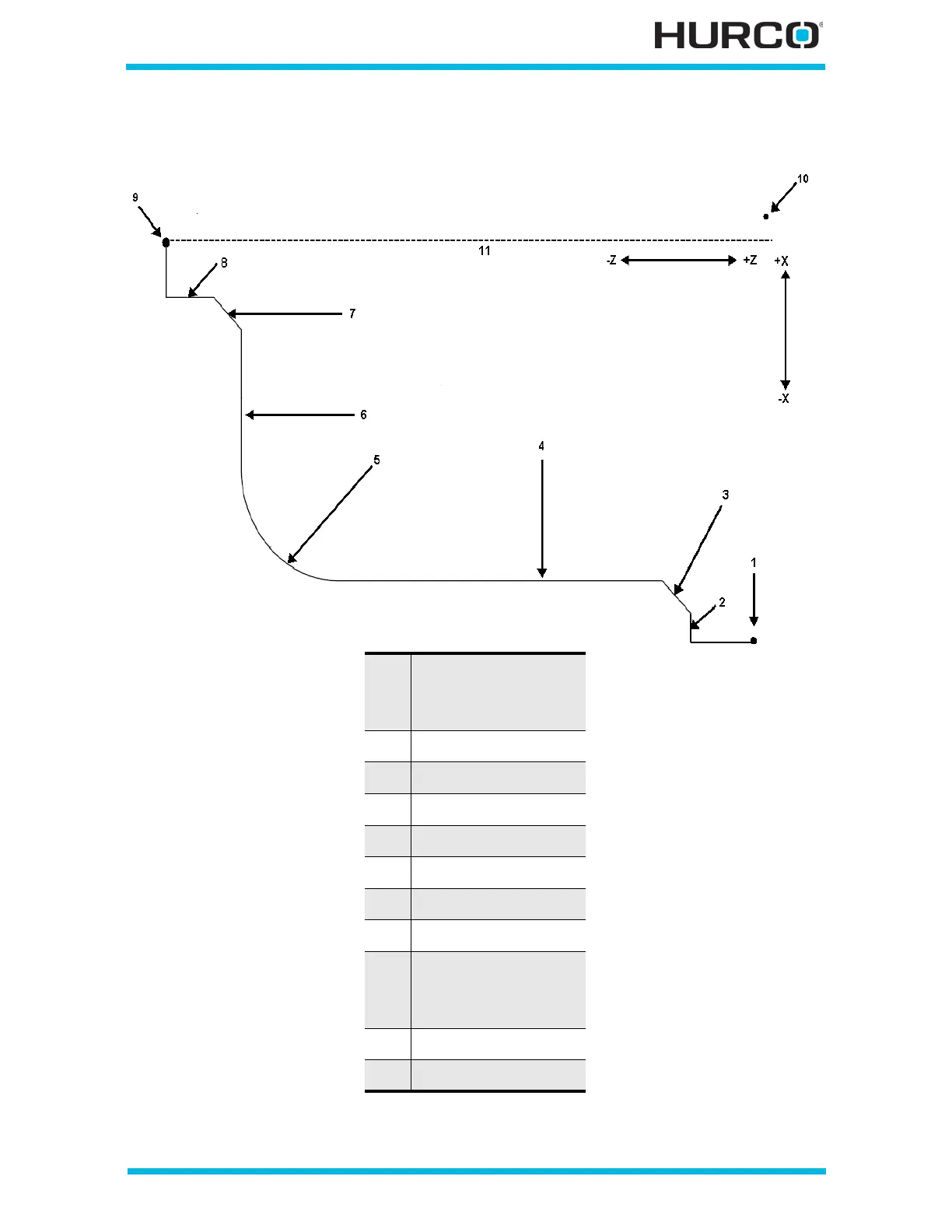

The following figure illustrates elements for an OD operation:
Figure 2–17. Sample OD Operation Elements
1 Turn
First Element
start point
2 Face
3 Chamfer
4 Turn
5 Blend Arc
6 Face
7 Chamfer
8 Turn
9 Face
Last Element
end point
10 X, Z Rapid Position
11 Stock Boundary
