3 - 32 Sample P art Program v546CO WinMax Lathe Conversational Part Programming
Enter 0.025 in the Chamfer field (the length along the Z axis). The Angle field defaults to
45. Keep this value.
•The End and Start locations will be calculated by the control when the
Element following the Chamfer has been programmed.
•The Finish fields are inactive because Turn Rough is selected in the Profile
Start Process tab.

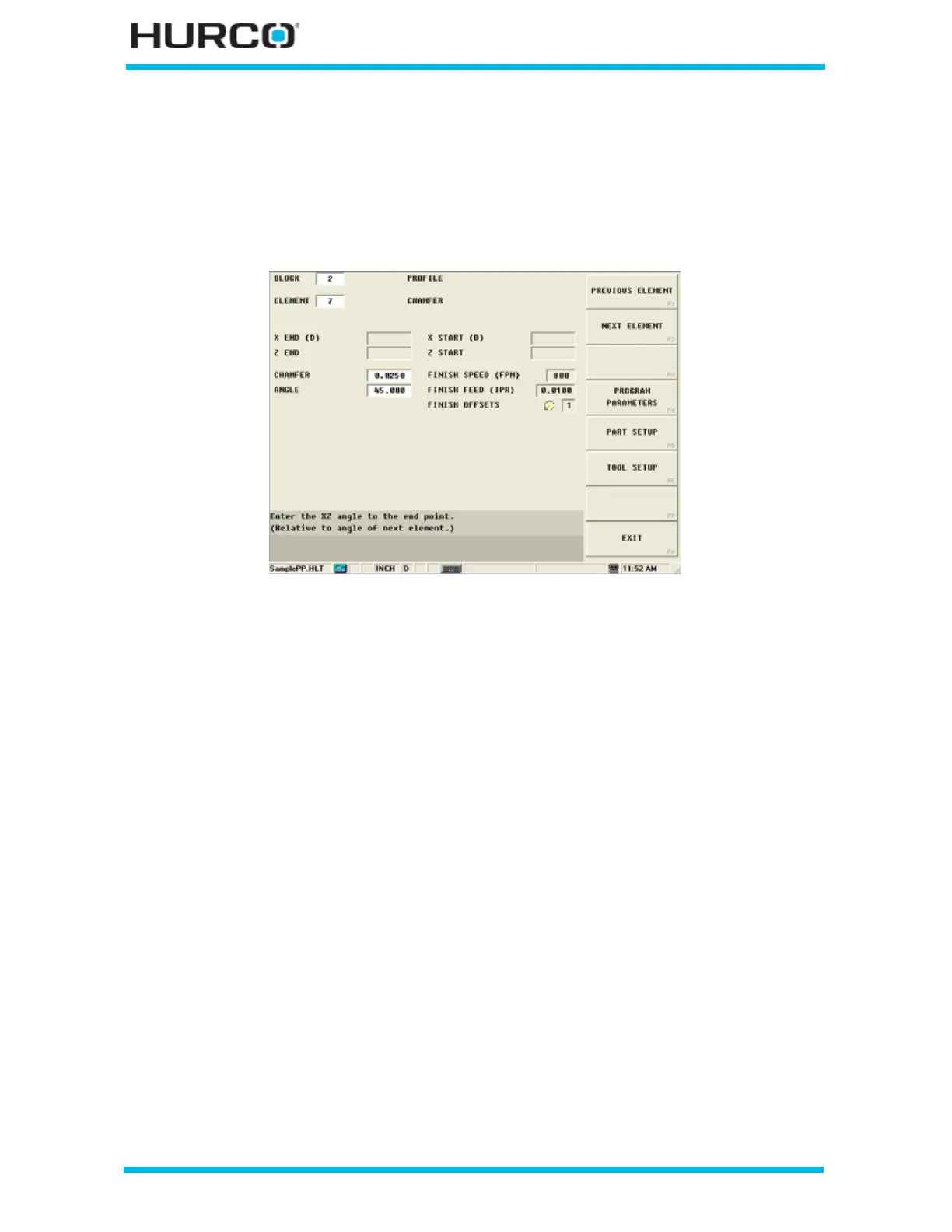

Figure 3–46. Profile Chamfer Element Screen with Chamfer value
