2 - 122 Conversational Part Programming v546CO WinMax Lathe Conversational Part Programming
• USE C CLAMP checkbox—engages the C Axis Clamp during the Hole
operation when this checkbox is selected.
• CYLINDER DIAMETER—defines the diameter of the cylinder.
• Z—defines the Z offset value for the location.
• C (DEG)—defines the C offset value in degrees for the location, measured
counterclockwise from the home position.
• RETURN LEVEL—identifies the level to which the tool should retract at the
end of the drill cycle. R Plane is the default.
• I PLANE—returns to the coordinate specified in the X/Z Start field.
• R PLANE—returns to the coordinate specified in the R Plane field.
When Linear is selected in the COORDINATES field, these fields appear:

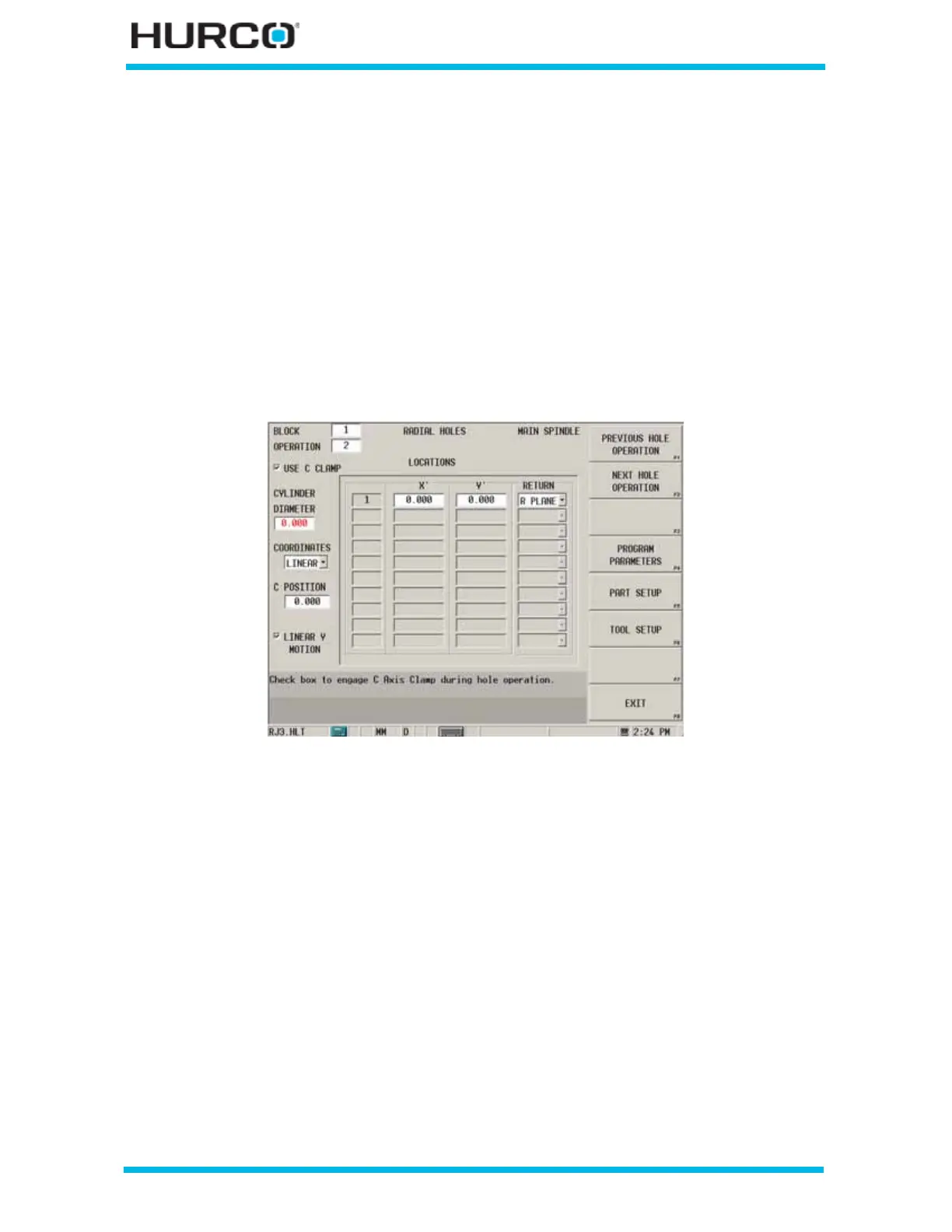

Figure 2–102. Live-Tooling Radial Locations screen: Linear Coordinates
• USE C CLAMP checkbox—engages the C Axis Clamp during the Hole
operation when this checkbox is selected.
• CYLINDER DIAMETER—defines the diameter of the cylinder.
• X’—defines the X’ offset value for the location.
• Y’—defines the Y’ offset value for the location.
• RETURN LEVEL—identifies the level to which the tool should retract at the
end of the drill cycle. R Plane is the default.
• I PLANE—returns to the coordinate specified in the X/Z Start field.
• R PLANE—returns to the coordinate specified in the R Plane field.
• C POSITION—defines the angle to position the C axis for the first segment
of the contour. This field appears when the Linear Y Motion checkbox is
selected. This field is available with TMX MY and TMX MYS series machines.
