WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-177
Linear Style
• X/R REFERENCE—indicates the X/R coordinate.
• Y/C (Deg) REFERENCE—indicates the Y/C (Deg) coordinate.
• WIDTH—defines the width of the text. When the default of 0.0000 is used,
the font and Height calculates the width used with Linear Style.
Circular Style
• X/R CENTER—indicates the R (radius) coordinate.
• Y/C (Deg) CENTER—indicates the R (radius) coordinate.
• WIDTH (Deg)—programs the text as a sweep angle. Enter an angular value
from 0 to 360° when Circular Style is selected.
• DIAMETER—appears when Circular Style is selected. Defines the diameter of
the circle for circular text.
• DIRECTION—defines the direction for circular text.

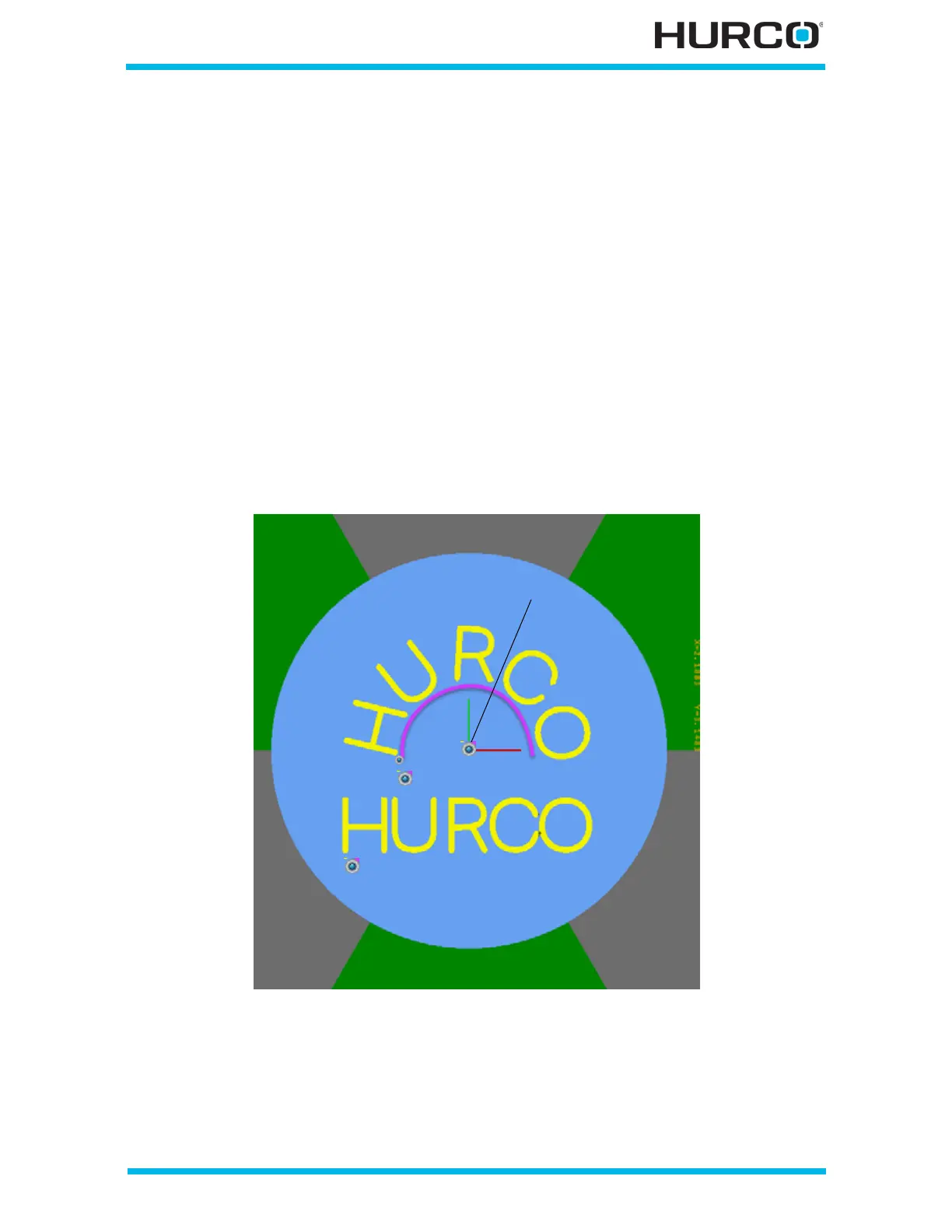

Here is an example showing Axial Lettering with Circular and Linear Reference points.
Figure 2–148. Axial Lettering with Circular and Linear Reference points
Circular Bottom, Start Reference
Center
Linear Bottom, Start Reference
