WinMax Lathe Conversational Part Programming v546CO Sample Part Program 3-23
Enter 1 in the X End (D) field.
• The control calculates and enters values for Length and Angle based on the
Z End value.
•The X Start (D) and Z Start values are carried over from the previous
element’s X END (D) and Z END values.
•The Finish fields are inactive because Turn Rough is selected in the Profile
Start Process tab.

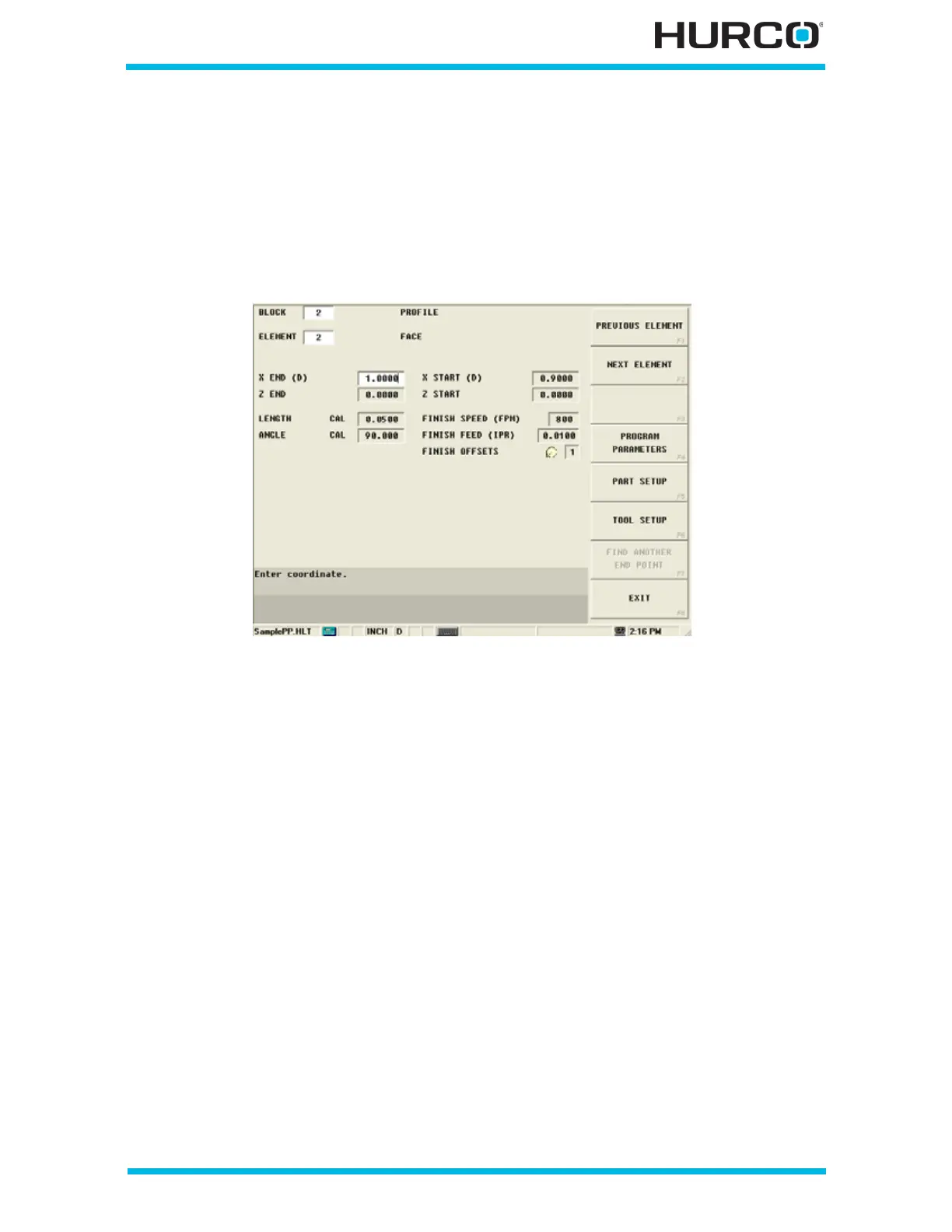

Figure 3–34. Profile Face Element Screen with X End (D) value
