Enter -1 in the Z End field.
• The control calculates and enters values for Length and Angle based on the
Z End value.
•The X Start (D) and Z Start values are carried over from the previous
element’s X END (D) and Z END values.
•The Finish fields are inactive because Turn Rough is selected in the Profile
Start Process tab.

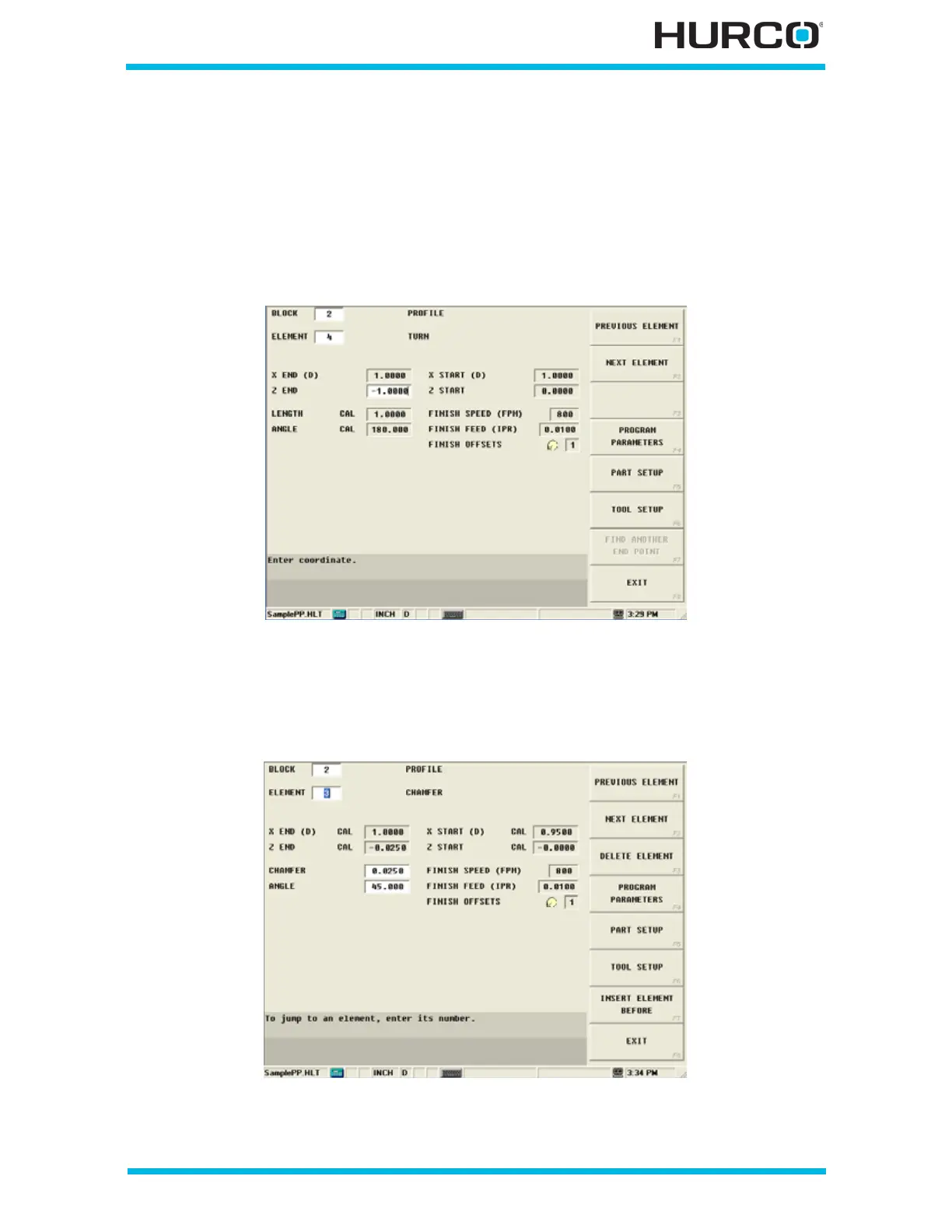

Figure 3–38. Profile Turn Element Screen with Z End value
• The control calculates and enters values for X End (D), Z END, X Start (D),
and Z Start on the Chamfer Element Screen. Select PREVIOUS ELEMENT F1
to view the Chamfer Element Screen.
Figure 3–39. Profile Chamfer Element 3 Screen with control-calculated values
