WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-21
• RETRACT CLEARANCE—identifies the distance that the tool moves away
from the wall, shown as 3 in the figure below, before moving at Rapid to the
start of the next pass. The default is 0.254 mm or 0.010 inch. This field
appears for all rough and finish operations.

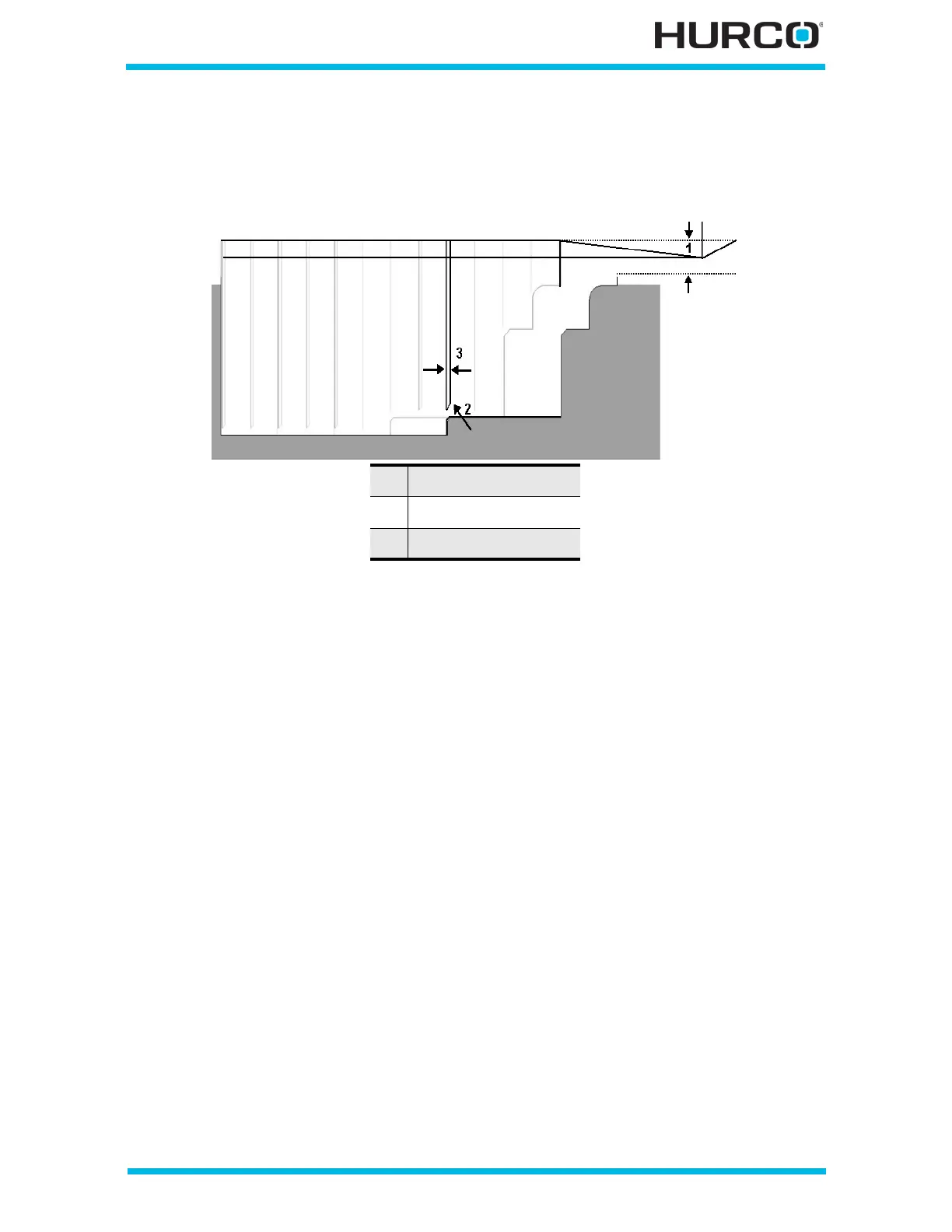

Figure 2–12. Groove Operation Cut Clearance and Retract Clearance example
• OVERRIDE TOLERANCE—overrides the default tolerance, 0.0025 mm or
0.0001 inch, for elements in the current profile when Yes is selected. The
ELEMENT TOLERANCE field is active when Yes is selected.
• ELEMENT TOLERANCE—identifies the amount of adjustment allowed if two
elements of a profile fail to meet or intersect. If this occurs, the elements can
be joined automatically if the required length is within this amount. The
default value is 0.00254 mm (0.0001 in.). The maximum value is 0.0254 mm
(0.001 in.). This field is not available when No is selected in the OVERRIDE
TOLERANCE field.
1 Cut Clearance
2 Retract Angle
3 Retract Clearance
