2 - 50 Conversational Part Programming v546CO WinMax Lathe Conversational Part Programming
• VERTICAL LEAD OUT—defines whether the tool should exit the part
vertically (perpendicular) to the direction of the cut. Select YES or NO. NO is
the default. When YES is selected, the LEAD OUT ANGLE field is inactive.
• LEAD OUT ANGLE—defines the pullout angle that the tool follows in the X
axis to exit the workpiece. This angle is shown as 2 in the following figure;
the tool path is represented with a dotted line.

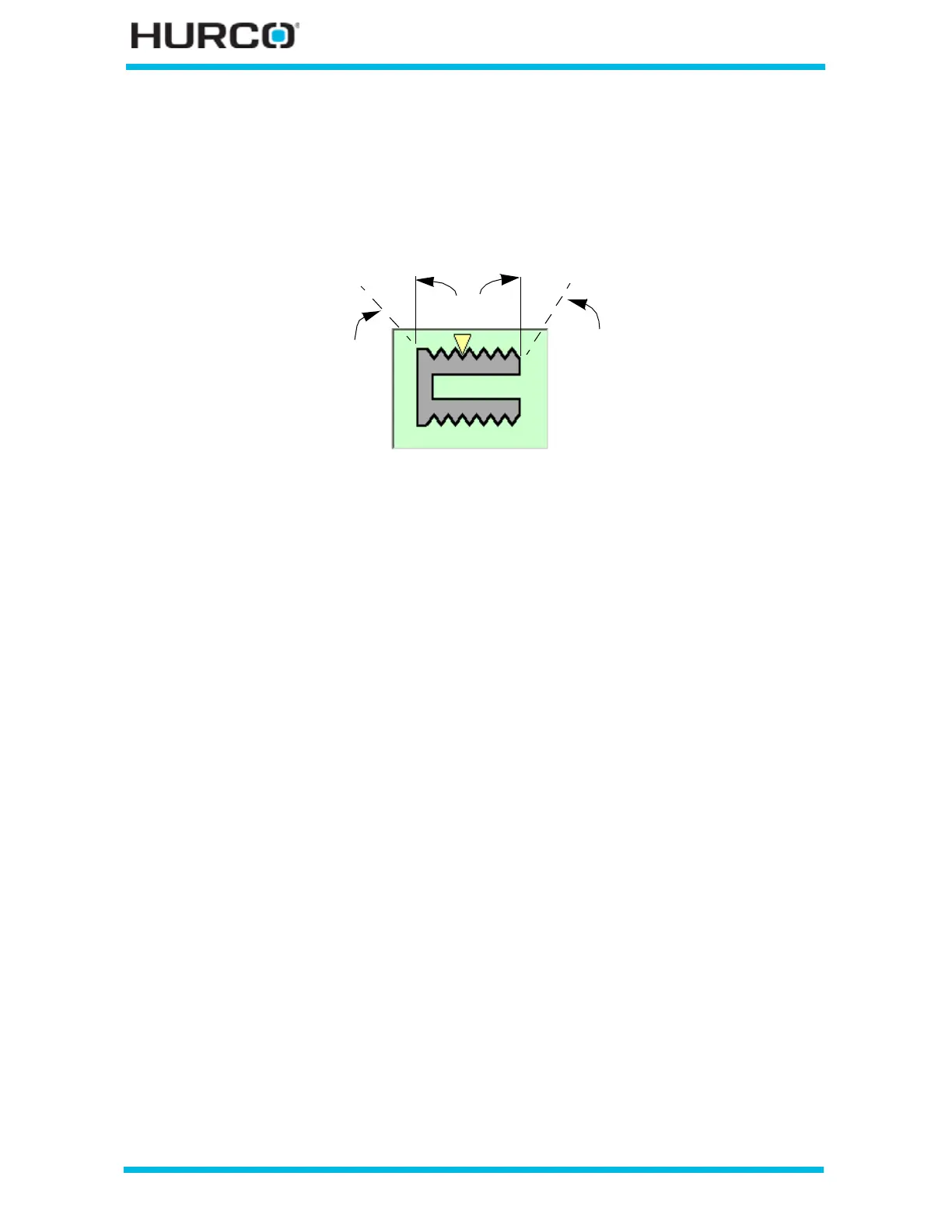

Figure 2–40. Lead In Angle (1) and Lead Out Angle (2)
• SPECIFY START ANGLE—select YES or NO to indicate whether a start angle
is required. When NO is selected, the START ANGLE field is inactive.
• START ANGLE—defines the Start Angle if YES is selected for SPECIFY START
ANGLE. The default is 0°.
• NUMBER OF STARTS—defines the number of starts if multiple starts are
required and NO is selected for SPECIFY START ANGLE.
