8 Maintenance & Service
301-7146 English Rev B 11/02/2011 Operator’s Manual NA 172

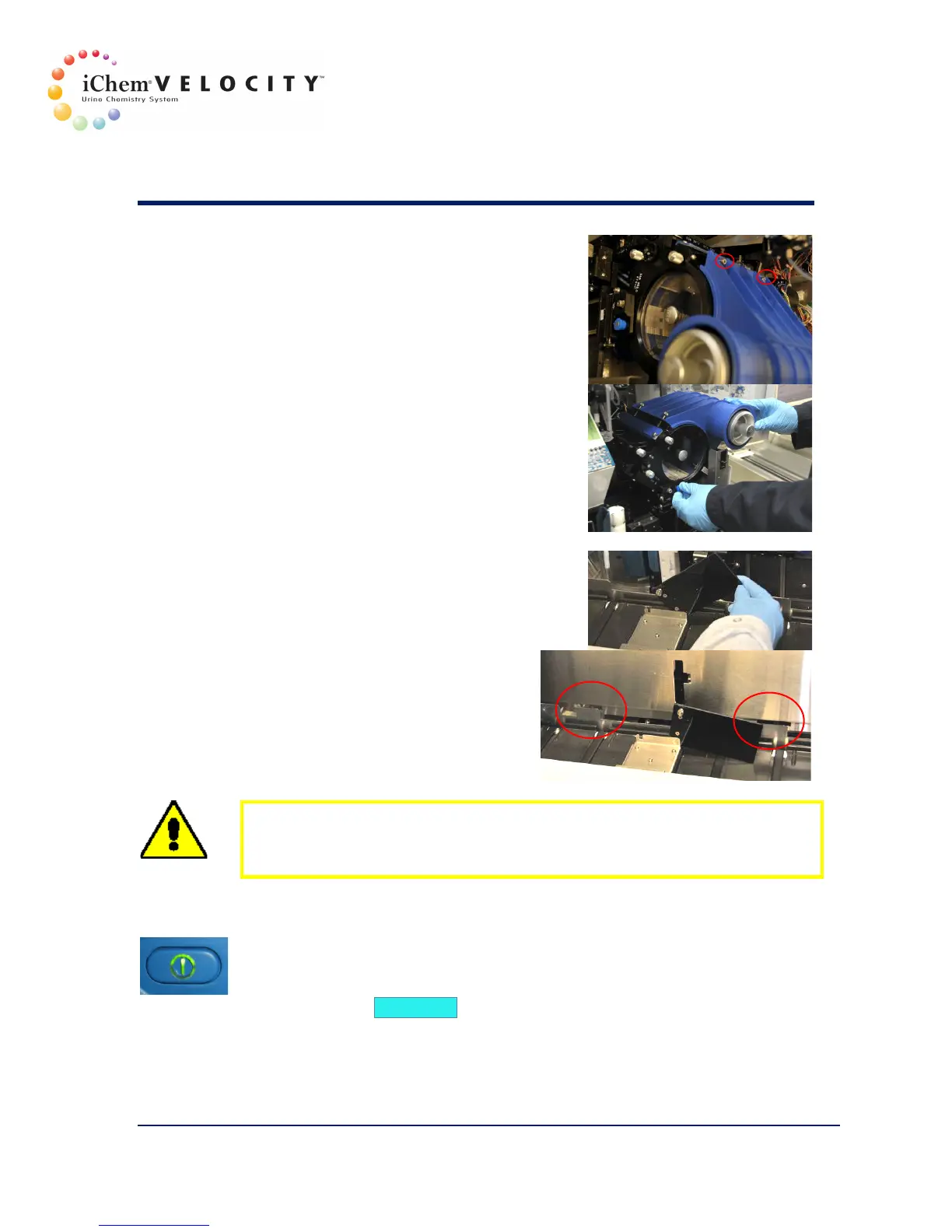

8. After cleaning inside the strip
provider or removing any strip
jam, close the strip loader and
snugly reattach the screws. Do
not over tighten.
9. Pull the blue knob to release
the strip provider module and tilt
it back to the left. When the
front door is closed, the strip
provider module will be
maintained into position.
10. Close the side doors.
11. Raise the barcode reader shield
and attach using the
thumbscrew.
12. Re-install the splashguard by
sliding it so that the two tabs
slide inside the two slots at the
bottom of the splashguard.
Reattach the thumbscrews,
finger tight only.
CAUTION: Make sure that the two tabs slide inside the two holes located
at the bottom of the splashguard. If the tabs are not inside the holes, rack
jam can occur.
13. Close the front door.
14. Turn the power on by pressing the green button located on the left
side of the chemistry system.
15. Click on the Go On line button. The system status will change to On
Line.
