8 Maintenance & Service
301-7146 English Rev B 11/02/2011 Operator’s Manual NA 173

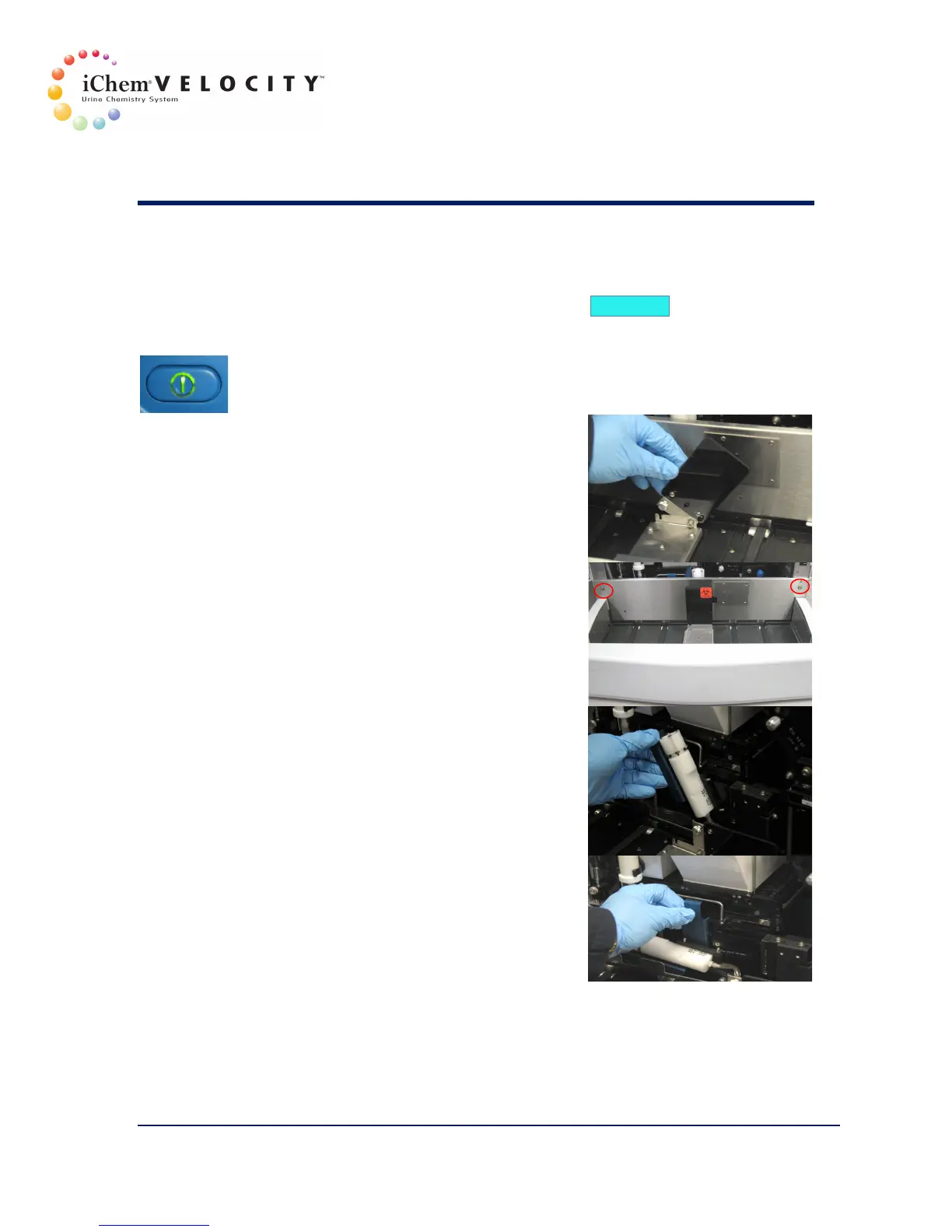

Accessing the Strip Conveyor Module
1. From the Instrument screen, click on the Go off line button. The
system status will change to Off Line.
2. Press the ON button on the front of the instrument to turn the power
off.
3. Loosen the thumbscrew holding
the barcode reader shield and
then tilt the shield to the
horizontal position to the right.
4. Remove the two thumbscrews
holding the splashguard to the
main frame. Remove the
splashguard and set aside with
the screws. Move the sample
probe out of the way.
5. Tilt the wash station to the left
until it is in horizontal position.
This will raise the Strip Provider
Module.
6. Pull out and then push down
the blue latch holding the strip
conveyor handle and then slide
it under the bottom plate.
To Next Page
