8 Maintenance & Service
301-7146 English Rev B 11/02/2011 Operator’s Manual NA 174

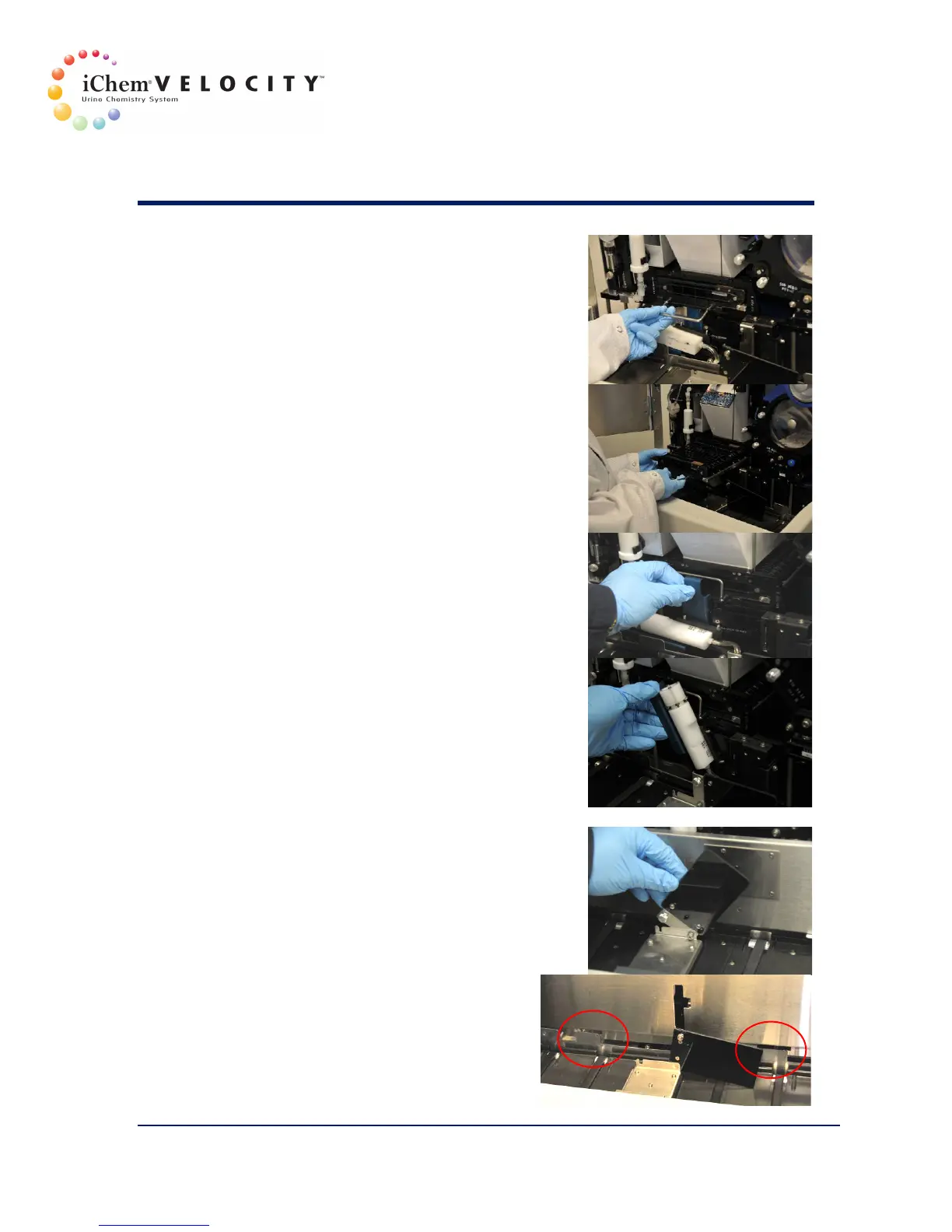

7. Using the handle, gently pull the
strip conveyor away from its
location.
8. When the maintenance or the
jam clearance is complete,
replace the strip conveyor
module back inside the
instrument, pushing it all the
way.
9. Pull the blue latch and move it
up in place to maintain the
handle in place.
10. Raise the wash station back to
the vertical position.
11. Close the side doors.
12. Raise the barcode reader shield
and attach using the
thumbscrew.
13. Re-install the splashguard by
sliding it so that the two tabs
slide inside the two slots at the
bottom of the splashguard.
Reattach the thumbscrews,
finger tight only.
