7. If more than one shelf is installed, you can connect the shelves for communication
and current sharing between the rectifiers.

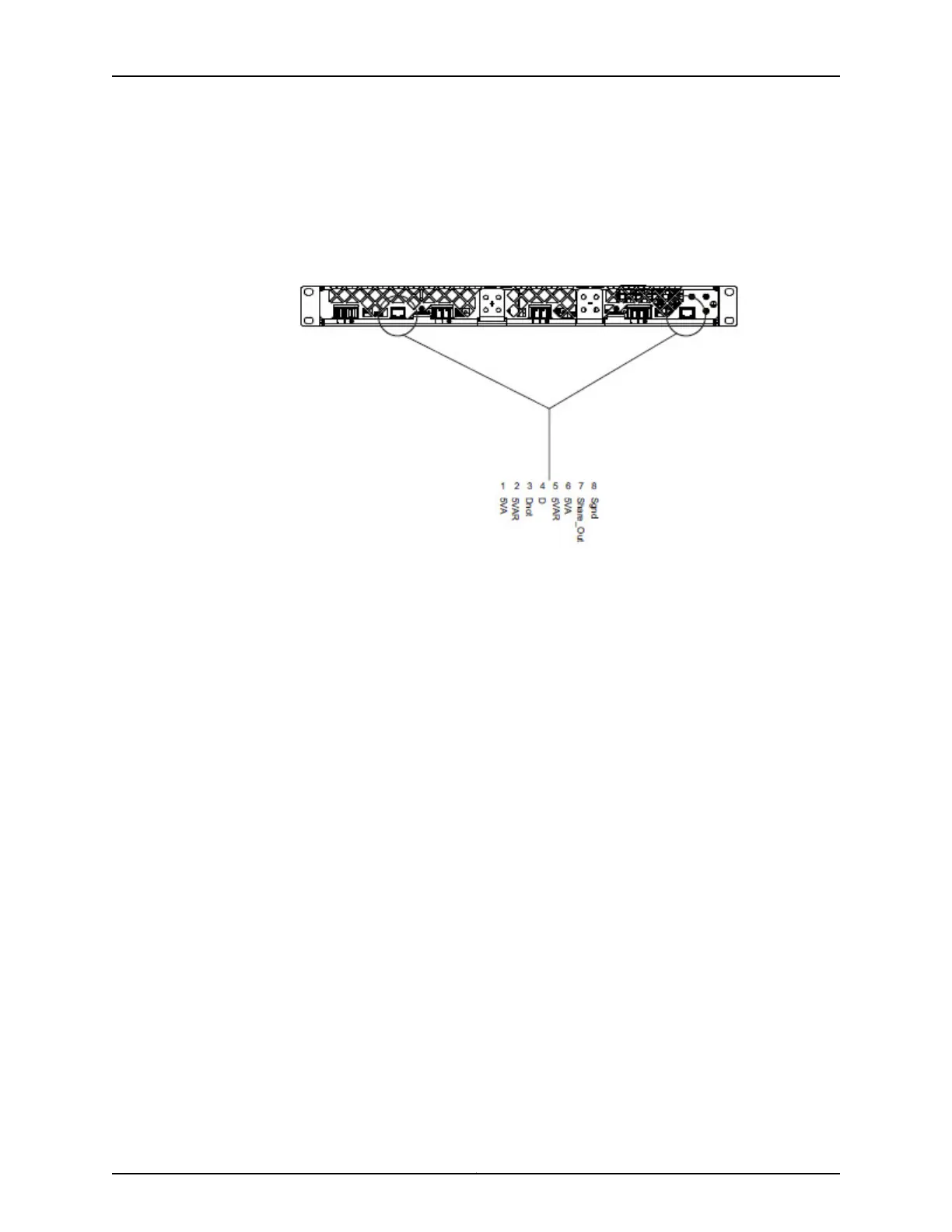

Locate the two connectors on the rear of the shelf. They are parallel and either one
can be used.
Using a standard 8-pin patch cable and plug, connect the sharing connectors.
8. Connect the shelf to the BTI7814 PEMs (power entry modules).
See “Connecting the DC Power Feeds to a BTI7814 DC PEM” on page 94 for the
procedures to connect the shelf to the chassis.
You have successfully completed this procedure.
209Copyright © 2019, Juniper Networks, Inc.
Chapter 8: AC Rectifier (External)
