Kodiak 100 Series User Manual

Pilot’s Operating Handbook
7-29
DO NOT USE FOR FLIGHT OPERATIONS
Section 7
AIRPLANE & SYSTEMS DESCRIPTIONS
100 SERIES
Systems
SUPPLEMENTAL FLIGHT DATA
In addition to the ight instruments, the PFDs also display various
supplemental information, including temperatures, wind data, and Vertical
Navigation (VNV) indications.
Temperature Displays
The Outside Air Temperature (OAT) is displayed in degrees Celsius (°C) or
Fahrenheit (°F) as selected by the pilot, in the lower left of the PFD under
normal display conditions. Temperature is displayed below the true airspeed
in reversionary mode.

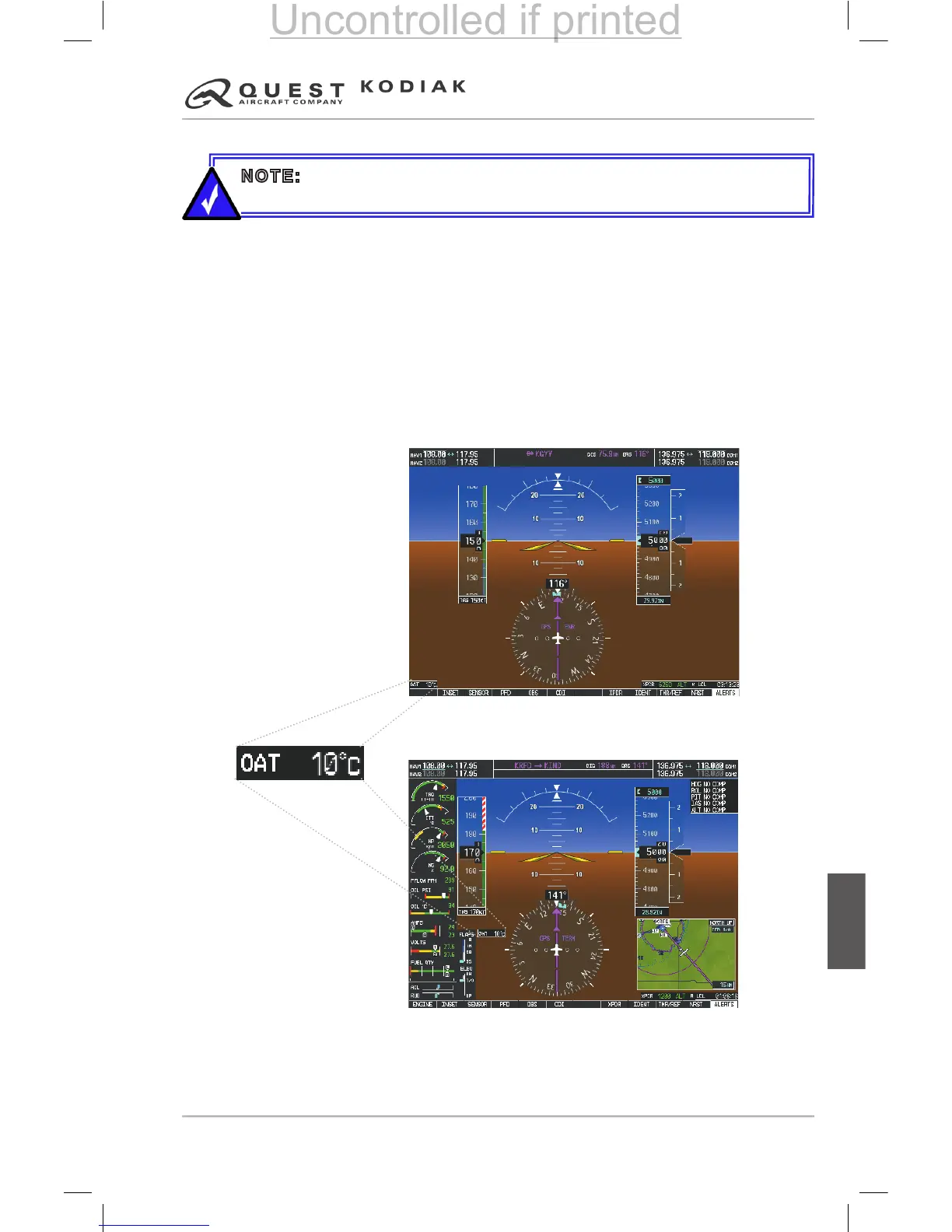

Figure 7-25 – Outside Air Temperature
NOTE: Pressing the DFLTS softkey turns off metric Altimeter display, the
Inset Map and wind data display.
Reversionary Mode
Normal Display
Uncontrolled if printed

Kodiak 100 Series Specifications

General

Manufacturer	Daher
Engine	Pratt & Whitney Canada PT6A-34
Service Ceiling	25, 000 feet
Seating Capacity	10
Crew	1-2
Range	1, 132 nautical miles
Type	Utility aircraft
Length	34 feet 2 inches
Wingspan	45 feet
Max takeoff weight	7, 255 pounds
Power Output	750 shp
Cabin Width	4 feet 6 inches
