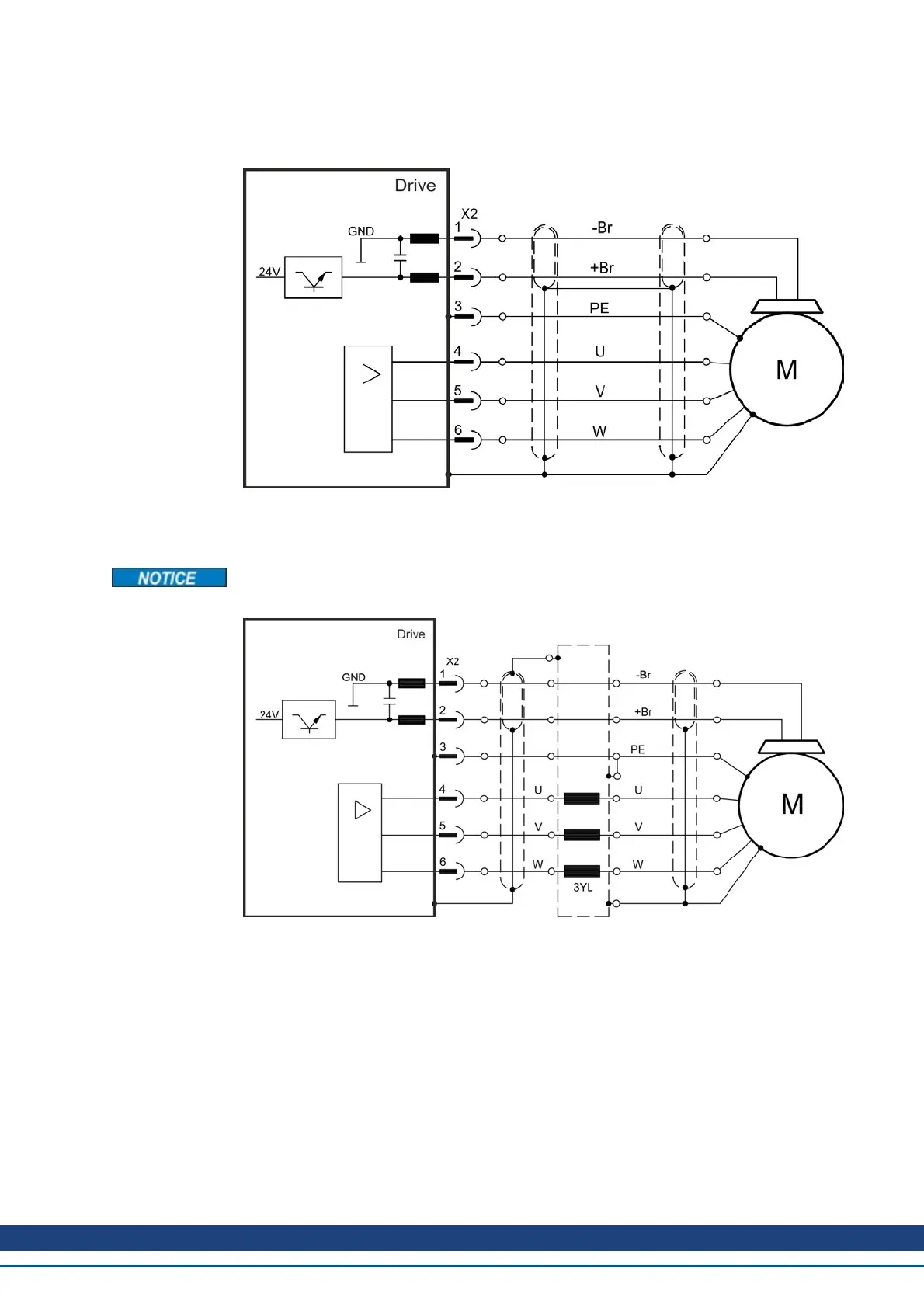

8.10.1 Motor Power (X2)
8.10.1.1 Cable Length ≤ 25 m
8.10.1.2 Cable length >25 m
With long motor cables leakage currents endanger the output stage of the drive. For cable
lengths from 25 m to 50 m, a motor choke must be wired into the motor cable (near the drive).
AKD Installation | 8 Electrical Installation
Kollmorgen™ | May 2013 101
