Kollmorgen AKD Installation Manual

8.8 Electrical Supply Connection

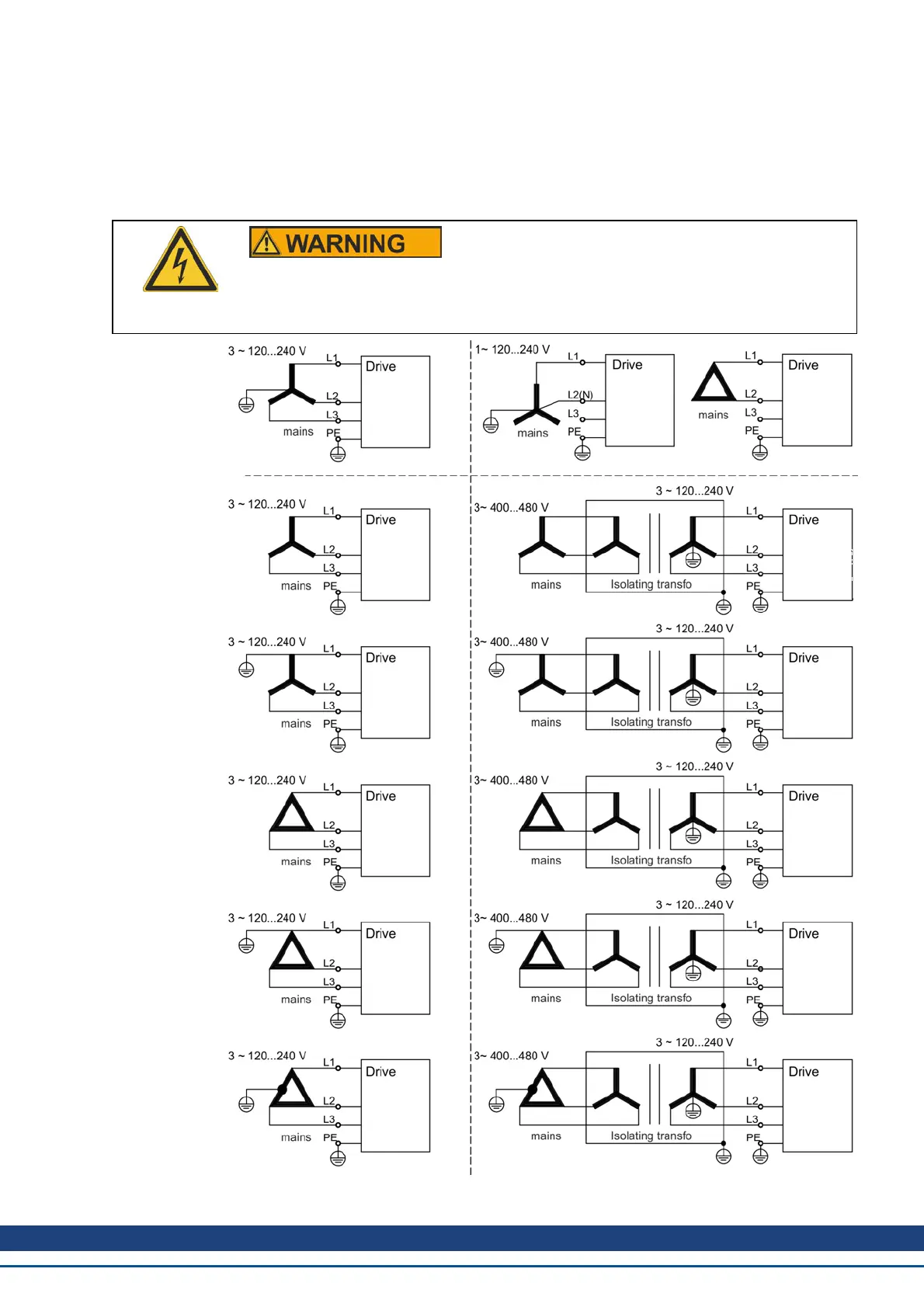

8.8.1 Connection to Various Mains Supply Networks AKD-xzzz06 (120V to 240V)
This page illustrates all the possible connection variations for different electrical supply net-
works.
There is a danger of electrical shock with serious personnel injury if the
drive is not properly grounded. An isolating transformer is always required
for 400 to 480 V networks to get a maximum voltage of 240 V +10%.
AKD Installation | 8 Electrical Installation
Kollmorgen™ | May 2013 89

Kollmorgen AKD Specifications

General

Control Modes	Torque, Velocity, Position
Communication Interfaces	EtherCAT, CANopen
Feedback Options	Resolver
Safety	STO (Safe Torque Off), SS1 (Safe Stop 1)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Operating Temperature Range	0°C to 55°C
Humidity	5% to 95% non-condensing
