AKD Installation | 9 Setup
9.4 Fault and Warning Messages
9.4.1 Fault and Warning Messages AKD
When a fault occurs, the drive fault relay is opened, the output stage is switched off (motor
loses all torque), or the load is dynamically braked. The specific drive behavior depends on
the type of fault. The LED display on the front panel of the drive shows the number of the fault
that occurred. If a warning is issued prior to the fault, the warning is shown on the LED and
has the same number as the associated fault. Warnings do not trip the power stage of the
drive or fault relay output.

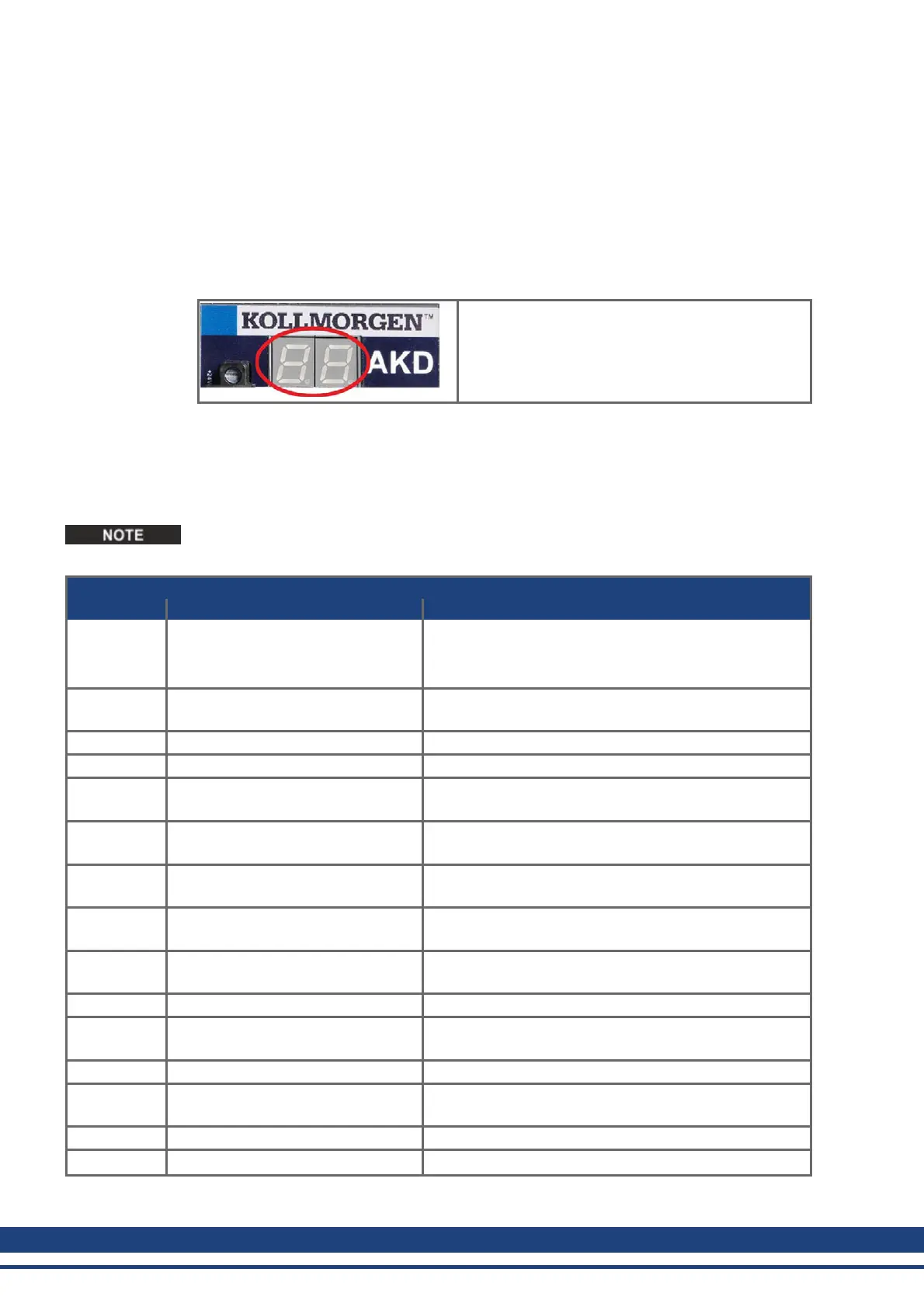

AKD fault codes or warning codes are displayed con-
stantly if present. Fault messages are coded with
"F", warnings are coded with "n".
With built-in I/O option card, SD card operation
errors are displayed with "E" followed by 4 digits.
The left side of the LED displays F (or E) for a fault or n for a warning. The right side displays
the fault or warning number as follows: 1-0-1-[break]. The highest priority fault is displayed.
Multiple faults may be present when a fault condition is occurring. Check the AKD Work-
Bench Fault Screen or read the status of DRV.FAULTS through the controller or HMI for the
entire list of faults.
More information about fault messages, remedy and clearing faults can be found in the Work-
Bench online help.
Fault Message/Warning Cause
..
24V Control Power input voltage dip.
or
Auxiliary encoder 5V (X9-9) shorted.
E0082 SD Card is not inserted. No SD card inserted or SD card inserted with wrong orien-
tation.
E0083 SD Card is write protected. SD card protection clip in wrong position.
E0084 SD Card hardware not installed. No I/O option board installed or SD card device faulty.
E0095 File not found on SD Card. SD card damaged or filename has been changed man-
ually or deleted.
E0096 File error trying to access the SD
Card.
File on SD card can't be read.
E0097 File system error accessing the SD
card.
File system on SD card can't be read.
E0098 A parameter could not be set in the
drive.
-
E0099 There was an error writing to a file on
the SD Card.
General writing error.
E0100 SD Card read/write in progress. -
E0101 There was an error accessing the
BASIC binary file.
Basic program file couldn't be read.
F0 Reserved.
F101 Firmware type mismatch. Installed firmware is not compatible with the drive hard-
ware.
n101 The FPGA is a lab FPGA. The FPGA is a lab version FPGA.
F102 Resident firmware failed. Software failure detected.
178 Kollmorgen™ | May 2013
