AKD Installation | 8 Electrical Installation
8.11.3 SFD

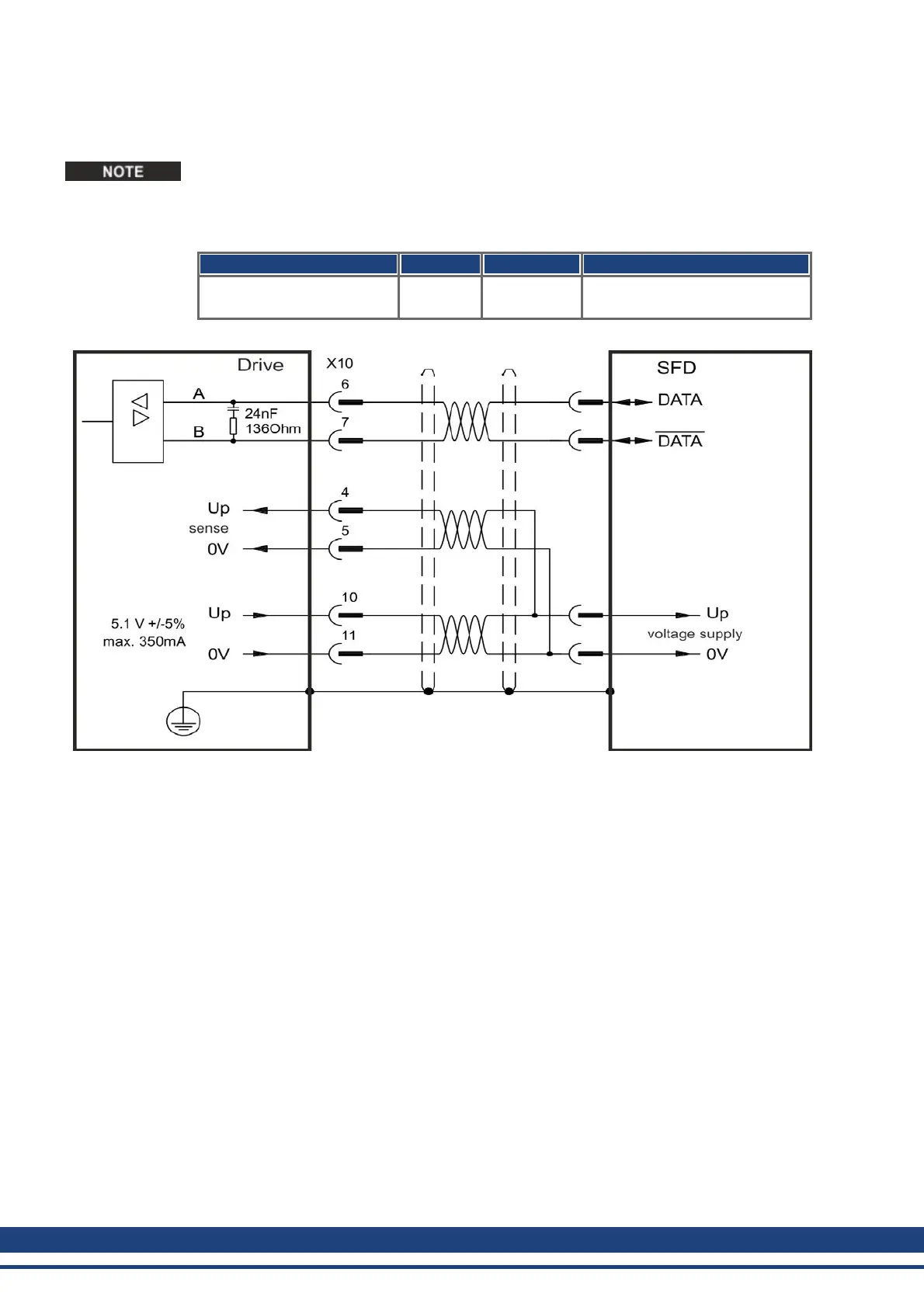

The diagram below shows the connection of the Kollmorgen™ feedback system.
When SFD cable total resistance for 5V out (Up) and 5V return (0V) is less than 3.3 Ohm,
then remote sensing is not needed. For typical cable this means remote sensing is not
needed up to 25 m.
Kollmorgen™cables are rated up to 50 m with no remote sensing.
Type FBTYPE Up Remarks
Smart Feedback Device 41 5.1 V +/-5% accuracy 14 bit (0.022°),
resolution 24 bit (2 x 10E-5°)
106 Kollmorgen™ | May 2013
