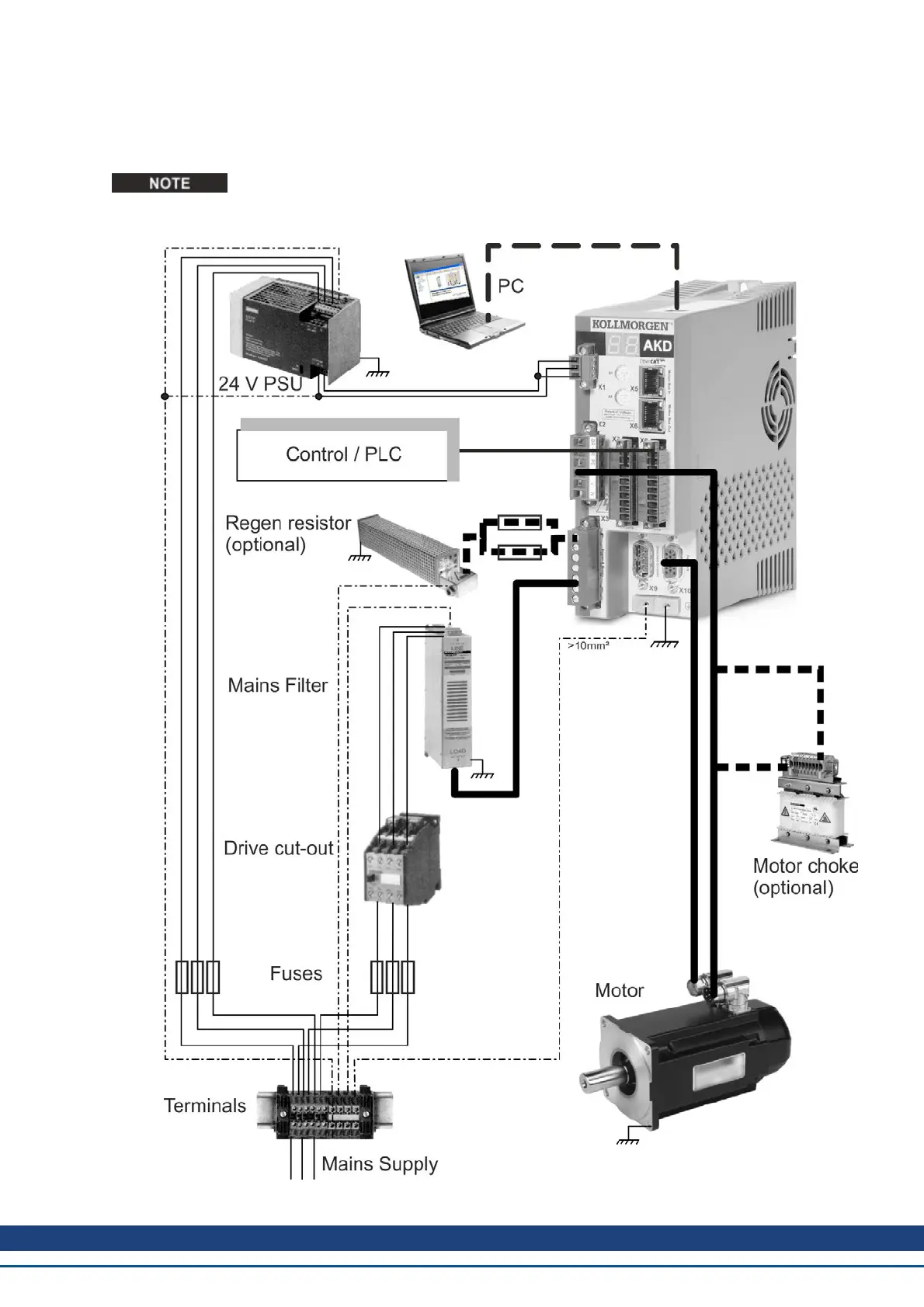

8.4 Components of a servosystem
With AKD-xzzz06
Cables drawn bold are shielded. Electrical ground is drawn with dash-dotted lines. Optional
devices are connected with dashed lines to the drive. The required accessories are
described in the accessories manual.
AKD Installation | 8 Electrical Installation
Kollmorgen™ | May 2013 73
