8.11.4 Hiperface DSL

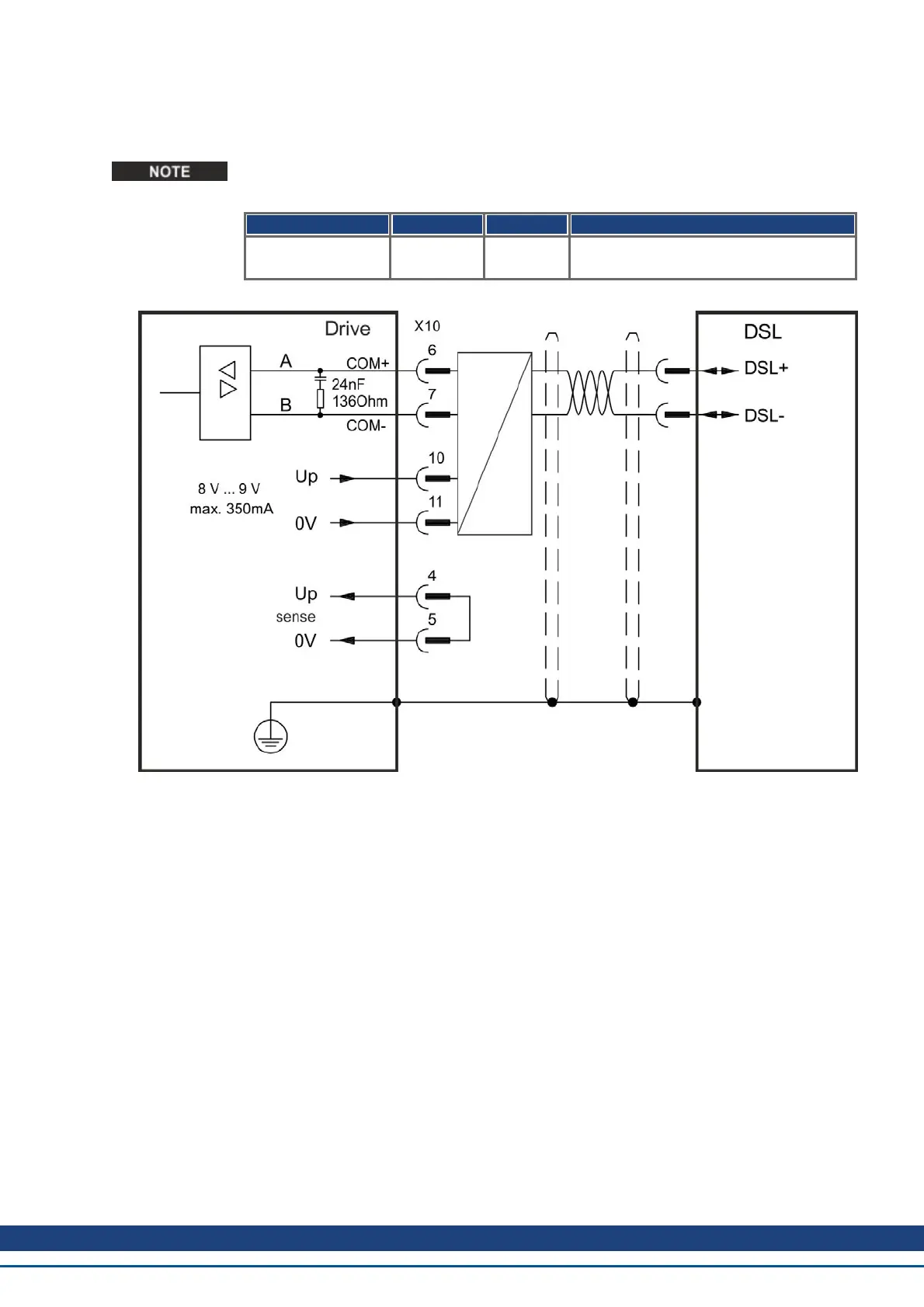

The diagram below shows the connection of the two wire Hiperface DSLfeedback system.
Hiperface DSL can be used with the special Kollmorgen™ cable.
Maximum cable length is up to 25 m.
Type FBTYPE Up Remarks
Hiperface DSL 46 8 to 9 V from FW 1.9,
with Kollmorgen™ Cables only
AKD Installation | 8 Electrical Installation
Kollmorgen™ | May 2013 107
