AKD Installation | 9 Setup
9.3.6 Installation under Windows XP/7
The DVD includes an installation program for the setup software.
Installation
l Autostart function activated:
Insert the DVD into a free drive. A window with the start screen opens. There you find a
link to the setup software KAS IDE. Click it and follow the instructions.
l Autostart function deactivated:
Insert the DVD into a free drive. Click Start (task bar), then Run. Enter the program call:
x:\index.htm (x = correct DVD drive letter).
Click OK and proceed as described above.

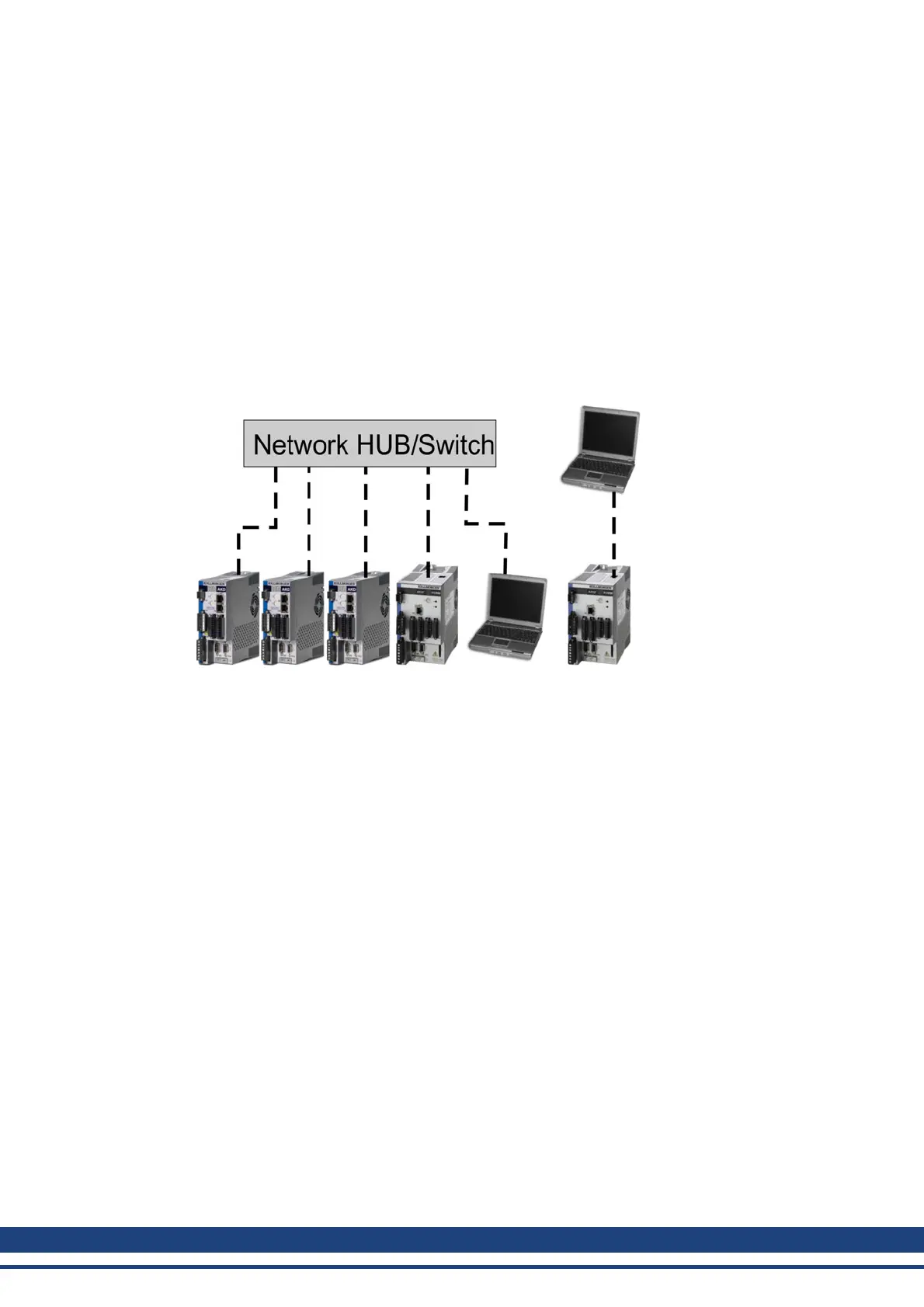

Connection to the Ethernet interface of the PC
l Connect the interface cable to an Ethernet interface on your PC or to a Hub/Switch and to
the service interface X32 of the AKD PDMM (➜ p. 148).
170 Kollmorgen™ | May 2013
