AKD Installation | 8 Electrical Installation

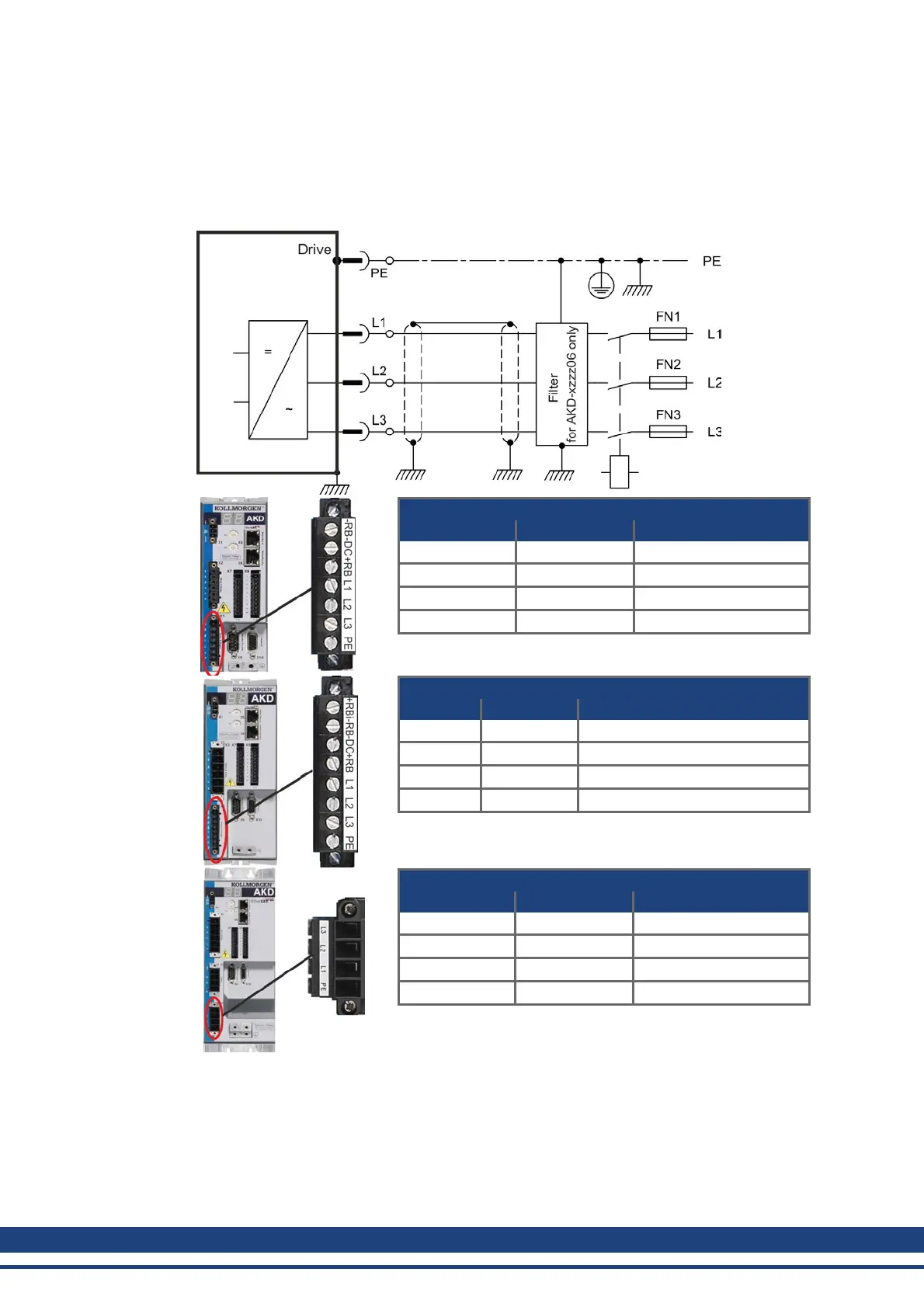

8.8.4 Mains Supply Connection (X3, X4)
8.8.4.1 Three Phase connection (all AKD types)
l Directly to 3-phase supply network, supply networks ➜ p. 89
l Filtering for AKD-xzzz06 to be provided by the user.
l Fusing (such as fusible cut-outs) to be provided by the user ➜ p. 37.
AKD-x00306 to AKD-x00606 (X3)
Pin Signal Description
4 L1 Line 1
5 L2 Line 2
6 L3 Line 3
7 PE Protective Earth
AKD-x01206 (X3)
Pin Signal Description
5 L1 Line 1
6 L2 Line 2
7 L3 Line 3
8 PE Protective Earth
AKD-x02406 & AKD-xzzz07 (X4)
Pin Signal Description
1 L1 Line 1
2 L2 Line 2
3 L3 Line 3
4 PE Protective Earth
92 Kollmorgen™ | May 2013
