8.12.4 Up / Down signal connection

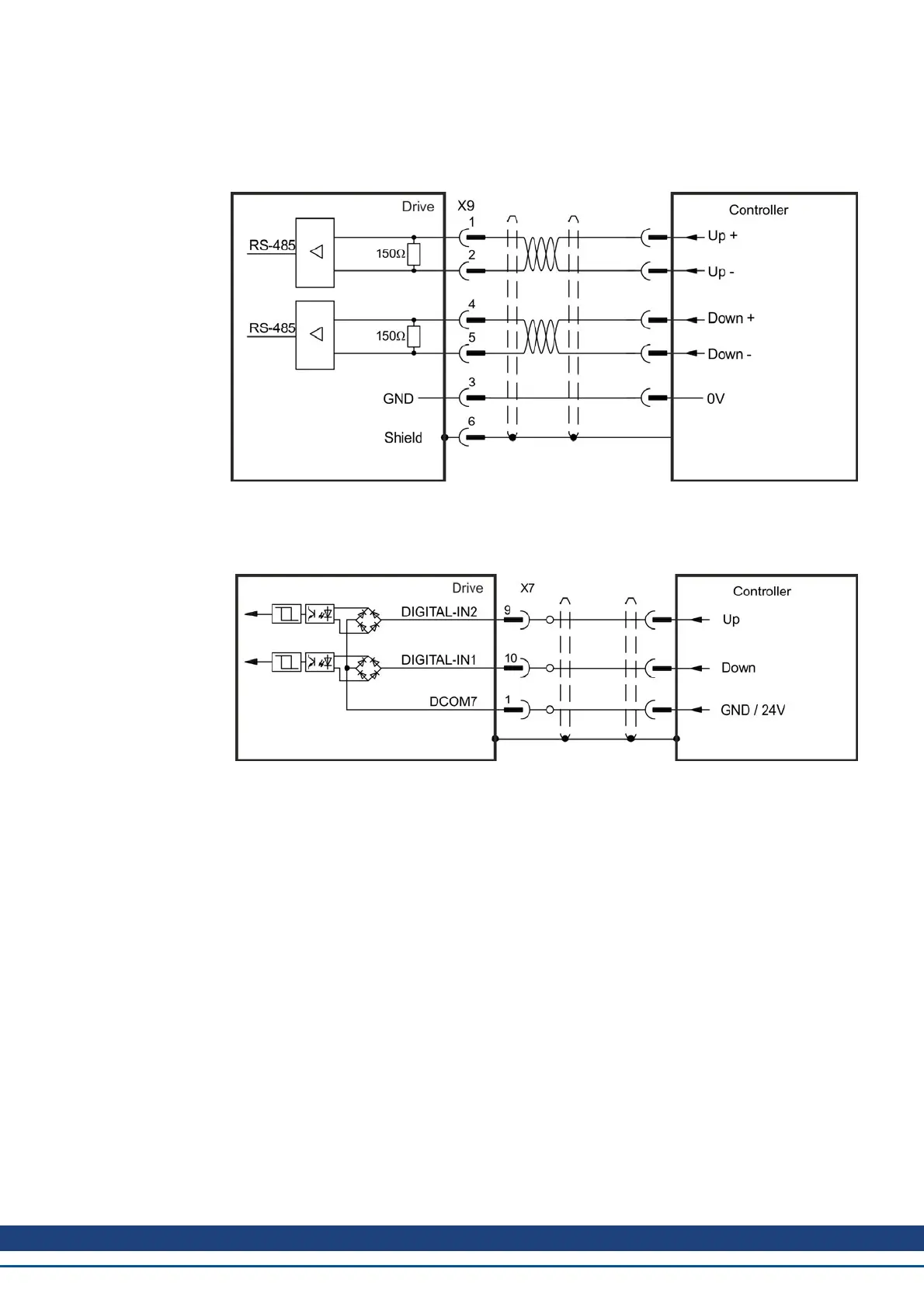

8.12.4.1 Up / Down input 5 V (X9)
The drive can be connected to a third-party controller which delivers 5 V up-down signals
8.12.4.2 Up / Down input 24 V (X7)
The drive can be connected to a third-party controller which delivers 24 V up-down signals.
AKD Installation | 8 Electrical Installation
Kollmorgen™ | May 2013 121
