Kollmorgen AKD

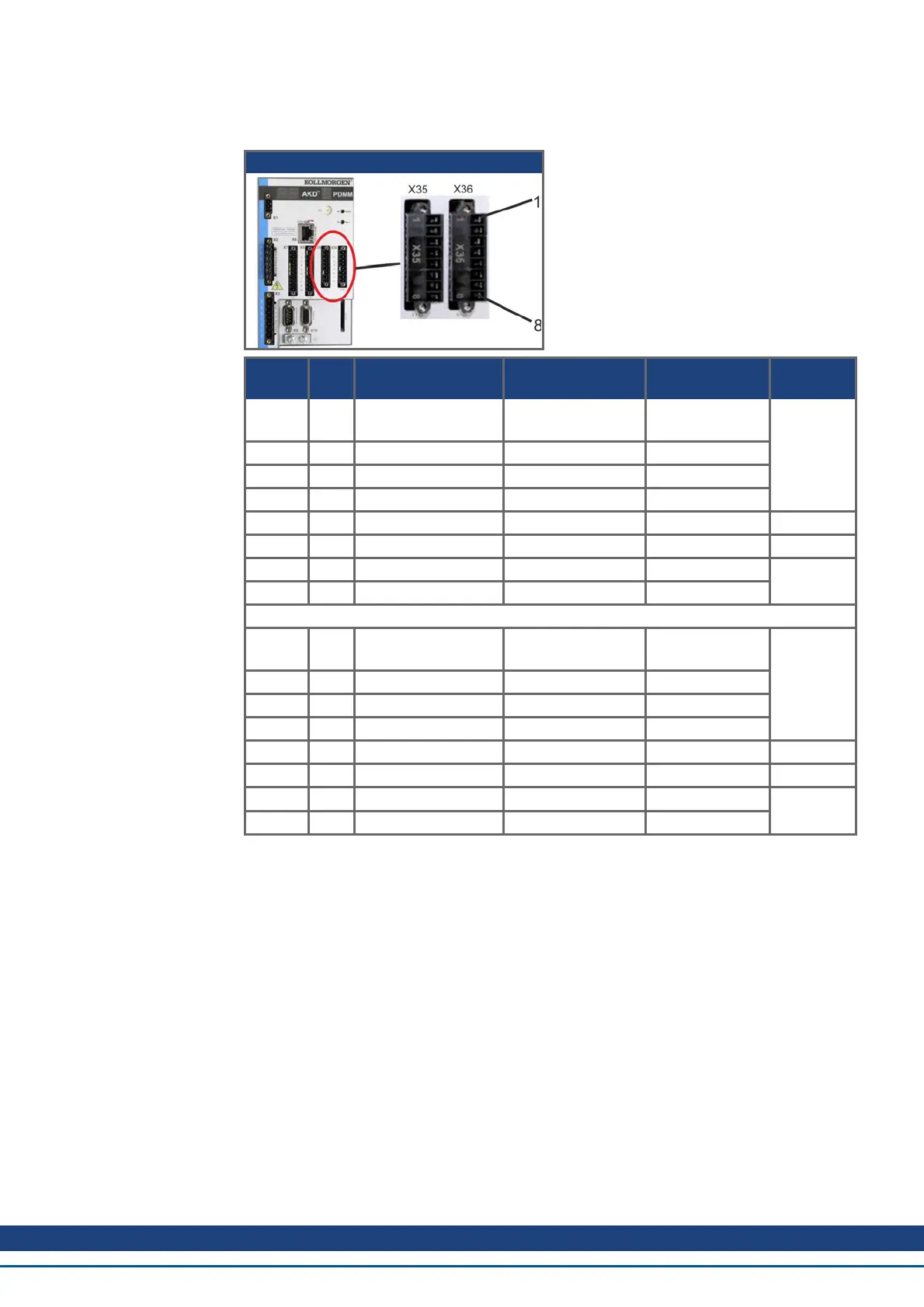

8.13.3 I/O Connectors X35 and X36 (AKD-M only)
AKD PDMM offers two additional connectors X35 and X36 for digital I/O signals.
AKD-M
Conn. Pin Signal Abbreviation Function Wiring Dia-
gram
X35 1 Digital Common X35 DCOM35 Common line for
X35 pins 2, 3, 4
➜ p. 139
X35 2 Digital Input 21 DIGITAL-IN 21 Programmable
X35 3 Digital Input 22 DIGITAL-IN 22 Programmable
X35 4 Digital Input 23 DIGITAL-IN 23 Programmable
X35 5 n.c. n.c. - -
X35 6 n.c. n.c. - -
X35 7 Digital Output 21- DIGITAL-OUT21- Programmable ➜ p. 141
X35 8 Digital Output 21+ DIGITAL-OUT21+ Programmable
X36 1 Digital Common X36 DCOM36 Common line for
X36 pins 2, 3, 4
➜ p. 139
X36 2 Digital Input 24 DIGITAL-IN 24 Programmable
X36 3 Digital Input 25 DIGITAL-IN 25 Programmable
X36 4 Digital Input 26 DIGITAL-IN 26 Programmable
X36 5 n.c. n.c. - -
X36 6 n.c. n.c. - -
X36 7 Digital Output 22- DIGITAL-OUT22- Programmable ➜ p. 141
X36 8 Digital Output 22+ DIGITAL-OUT22+ Programmable
Digital common lines for X35 and X36 are not common to each other.
The DCOMx line should be connected to the 0V of the I/O supply when using sensors of type
"Source" with digital inputs.
The DCOMx line should be connected to the 24V of the I/O supply when using sensors of
type "Sink" with digital inputs.
