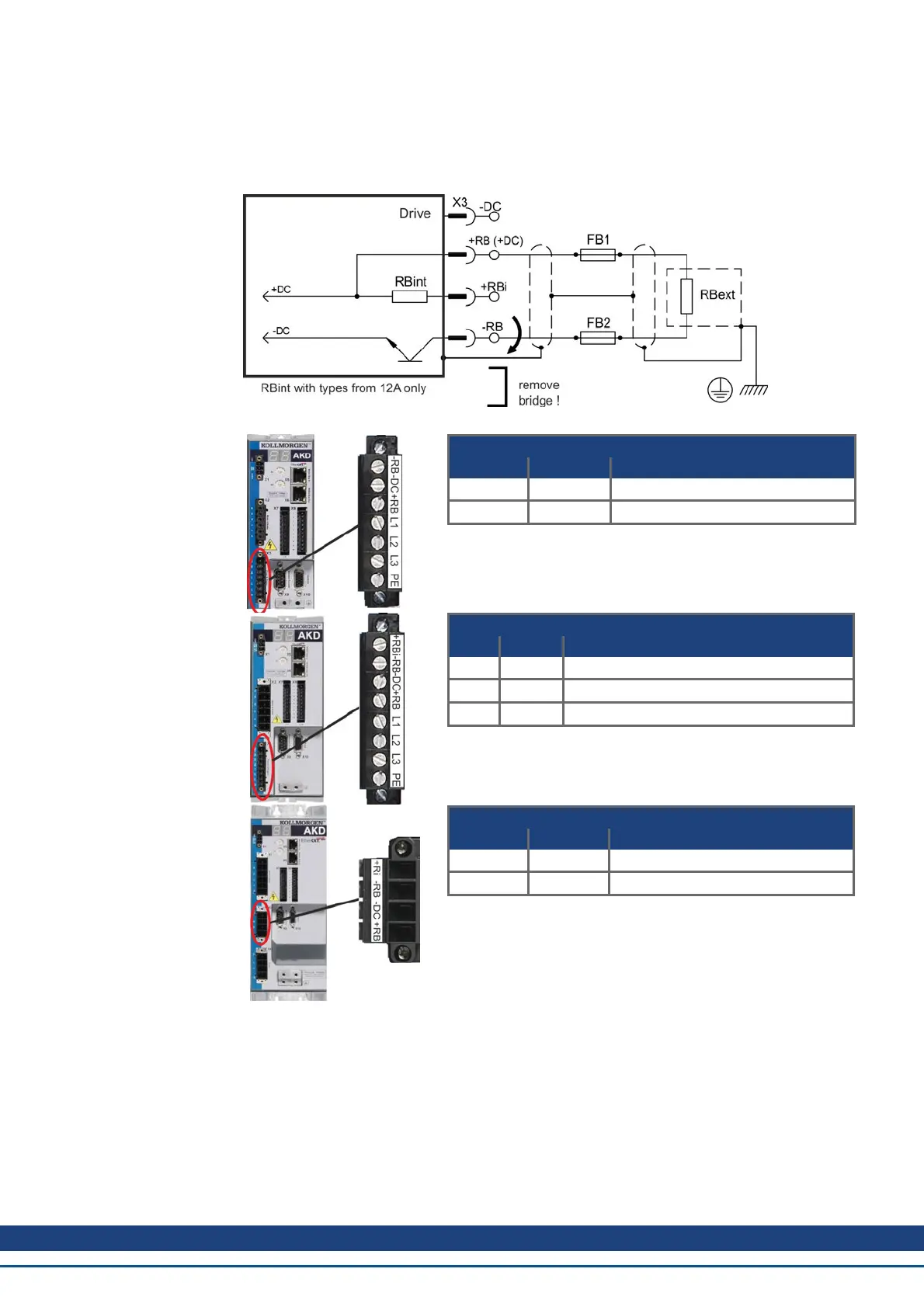

8.9.1 External Regen Resistor (X3)
For technical data on the brake circuit "Dynamic Braking" (➜ p. 40). Fusing (such as fusible
cut-outs) to be provided by the user "Fusing" (➜ p. 37).
AKD-x00306 to AKD-x00606 (X3)
Pin Signal Description
1 -RB External Regen Resistor negative
3 +RB External Regen Resistor positive
AKD-x01206 (X3)
Pin Signal Description
1 +Rbint Internal RegenResistor positive
2 -RB External RegenResistor negative
4 +RB External RegenResistor positive
AKD-x02406 & AKD-xzzz07 (X3)
Pin Signal Description
2 -RB External RegenResistor negative
4 +RB External RegenResistor positive
AKD Installation | 8 Electrical Installation
Kollmorgen™ | May 2013 95
