AKD Installation | 8 Electrical Installation
8.7.2 Shielding with External Shielding Busbar
EMC filtering must be done externally by the user if necessary, which requires the use of
shielded cables.Kollmorgen™ recommends a star point shield connection, for example, with
a shielding busbar.

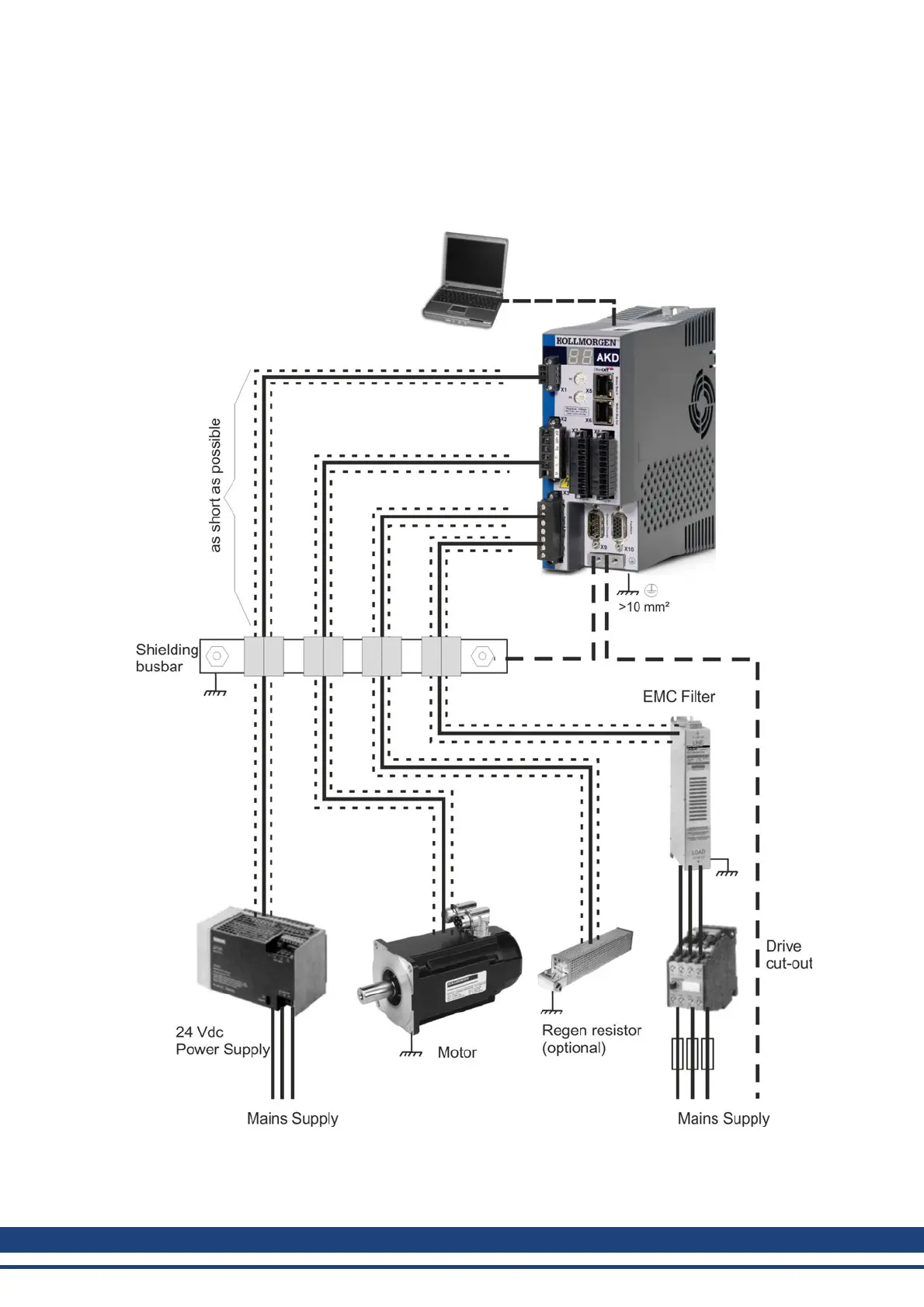

8.7.2.1 Shielding Concept
86 Kollmorgen™ | May 2013
