4.4 Basic Scanning Mode
152

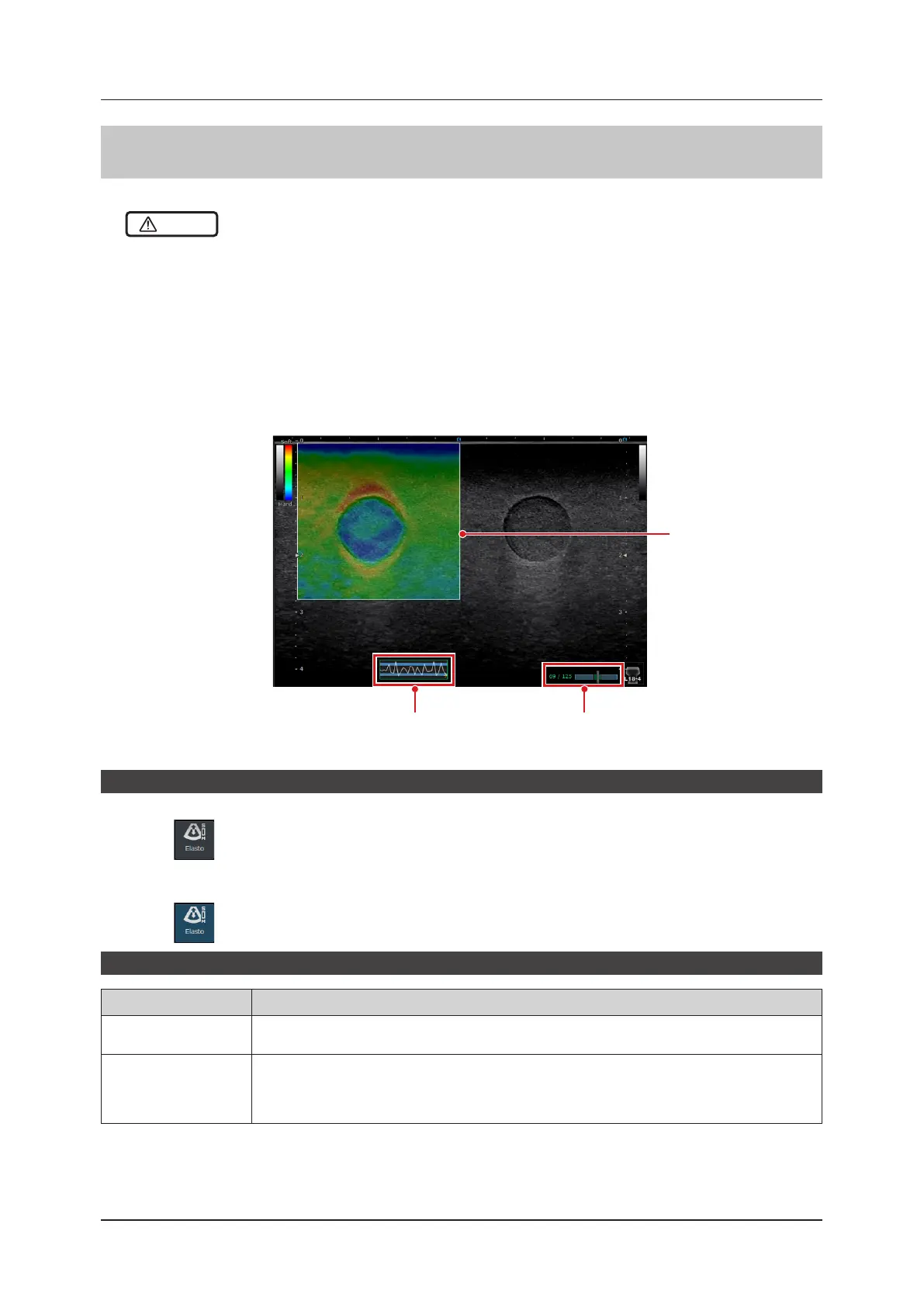

4.4.7 Elastography-mode
WARNING
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
• Do not perform the biopsy during pressurization of the human tissue in Elastography-mode. There is a risk of scar-
ring the patient.
• Examinations by elastography should be performed by trained persons with su󰀩cient knowledge and skills.
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
Strain elastography techniques are used in Elastography-mode. The image is generated from the strain caused by
the uniform pressure of the transducer on the tissue. The color elastic image will be displayed superimposed over
the ROI for elastography on the B image.
This function works with L18-4, L11-3 and WL13-3 transducers.
Requires the optional "Strain Elastography License."
Pressurization state
navigation
ROI for elastography
Display stable
interval
Starting Elastography-mode
1
Press .
z
To exit
1
Press again.
Elastography-mode parameter list
Item Functions
[Tx Level]
Sets the transmission voltage.
• Displayed in all modes.
[Display Mode]
Switching Display-mode, Split or Single screen
• If Split is selected in the display mode setting, the screen will be displayed in Split-mode when
Elastography-mode starts. When transferring from Dual to Split screen display the image clears
from the inactive side.
