1.6 System Conguration and Part Name
1.6.4 Side Panel / Rear Panel
The power switch and various connectors, etc. are located on the side / rear panels.

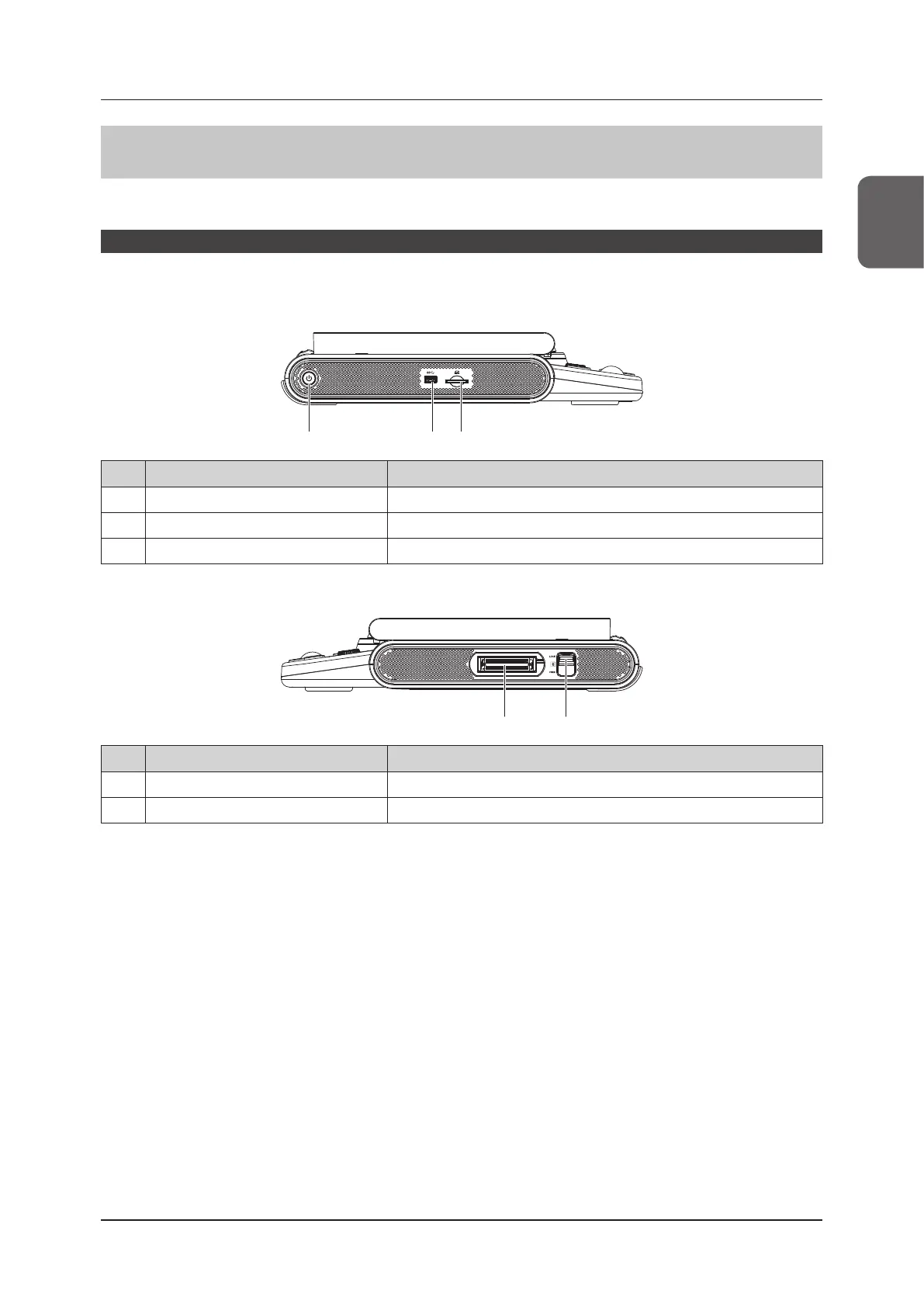

Side panel
The peripheral devices can be connected to each side panel.
z
Left side (when used)
(1) (2) (3)
No. Name Functions
(1) Power switch (Standby switch) Power ON/OFF (Standby)
(2) USB3.0 port USB system connector
(3) SD memory card slot SD memory card connector
z
Right side (when used)
(1) (2)
No. Name Functions
(1) Transducer connector Transducer connection
(2) Transducer connector lock Lock / unlock lever for transducer connection
