In mixed mode several di󰀨erent types of modes can be combined and displayed simultaneously.
The modes currently being used in mixed mode are referred to as "active image modes". Parameters of the active
image modes can be specied.

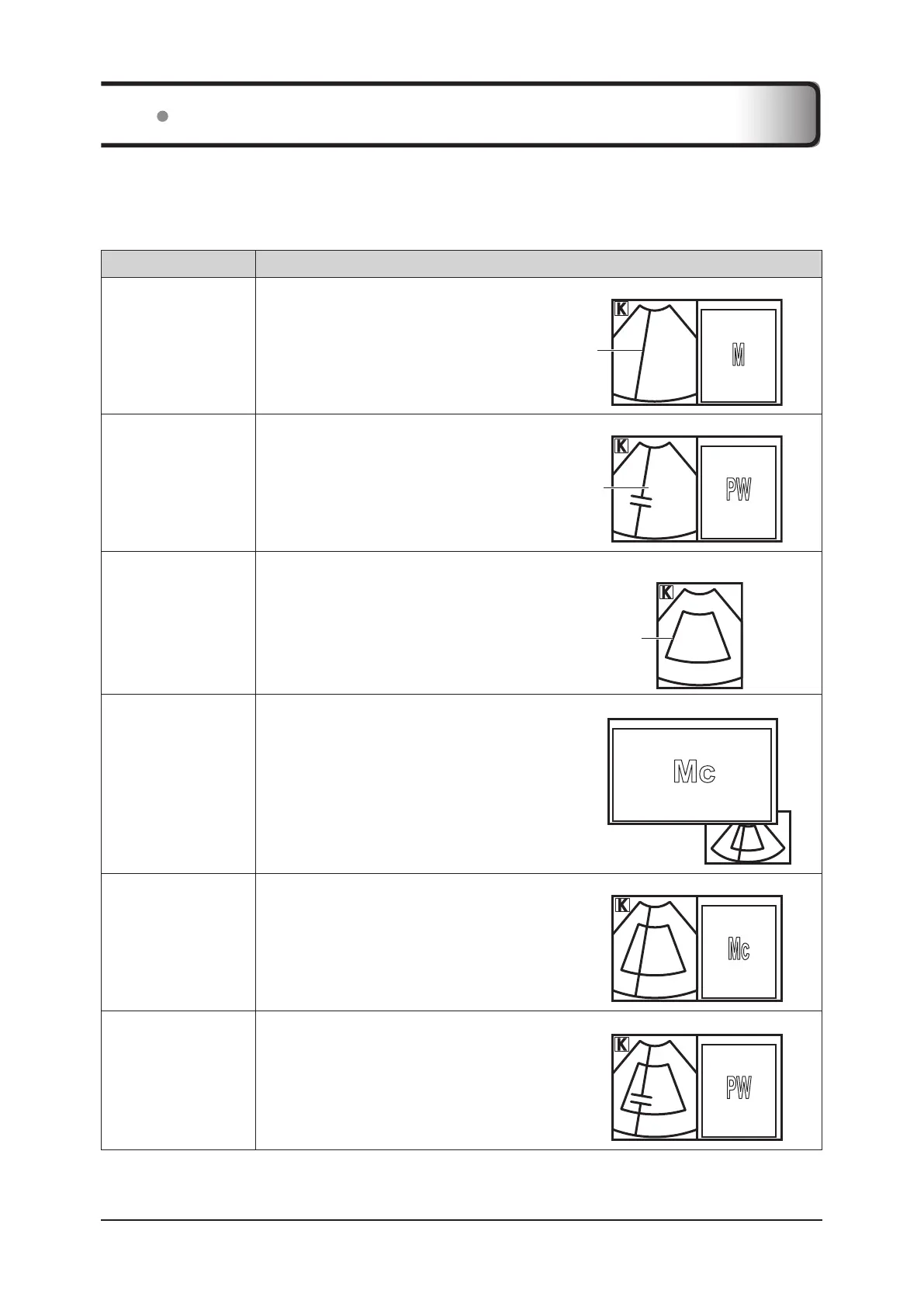

Mode combinations are shown below.
Mixed mode Functions
BM
Displays a B image and an M image of the loca-
tion of the cursor on the B image.
No color
M
Cursor
BD
Simultaneously displays a B image and a Dop-
pler image of the location of the D cursor on the
B image.
• The gure on the right is a display example of
PW Doppler-mode.
No color
PW
D cursor
Bc
A combination of a B image plus a Color image
or a combination of a B image plus a Power im-
age
With color
C ROI
Mc
A combination of an M image plus a Color im-
age
*
, and Mc to be displayed full-screen.
With color
K
Mc
BcMc
Displays a B image (color imaging available
*
)
and an M image of the location of the cursor on
the B image.
With color
Mc
BcD
Displays a B image (color imaging available)
and a Doppler image of the location of the D
cursor on the B image.
• The gure on the right is a display example of
PW Doppler-mode.
With color
PW
D: Each has both PW Doppler- and CW Doppler-modes.
c: Each has both Color Flow- and Power Doppler-modes.
*
: BcMc and Mc modes are not supported on Power images.
