5.6 Common Functions
204
z
M-mode / Anatomical M-mode

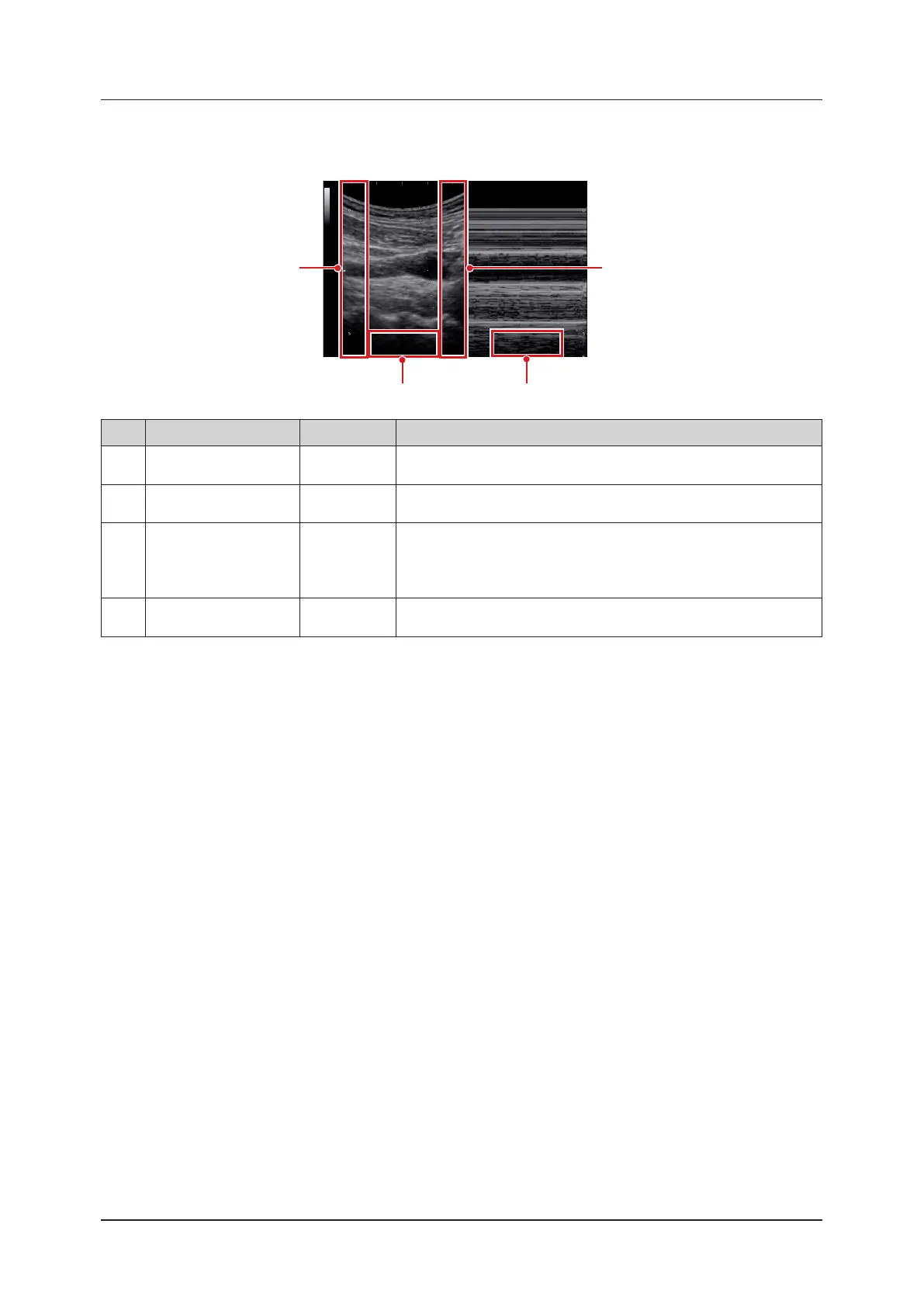

<Dual display>
(4)(3)
(1) (2)
No. Location Direction Remarks
(1) B-image Area Left Side Up/Down
The assigned functions can be changed by customizing the settings.
You can also not assign any functions.
(2) B-image Area Right Side Up/Down
The assigned functions can be changed by customizing the settings.
You can also not assign any functions.
(3)
B-image Area Bottom
Side
Left/Right
You can also not assign any functions by customizing the settings.
B Gain when the image is in a live state.
Gain operations are not available in a frozen state.
(4)
M-image Area Bottom
Side
Left/Right
You can also not assign any functions by customizing the settings.
M Gain in M-mode and a live state.
• For B-image Area Top Side, refer to "B-mode/ Elastography-mode" of "5.6.2 Direct Touch and Drag".
