5.6 Common Functions
205
Chapter 5
z

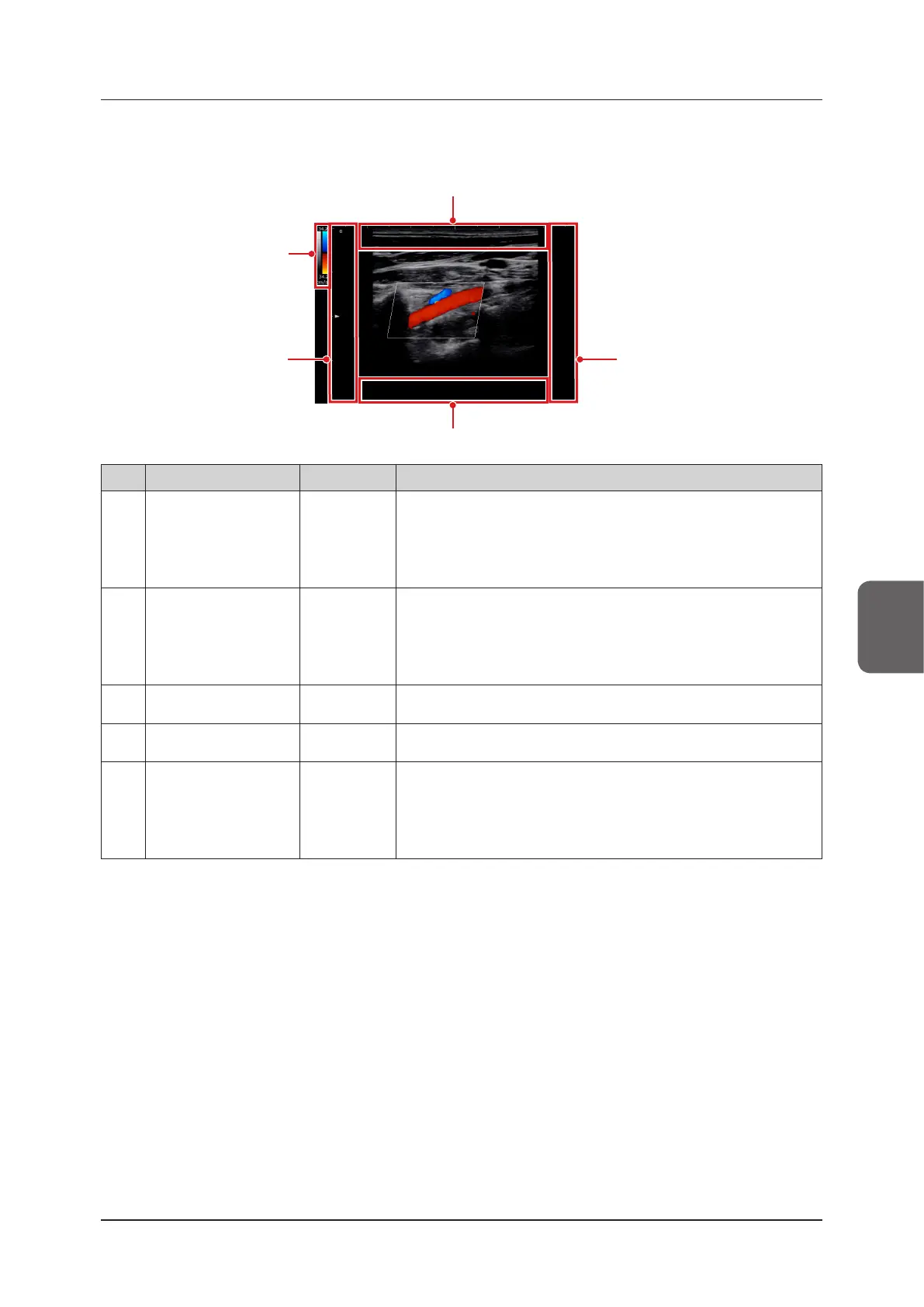

Color Flow-mode / Power Doppler-mode / 2D-TDI-mode / SCF-mode
<Single display>
(5)
(1)
(2)
(3) (4)
No. Location Direction Remarks
(1) B-image Area Top Side Left/Right
You can also not assign any functions by customizing the settings.
[C Steer]: during C ROI display
Available only when a linear transducer has been attached to the system.
Also, any steer operations are not available in a frozen state.
(2) Color Bar Area Up/Down
C Scale when the image is in a live state with Color Flow- / Power Dop-
pler- / 2D-TDI- / SCF-mode enabled.
(3) B-image Area Left Side Up/Down
The assigned functions can be changed by customizing the settings.
You can also not assign any functions.
(4) B-image Area Right Side Up/Down
The assigned functions can be changed by customizing the settings.
You can also not assign any functions.
(5)
B-image Area Bottom
Side
Left/Right
You can also not assign any functions by customizing the settings.
C Gain when the image is in a live state with Color Flow- / Power Doppler-
/ 2D-TDI- / SCF-mode enabled.
Gain operations are not available in a frozen state.
