Kyocera FS-C8600DN - Page 19

2MN/2N1
1-1-5

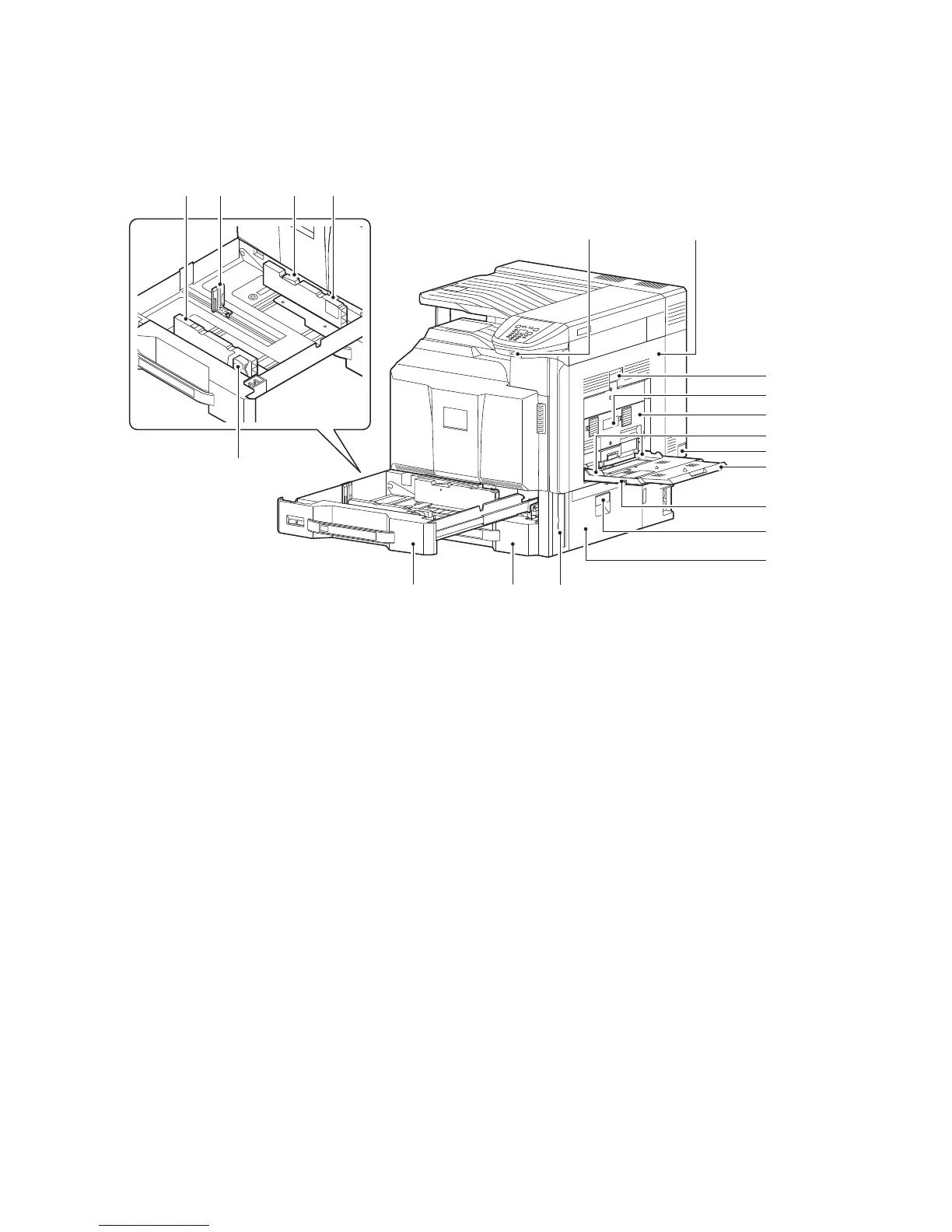

Figure 1-1-2
36
25
22 23
26
33
35
19
30
32
34
27
29
24 24
20 21
31
28
19. USB port
20. Cassettes 1
21. Cassettes 2
22. Paper length guide
23. Guide lock lever
24. Paper width guide
25. Paper width adjusting tab
26. Paper conveying unit
27. Paper conveying unit lever
28. Duplex cover lever
29. Duplex cover
30. MP paper width guide
31. Main power switch
32. MP support Tray
33. MP (Multi-Purpose) tray
34. Paper conveying cover lever
35. Paper conveying cover
36. Handle
