Kyocera FS-C8600DN - Detaching the Drum Drive Unit MCY

2MN/2N1
1-5-62
Detaching the drum drive unit MCY
6. Remove the left upper cover (see page
1-5-44).
7. Remove the left cover (see page 1-5-
17).

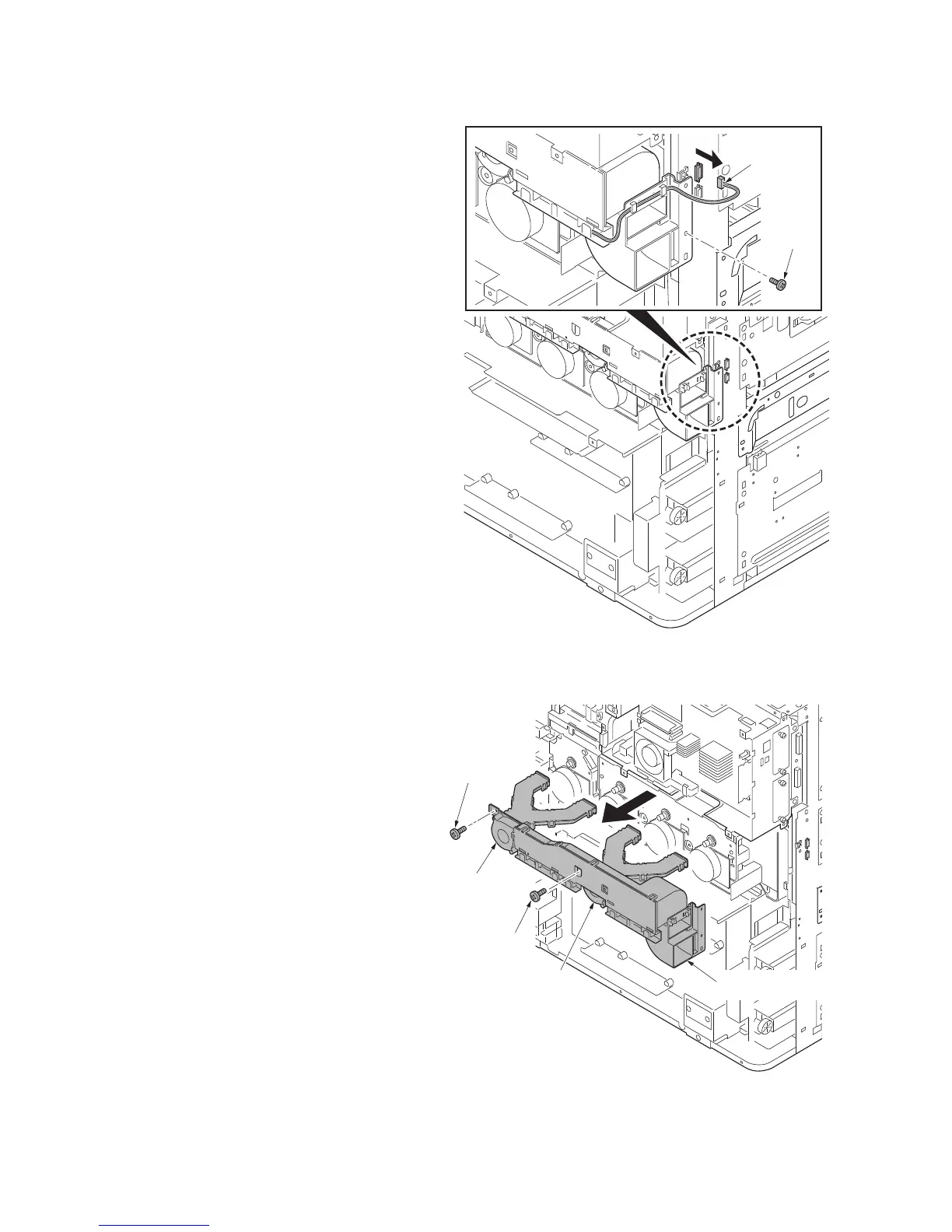

8. Remove the connector.
9. Remove the screw.
Figure 1-5-95
10. Remove as one body the toner unit
duct, the toner fan motor 1 and the
toner fan motor 2.
Figure 1-5-96
Connector
Screw
Screw
Screw
Toner fan motor 1
Toner fan
motor 2
Toner unit duct
