Kyocera FS-C8600DN Service Manual

2MN/2N1-1
1-6-1
1-6 Requi rements on P WB Replacement
1-6-1 Upgrading the firmware
Follow the procedure below to upgrade the firmware of main PWB, engine PWB, fuser IH PWB, motor control
PWB, PDF Resource, optional language, color table and optional devices.
Preparation
Extract the file that has the download firmware and put them in the USB flash device.
Procedure
1. Perform maintenance item U000 (main-
tenance report output) and check U019
ROM version.
2. After confirming the data lamp is turned
off, perform shut-down on the operation
panel, turn power off, and unplug the
power receptacle (see page P.1-2-19).
3. Insert the USB flash device in which the
firmware has been written into a notch
hole of the machine.
4. Turn the main power switch on. Upgrad-
ing firmware starts (blinking the memory
LED).
Caution:
Never turn off the power switch or
remove the USB flash device during
upgrading.
5. [ROM version] is displayed on the touch
panel when upgrading is complete.

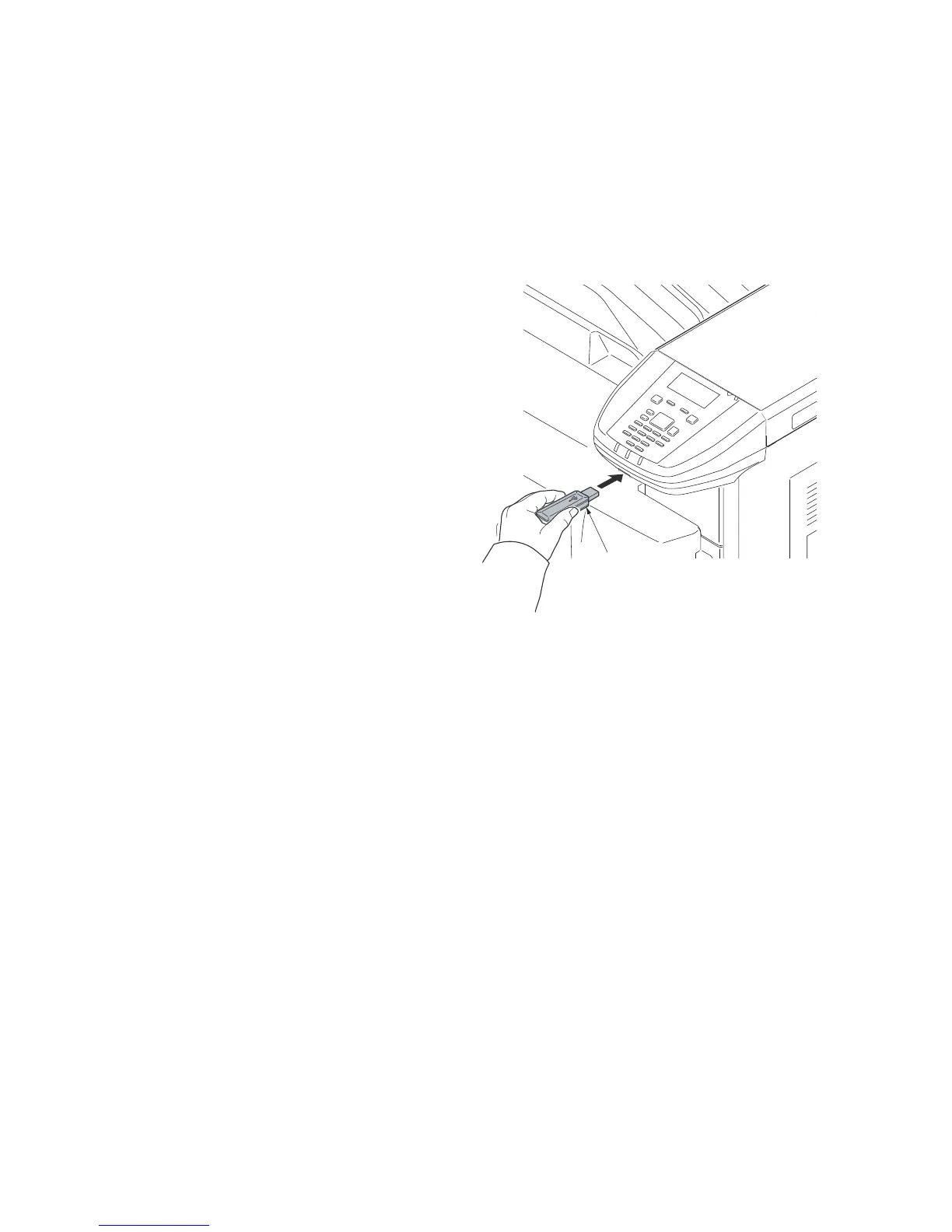

Figure 1-6-1
6. Perform shut-down, and turn the main
power switch to off.
7. Wait for several seconds and then
remove the USB flash device from the
machine.
8. Turn the main power switch on.
9. Perform maintenance item U000 (main-
tenance report output) and check that
U019 ROM version has been upgraded.
USB flash device

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210
