Kyocera FS-C8600DN Service Manual

2MN/2N1-1
1-6-2
1-6-2 Remarks on main PWB replacement

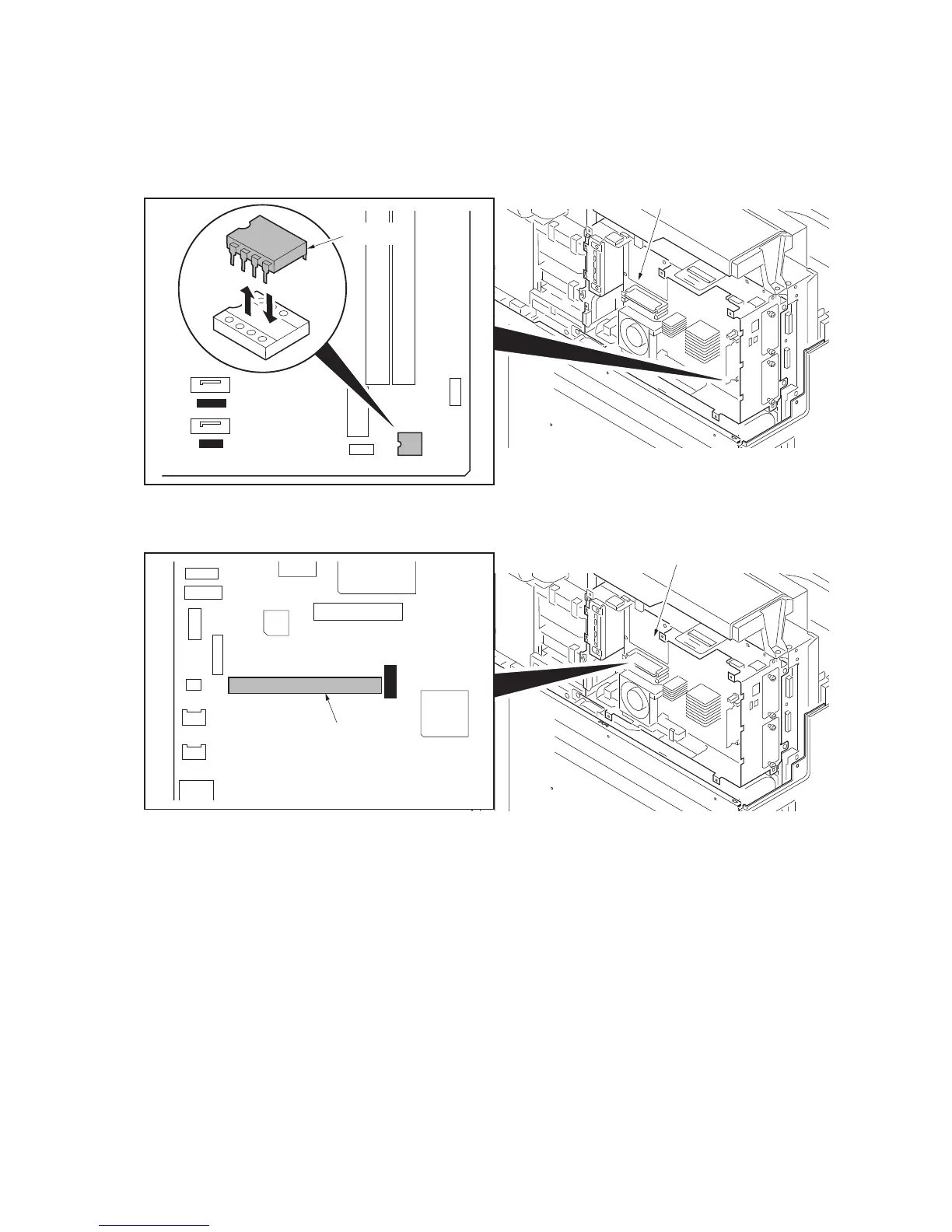

When replacing the main PWB, remove the EEPROM (YC14) and code DIMM (YS4) from the main PWB that
has been removed and then reattach it to the new main PWB.
Figure 1-6-2
When refitting DIMM, check “CODE” marked on the PWB and refit them to the original position.
Figure 1-6-3
If the code DIMM (YS4) was replaced with a service supplied part, perform the following.
1. Insert the USB flash device in which the latest firmware was copied, into the slot on the machine and turn
power on.(see page P.1-6-1)
2. Referring to the U000 maintenance report printed previously, enter the following values.
U278 Setting the delivery date
U952 Maintenance mode workflow
3. Reset machine settings.(Resets system menu settings modified at setup to their defaults.)
Main items for settings
[Date Setting] - Date and time settings.
[User/Job accounting] - Defaults for user authentication and job accounting only.
Resettings are not required as the data are stored in harddisk.
[Network] - Network settings (IP address)
[Adjustment/Maintenance] - Silent Mode setting
YC14
EEPROM
Main PWB
CODE FLS
YS4
DIMM
Main PWB

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
