Kyocera FS-C8600DN Service Manual

2MN/2N1-1
1-3-126
U468 Completion
Press the Back key. The screen for selecting a maintenance item No. is displayed.
U469 Adjusting the color registration
Description
Performs the color registration correction and transfer belt speed correction.
Purpose
To perform when replacing the transfer belt unit or laser scanner unit.
Method
* : Before excuting this mode, the U464 Calib mode must be executed.
1. Press the OK key.
2. Select the item.
3. Press the OK key.
Method: [Manual]
1. Select [Print].
2. Press the OK key. A chart for adjustment is outputted.

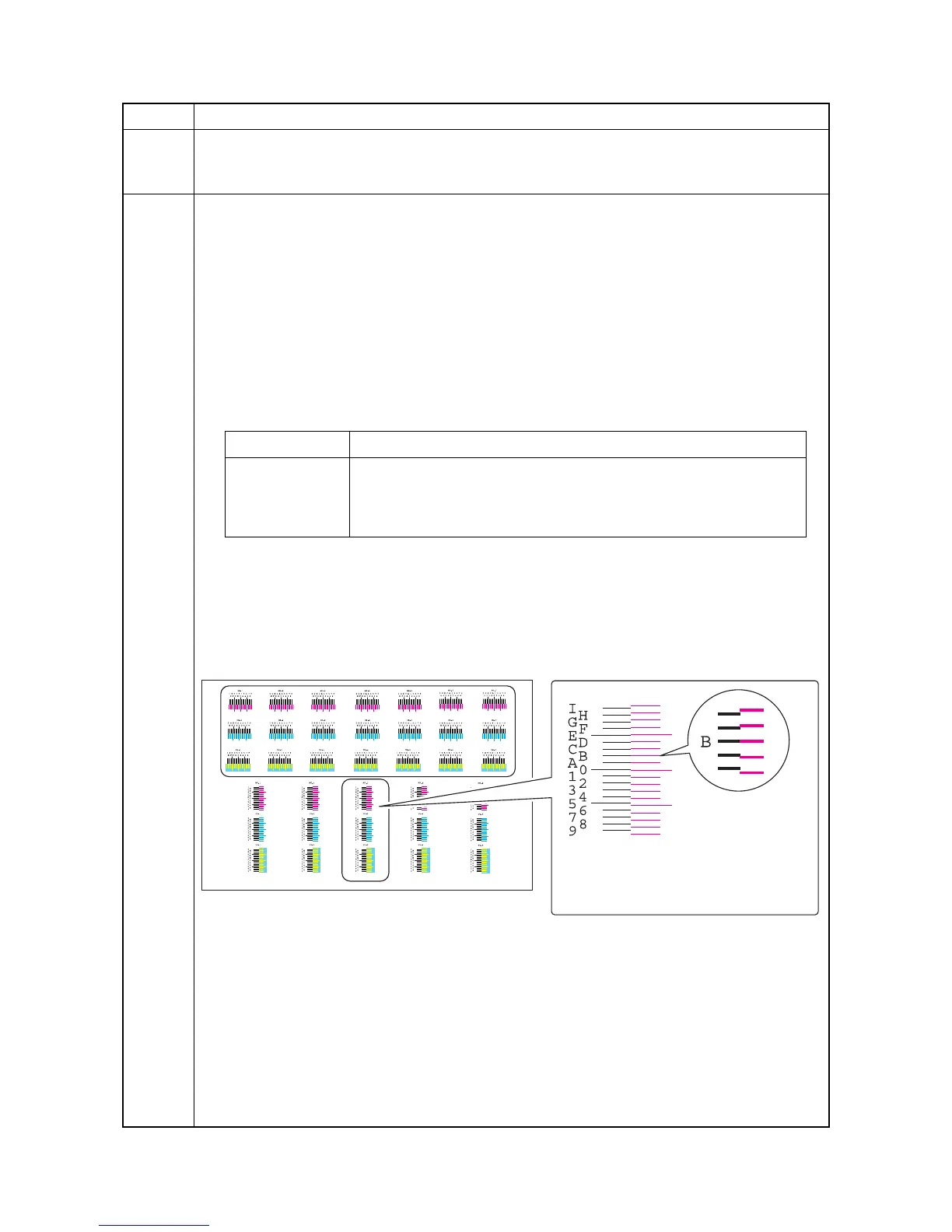

Figure 1-3-14
3. Select [Regist].
4. Read figures at MH-1 to 7/CH-1 to 7/YH-1 to 7 and MV-3/CV-3/YV-3 of the reference chart
and enter the figure marked at the scale which the BK fine line is in line with the M/C/Y fine
lines, using the cursor and 10 keys.
Item No. Description
Display Description
Manual Executing the manual color registration correction
Belt Initialize Executing the transfer belt speed correction
Belt Check Confirmation of transfer belt position
Chart for adjustment
(example)
When a red bar exactly coincides
with B, enter B as a value.

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
