Kyocera FS-C8600DN Service Manual

2MN/2N1
1-5-65

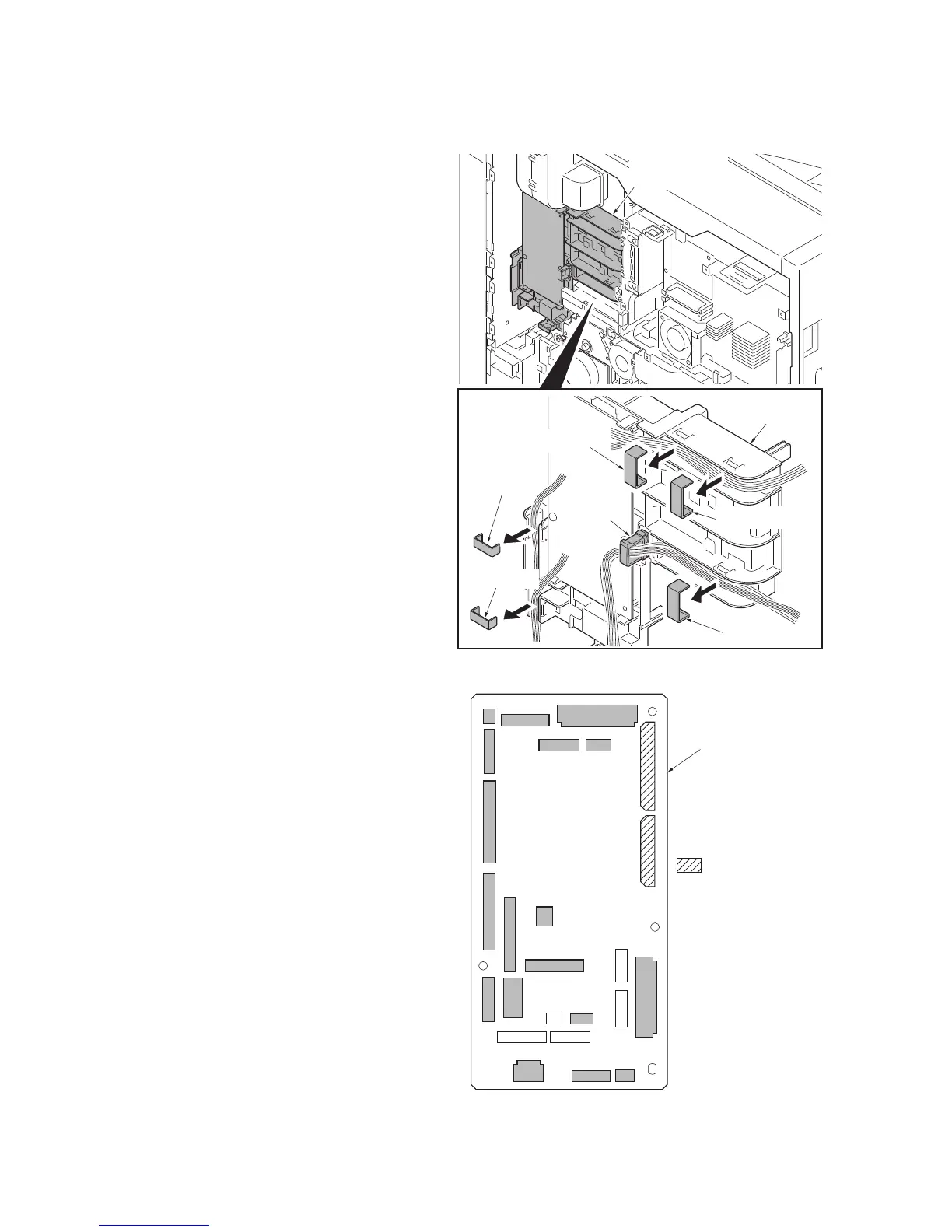

(3) Detaching and refitting the fuser drive unit, transfer drive unit and feed drive unit
Procedure
Detaching the fuser drive unit
1. Remove the rear upper cover and the
rear lower cover (see page 1-5-56).
2. Remove five wire holders of feed PWB
1 assembly.
3. Release the wire saddle.
Figure 1-5-101
4. Remove the following twenty connec-
tors from the feed PWB 1.
YC18, YC19
YC20, YC27
YC26, YC3
YC17, YC14
YC10, YC16
YC13, YC12
YC23, YC25
YC15, YC11
YC5, YC4
YC1 (FFC connector with a lock)
YC2 (FFC connector with a lock)
*: When removing the FFC from the FFC
connector with a lock, remove the FFC
after released by lifting down the lock
lever (see page 1-5-45).
Figure 1-5-102
Wire holder
Wire holder
Wire saddle
Wire holder
Feed PWB 1
assembly
Wire holder
Wire holder
Feed PWB 1
assembly
YC3
YC20
YC27 YC26
YC2YC1
YC5YC11
YC15
YC23
YC16
YC14 YC13
YC10
YC12
YC17
YC18
YC19
YC25
YC4
Feed PWB 1
FFC connector
with a lock

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
