Kyocera FS-C8600DN Service Manual

2MN/2N1
2-1-11
2-1-4 Laser scanner section
The charged surface of the drum is then scanned by the laser beam from the laser scanner unit. The laser
beam is dispersed as the polygon motor (PM) revolves to reflect the laser beam over the drum. Various lenses
and mirror are housed in the laser scanner unit, adjust the diameter of the laser beam, and focalize it at the
drum surface. Also the LSU cleaning motor (LSUCM) is activated to conduct automatically cleaning of the
LSU dust shield glass.

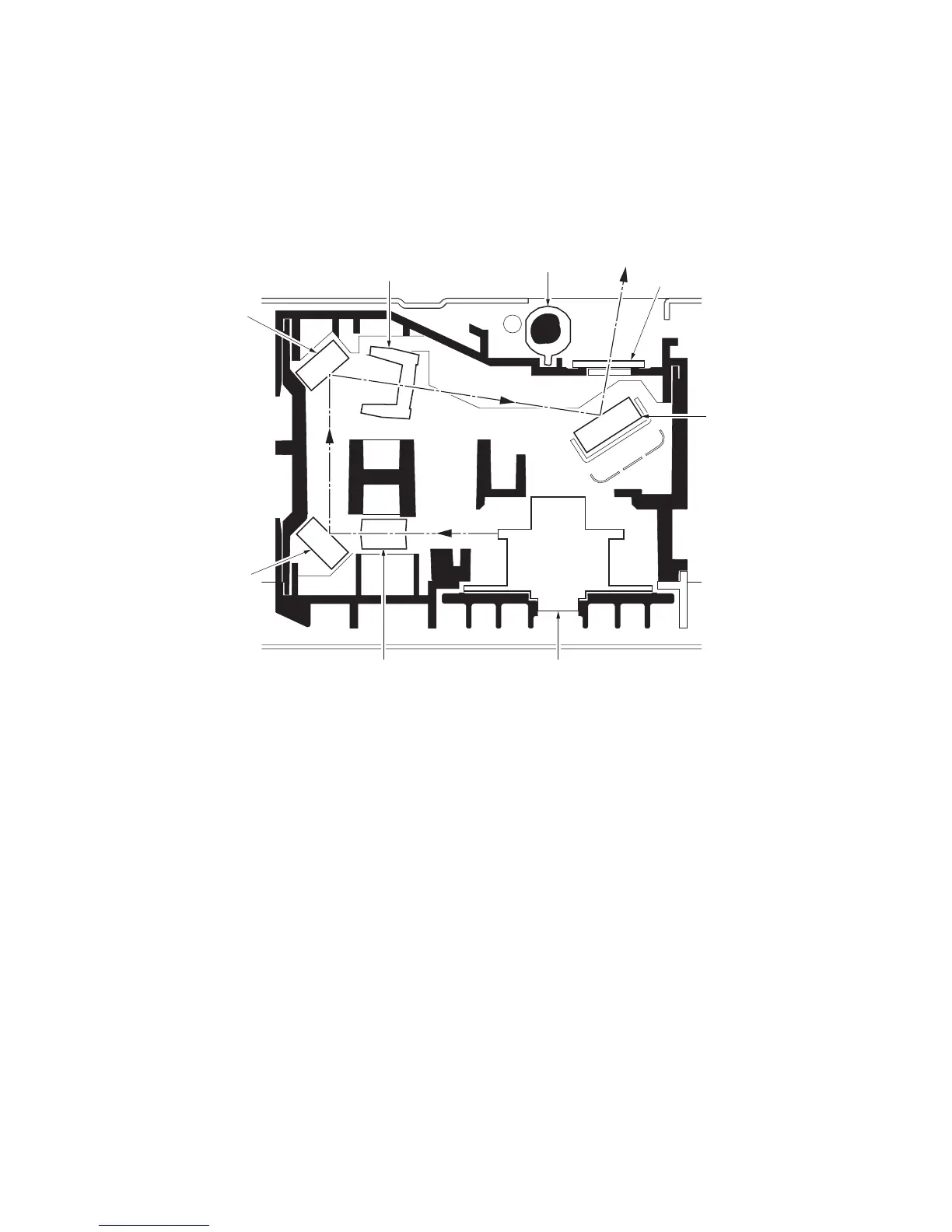

Figure 2-1-11 Laser scanner section
8
6
7
5
12
3
4
1. Polygon motor (PM)
2. f-θ lens A
3. Mirror A
4. Mirror B
5. f-θ lens B
6. Mirror C
7. LSU dust shield glass
8. LSU spiral

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
