Kyocera FS-C8600DN Service Manual

2MN/2N1
1-5-2
(4) How to tell a genuine Kyocera toner container
As a means of brand protection, the Kyocera toner container utilizes an optical security technology to enable
visual validation. A validation viewer is required to accomplish this.
Hold the validation viewer over the left side part of the brand protection seal on the toner container. Through
each window of the validation viewer, the left side part of the seal should be seen as follows:
A black-colored band when seen through the left side window ( )
A shiny or gold-colored band when seen through the right side window ( )
The above will reveal that the toner container is a genuine Kyocera branded toner container, otherwise, it is a
counterfeit.

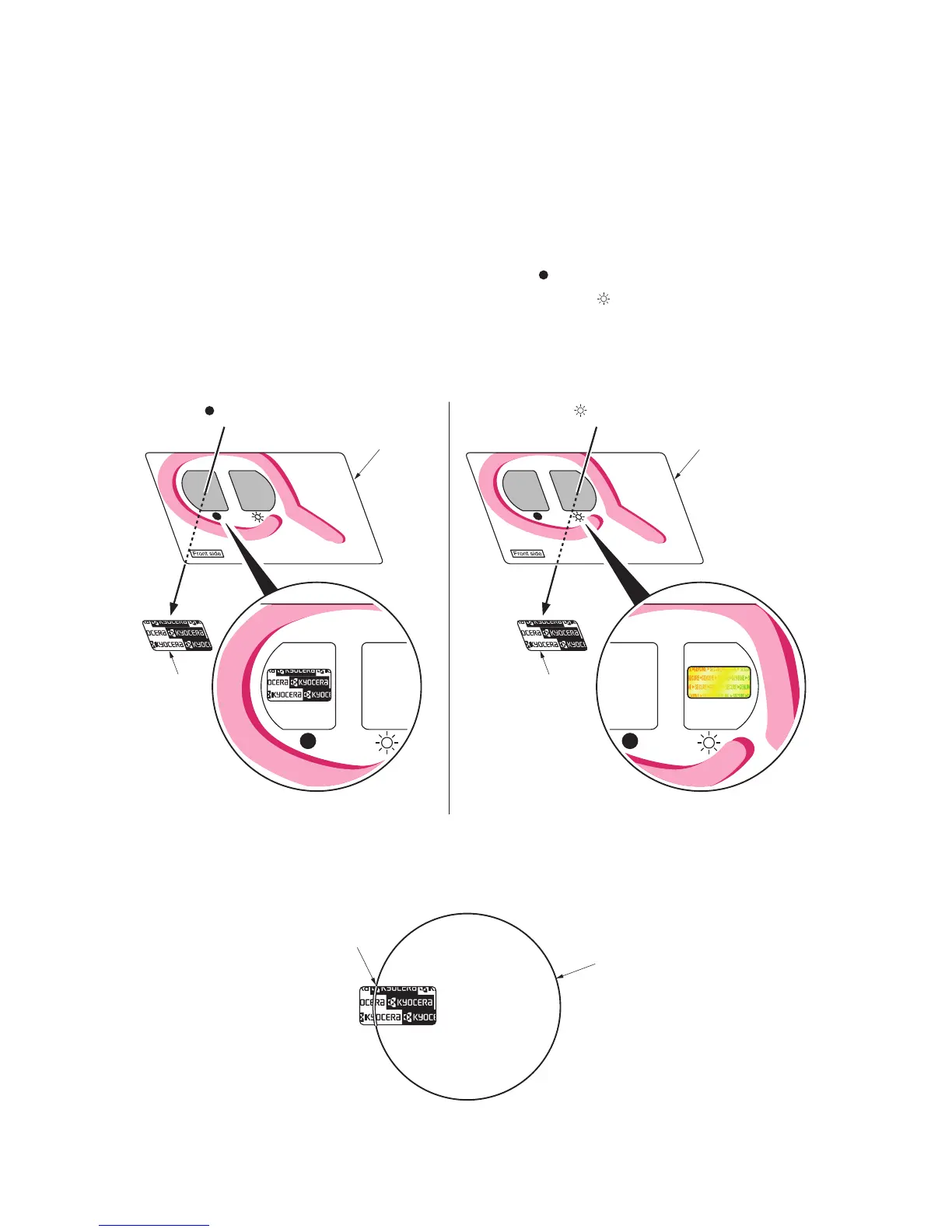

Figure 1-5-1
The brand protection seal has an incision as shown below to prohibit reuse.
Figure 1-5-2
Validation viewerValidation viewer
Brand
protection
seal
Brand
protection
seal
See through the left window
( marking)
See through the right window
( marking)
A shiny or gold-colored band when
seen through the right side window
A black-colored band when
seen through the left side window
Incision
Cut

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
