(6) Detaching and refitting the fuser IH PWB
Procedure
1. Remove seven screws and then
remove the rear upper cover.

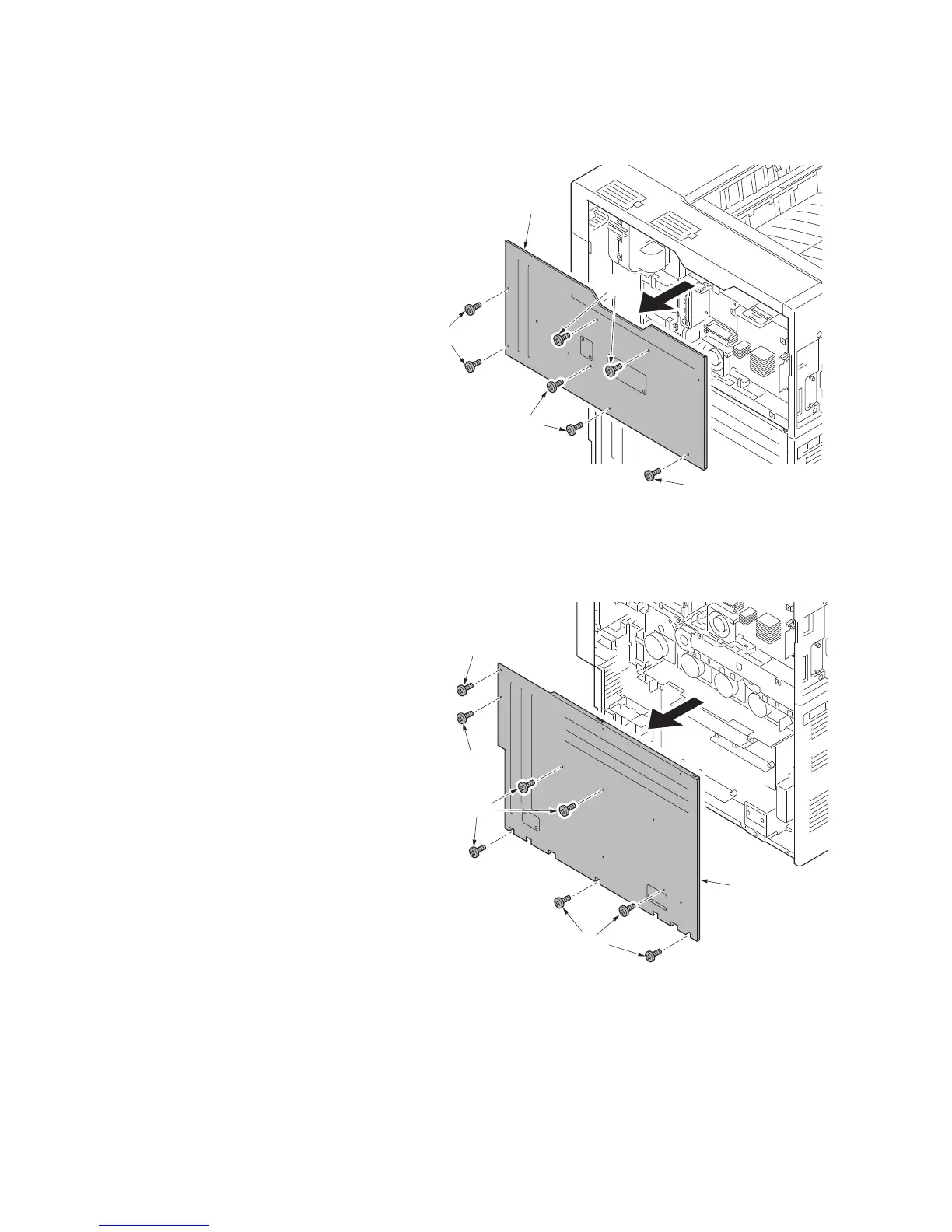

Figure 1-5-84
2. Remove eight screws.
3. Release two hanging parts and then
remove the rear lower cover.
4. Remove the fuser unit (see page 1-5-
40).
Figure 1-5-85
Rear upper cover
Screws
Screws
Screw
Rear lower cover
Screw
Screw
Screws
Screws
