Kyocera FS-C8600DN Service Manual

2MN/2N1
2-2-6
(3) Motors

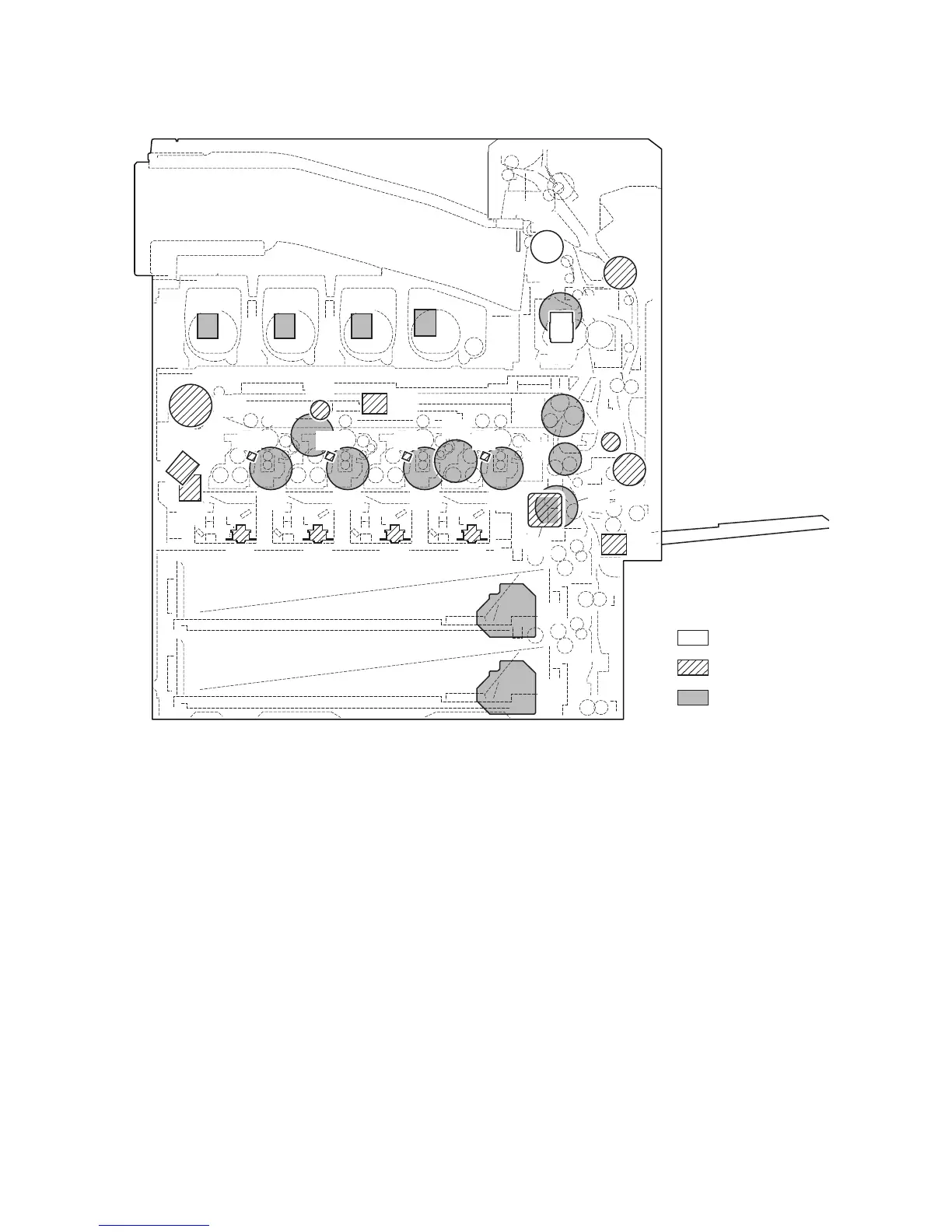

Figure 2-2-3 Motors
1. Paper feed motor (PFM) ....................... Drives the paper feed section.
2. Lift motor 1 (LM1).................................. Operates the bottom plate (cassette 1).
3. Lift motor 2 (LM2).................................. Operates the bottom plate (cassette 2).
4. MP lift motor (MPLM) ............................ Operates the MP plate.
5. Polygon motor K (PM-K) ....................... Drives the polygon mirror K.
6. Polygon motor M (PM-M)...................... Drives the polygon mirror M.
7. Polygon motor C (PM-C)....................... Drives the polygon mirror C.
8. Polygon motor Y (PM-Y) ....................... Drives the polygon mirror Y.
9. Registration motor (RM)........................ Drives the registration section.
10. Middle motor (MM)................................ Drives the paper conveying section.
11. Drum motor K (DRM-K) ........................ Drives the drum unit K.
12. Drum motor M (DRM-M) ....................... Drives the drum unit M.
13. Drum motor C (DRM-C) ........................ Drives the drum unit C.
14. Drum motor Y (DRM-Y) ........................ Drives the drum unit Y.
15. Toner motor K (TM-K) ........................... Replenishes toner to the developer unit K.
16. Toner motor M (TM-M) .......................... Replenishes toner to the developer unit M.
17. Toner motor C (TM-C)........................... Replenishes toner to the developer unit C.
35
15
1617
29
14 13 12
19
20
11
21222324
36
9
4
5
10
1
678
18
28
30
2
3
25
26
32
27
31
34
33
Machine inside
Machine front
Machine rear

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
