Kyocera FS-C8600DN Service Manual

2MN/2N1
1-5-51

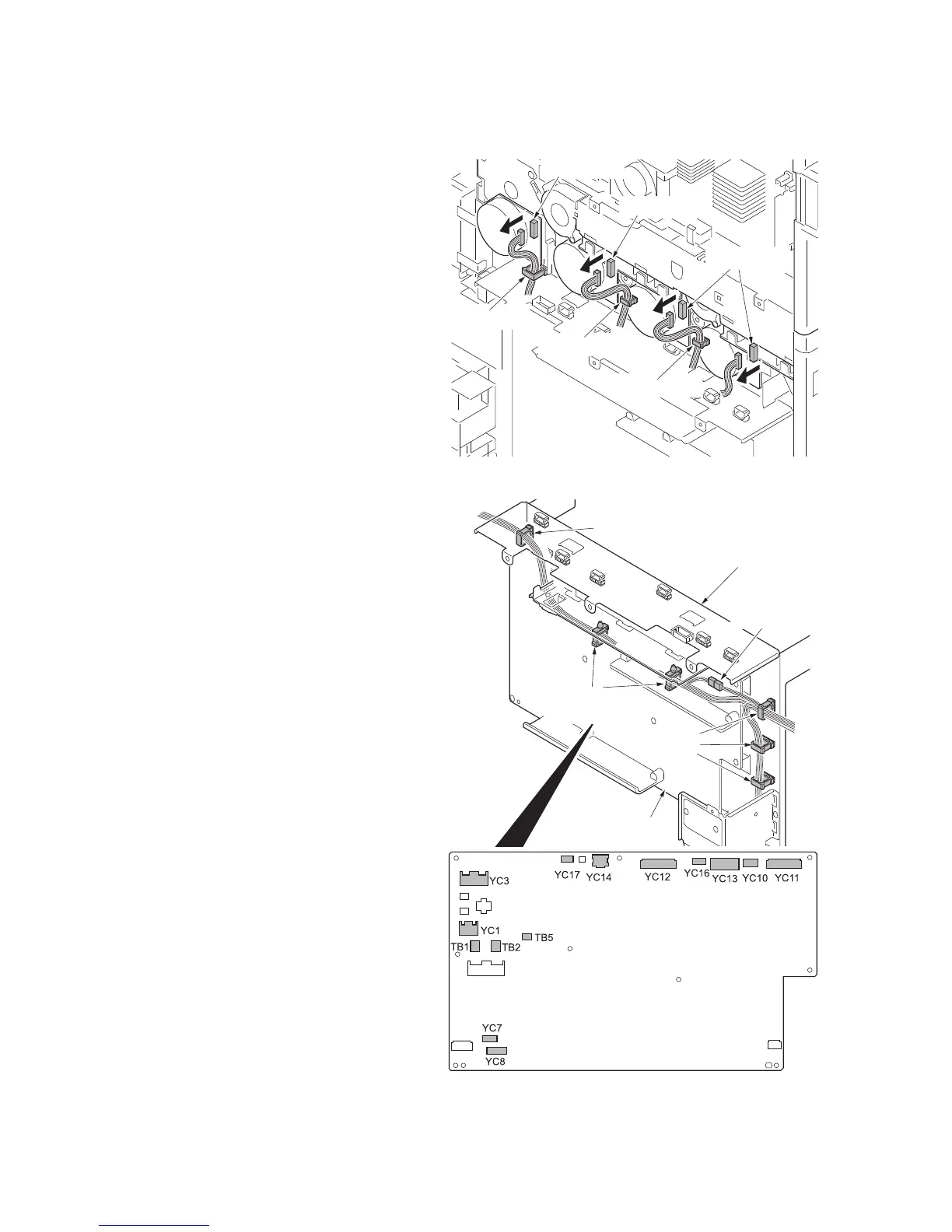

(3) Detaching and refitting the power source PWB
Procedure
1. Remove the rear lower cover (see page
1-5-56).
2. Release three wire saddles.
3. Remove four connectors.
Figure 1-5-75
4. Release six wire saddles.
5. Remove the following eleven connec-
tors and three tabs from the power
source PWB.
YC3
YC1
TB1
TB2
TB5
YC7
YC8
YC17
YC14
YC12
YC16
YC13
YC10
YC11
6. Remove 2-pin relay connector.
Figure 1-5-76
Wire saddle
Wire saddle
Waire saddle
Connector
Connector
Connectors
Wire saddles
Wire saddles
Power source PWB
2-pin relay
connector
Power source
assembly
Wire saddle
Power source PWB

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
