Kyocera FS-C8600DN - PWBs (Printed Wiring Boards)

2MN/2N1-1
1-5-44
1-5-7 PWBs

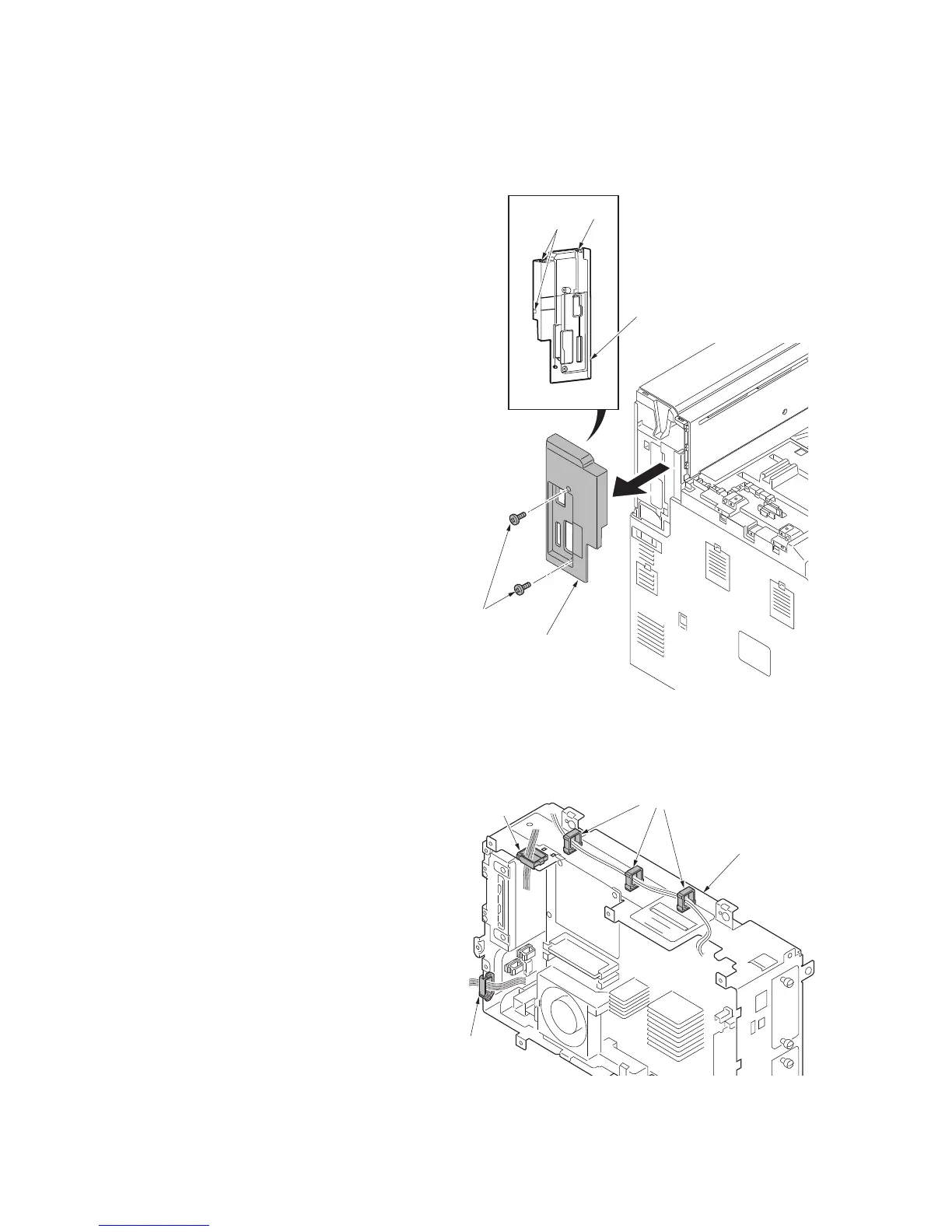

(1) Detaching and refitting the main PWB
Procedure
1. Remove two screws.
2. Unhook three hooks and then remove
the left upper cover.
3. Remove the rear upper cover (see page
1-5-56).
Figure 1-5-65
4. Release five wire saddles on the con-
troller box.
Figure 1-5-66
Hook
Hooks
Left upper cover
Left upper cover
Screws
Controller box
Wire saddles
Wire saddles
Wire saddle
