Kyocera FS-C8600DN Service Manual

2MN/2N1
1-4-87

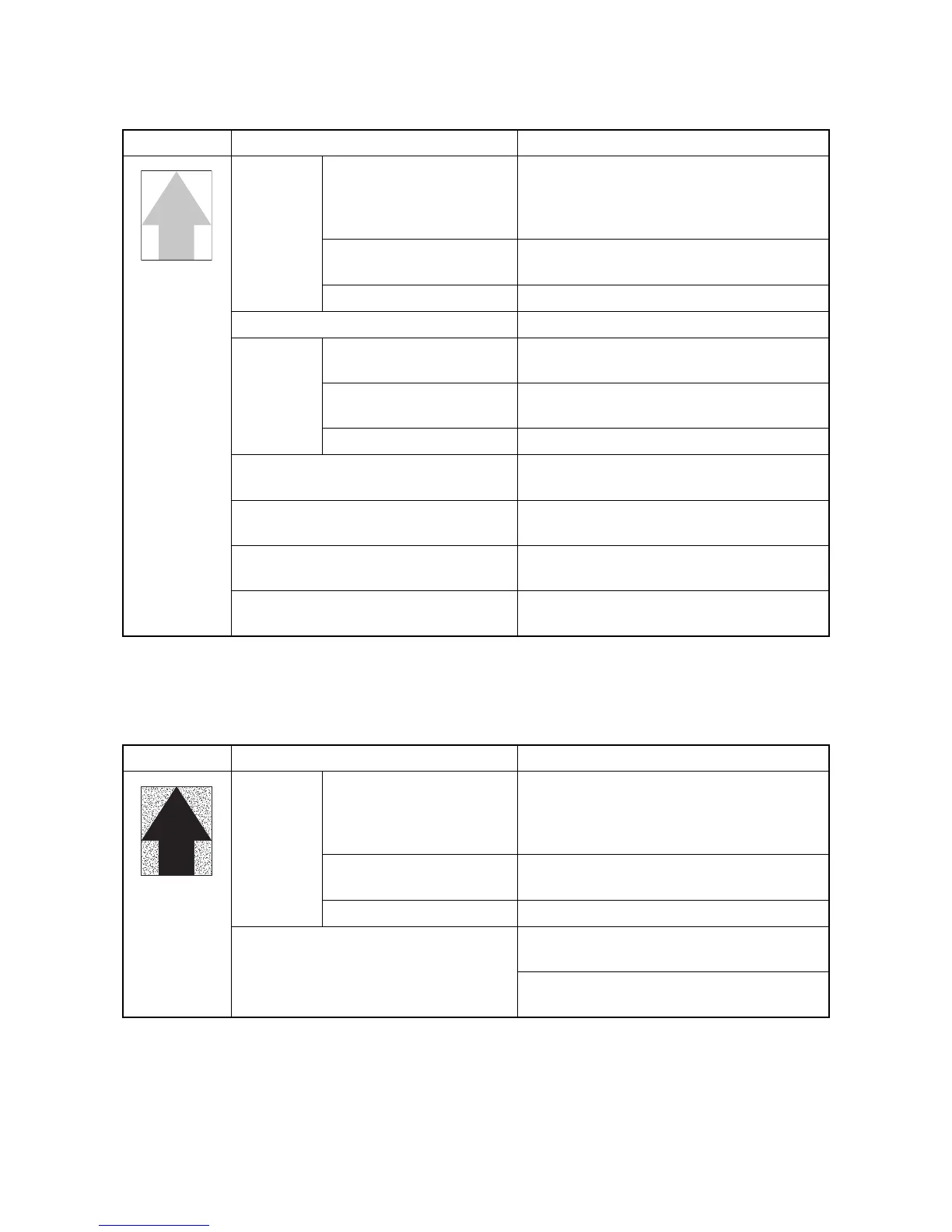

(3) Image is too light.
(4) The background is colored.
Print example Causes Check procedures/corrective measures
Defective
developer
bias output.
Defective developer unit. Run maintenance mode U089 to output four-
color bar PG, check the output status of the
four colors, and replace the developer unit for
any faulty color (see page 1-5-29).
Defective high voltage PWB
1.
Replace the high voltage PWB 1
(see page 1-5-54).
Defective engine PWB. Replace the engine PWB (see page 1-5-49).
Dirty drum unit. Perform the drum refresh.
Defective
transfer
bias output.
Defective high voltage PWB
2.
Replace the high voltage PWB 2
(see page 1-5-55).
Defective transfer belt unit. Replace the transfer belt unit (see page 1-5-
34).
Defective engine PWB. Replace the engine PWB (see page 1-5-49).
Defective color calibration. Perform the tone curve adjustment (Refer to
operation guide).
Insufficient toner. If the display shows the message requesting
toner replenishment, replace the container.
Insufficient agitation of toner container. Shake the toner container vertically approxi-
mately 10 times.
Paper damp. Check the paper storage conditions, replace
the paper.
Print example Causes Check procedures/corrective measures
Defective
developer
bias output.
Defective developer unit. Run maintenance mode U089 to output four-
color bar PG, check the output status of the
four colors, and replace the developer unit for
any faulty color (see page 1-5-29).
Defective high voltage PWB
1.
Replace the high voltage PWB 1
(see page 1-5-54).
Defective engine PWB. Replace the engine PWB (see page 1-5-49).
Defective color calibration. Perform the calibration (Refer to operation
guide).
Perform the tone curve adjustment (Refer to
operation guide).

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
