Detaching the feed drive unit

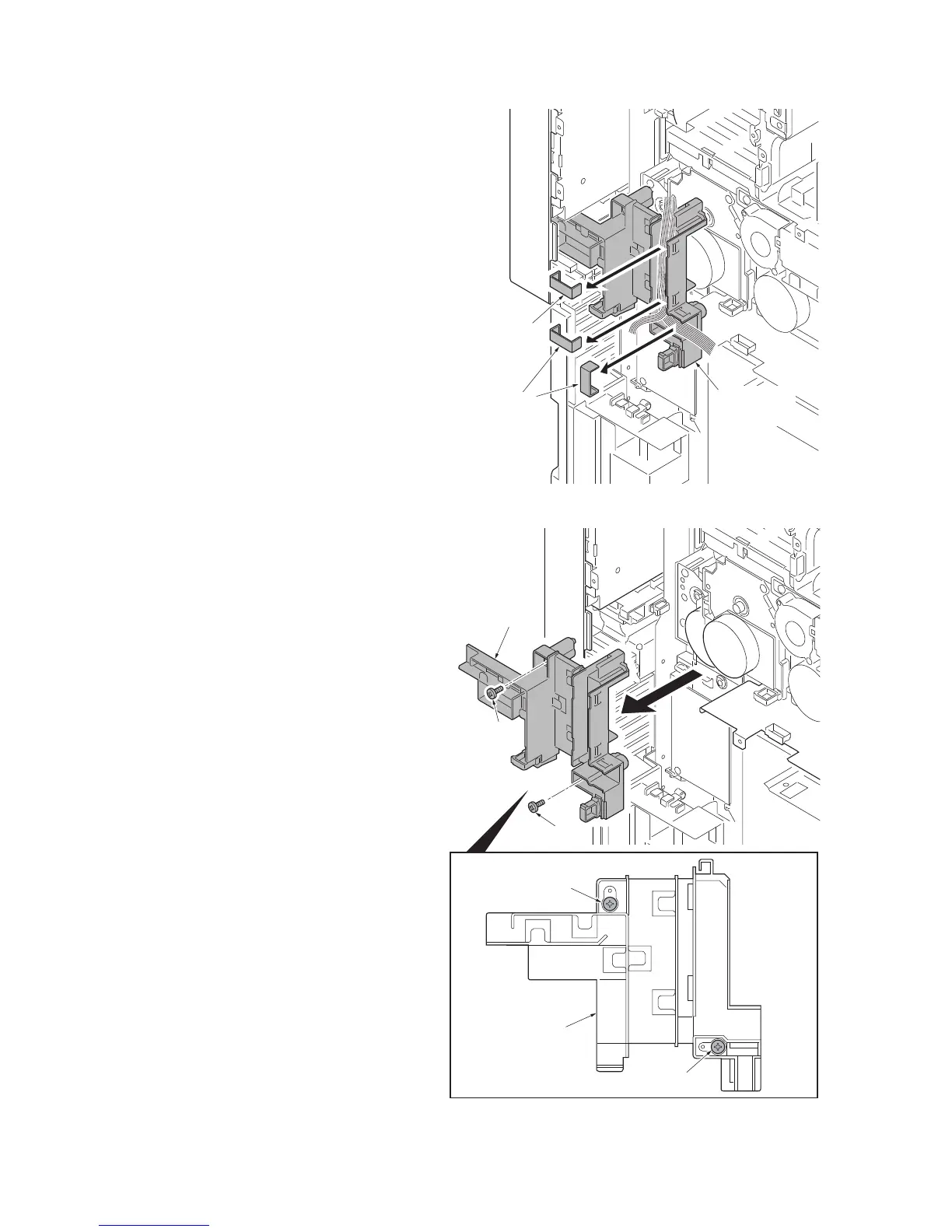

16. Remove three wire holders from the
feed 2 FFC guide.
Figure 1-5-107
17. Remove two screws and then remove
the feed 2 FFC guide.
Figure 1-5-108
Wire holder
Wire holders
Feed 2
FFC guide
Feed 2
FFC guide
Screw
Screw
Feed 2
FFC guide
Screw
Screw
