2MN/2N1
1-5-69

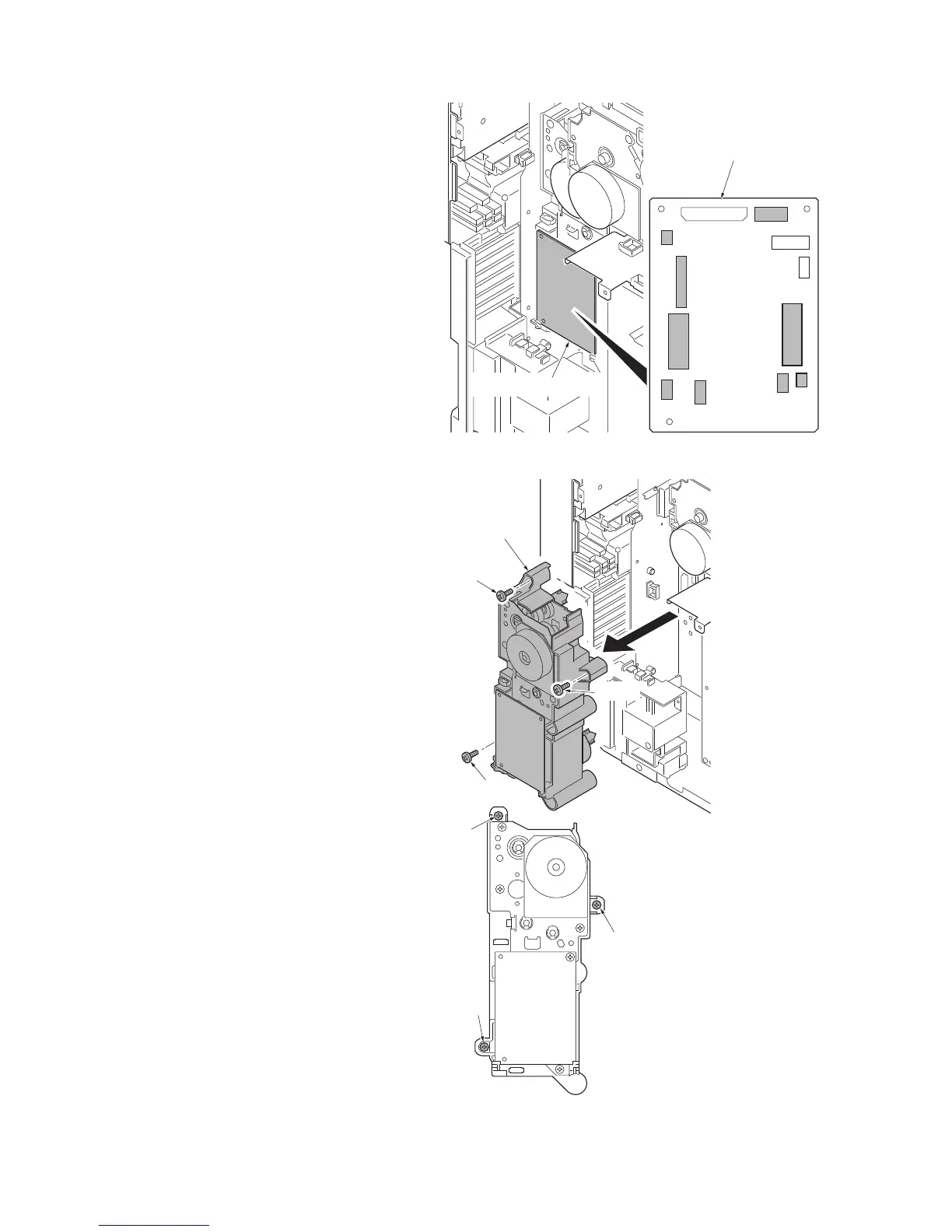

18. Remove the following nine connectors
from the feed PWB 2.
YC10
YC11
YC7
YC8
YC3
YC5
YC6
YC13
YC12
Figure 1-5-109
19. Remove three screws.
20. Remove the feed drive unit.
Figure 1-5-110
YC11
YC7
YC8
YC5
YC6
YC10
YC3
YC12
YC13
Feed PWB 2
Feed PWB 2
Feed drive unit
Screw
Screw
Screw
Screw
Screw
Screw
