Kyocera FS-C8600DN - Detaching and Refitting the MP Tray Paper Feed Unit

2MN/2N1-1
1-5-8
(3) Detaching and refitting the MP tray paper feed unit
Procedure
1. Pull the paper conveying unit out.
2. Remove screw.
3. Unhook two hooks and then remove the
right cover.
4. Remove the right front cover.
(see page 1-5-32)
5. Remove two screws and then remove
the right middle cover.

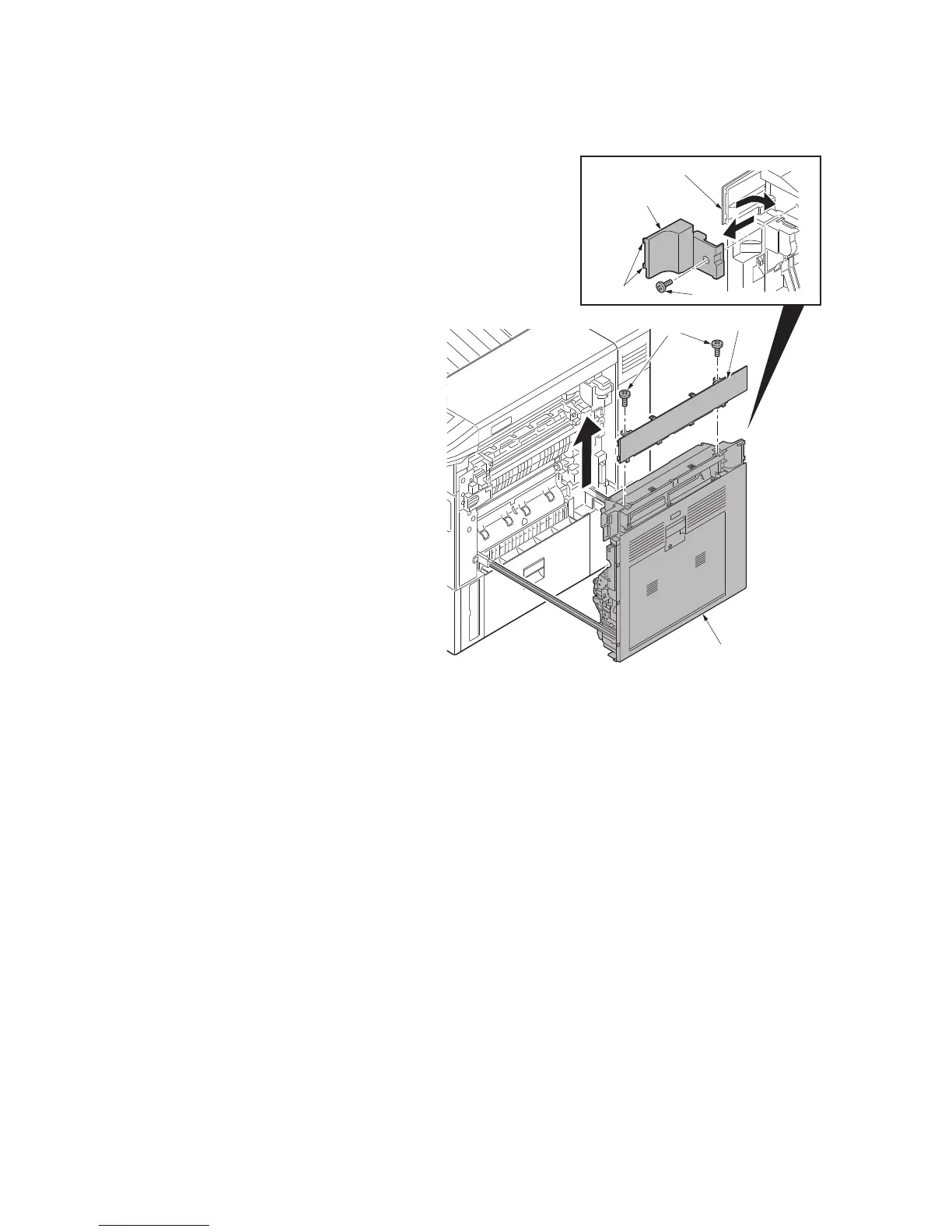

Figure 1-5-11
Screws
Right middle
cover
Screw
Right middle cover
Paper conveying unit
Hooks
Conveying rear
cover
