Kyocera FS-C8600DN - Page 327

2MN/2N1
1-5-9

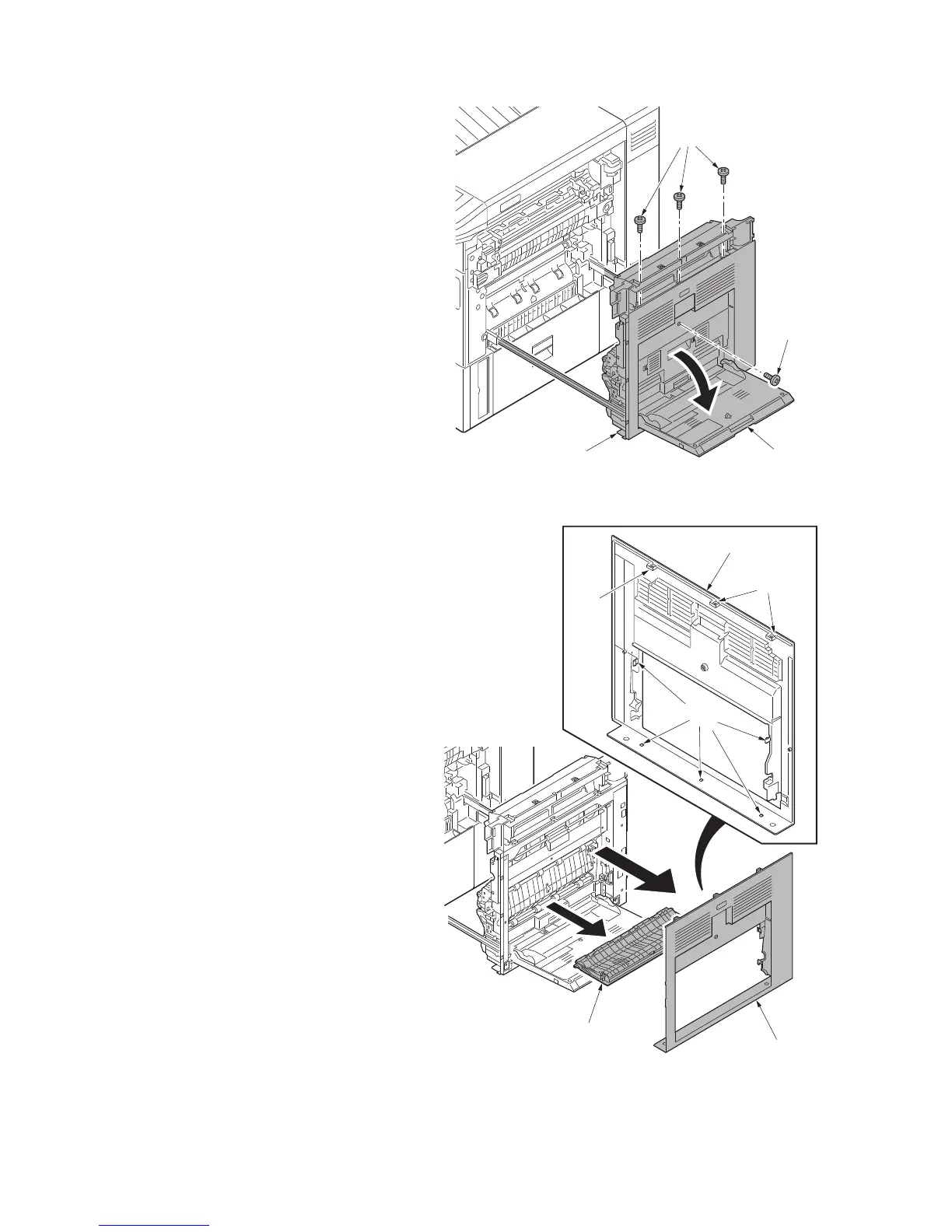

6. Open the MP tray.
7. Remove four screws.
Figure 1-5-12
8. Unhook eight hooks and then remove
the right cover and DU cover assembly.
Figure 1-5-13
Screw
MP tray
Screw
Paper
conveying unit
Right cover
DU cover
assembly
Right cover
Hooks
Hook
Hooks
