Kyocera FS-C8600DN Service Manual

2MN/2N1-1
1-4-91

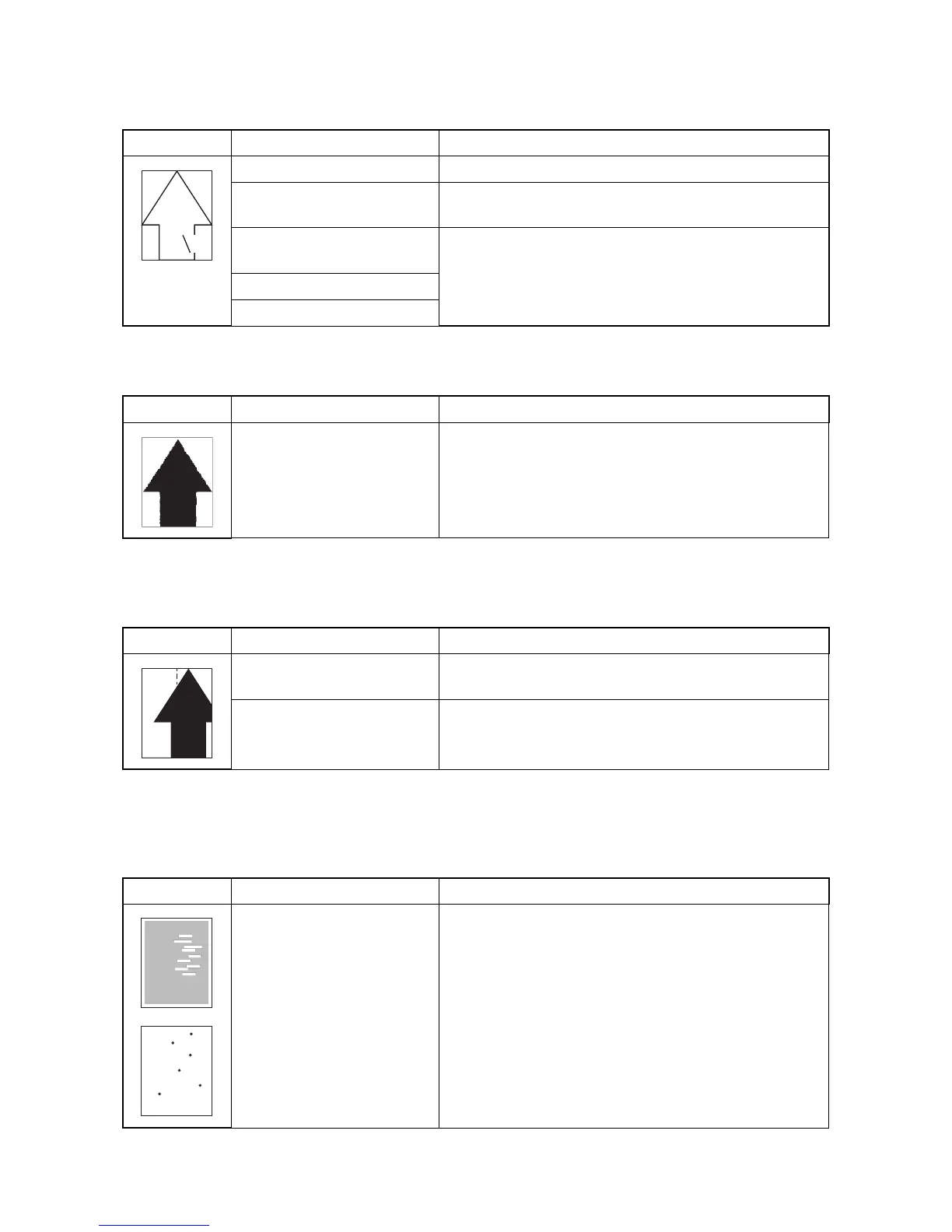

(15) Fusing is loose.
(16) Image is out of focus.
(17) Image center does not align with the original center.
(18) Unevenly repeating horizontal streaks in the printed objects. Colored spots in
the printed objects.
Print example Causes Check procedures/corrective measures
Wrong types of paper. Check if the paper meets specifications, replace paper.
Faulty media type settings. Verify the media type accords with the weight of the paper
used.
Flawed heat roller or press
roller.
Replace the fuser unit (see page 1-5-40).
Defective pressure springs.
Defective fuser IH.
Print example Causes Check procedures/corrective measures
Drum condensation. Perform the drum refresh (Refer to operation guide).
Print example Causes Check procedures/corrective measures
Misadjusted image center
line.
Run maintenance item U034 to readjust the center line of
image printing (see page 1-3-32).
Paper is not placed correctly. Place the paper correctly.
Print example Causes Check procedures/corrective measures
The device is installed in an
altitude greater than 1500 m
sea level.
Run maintenance mode U140 and run calibration in high
altitude mode (see page 1-3-73).

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
