Kyocera FS-C8600DN - Page 370

2MN/2N1
1-5-52

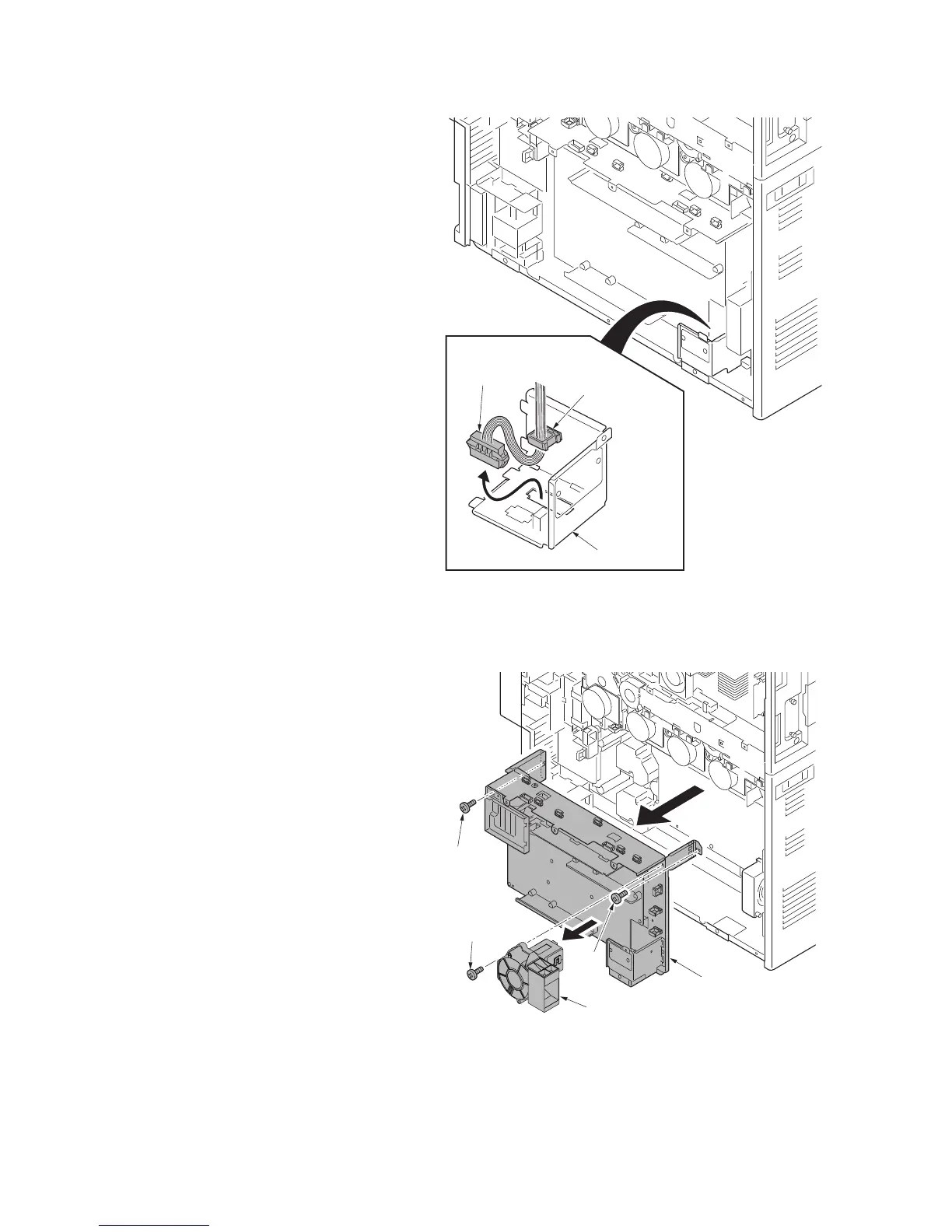

7. Release the wire saddle.
8. Remove the connector from the coin
vender plate.
Figure 1-5-77
9. Remove screw.
10. Remove cooling duct1.
11. Remove two screws.
12. Remove the power source assembly.
Figure 1-5-78
Wire saddle
Connctor
Coin vender
plate
Screw
Screw
Screw
Cooling duct1
Power source
assembly
